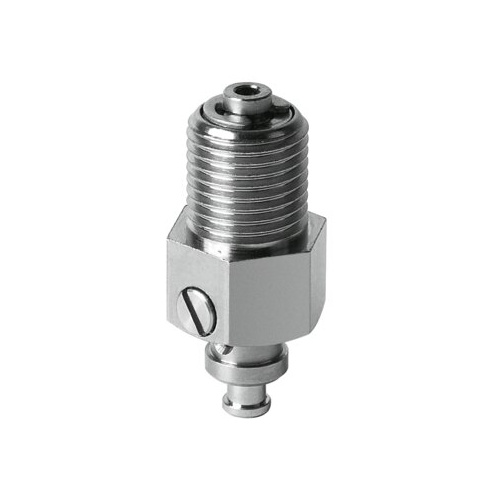

Holder for suction cup with connection ESH-HF-2-M10X1

189261

GTIN: 4052568078584

Technical Data Holder for suction cup with connection ESH-HF-2-M10X1

  • Height compensator for suction-cup holder2.6 mm
  • Nominal size2 mm
  • Volume0.09 cm³
  • Mounting positionVertical
  • DesignVacuum port on top With height compensator
  • Correlation to suction-cup holderSize 2
  • Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-A1-L
  • Ambient temperature-10 °C ... 60 °C
  • Product weight14 g
  • Type of mountingWith male thread Via vacuum port
  • Suction cup mountingDiameter 4 mm
  • Vacuum connectionM10x1
  • Note on materialsRoHS compliant
  • Material sealsNBR POM
  • Material retaining bracketTempered steel







SKU 189261
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
