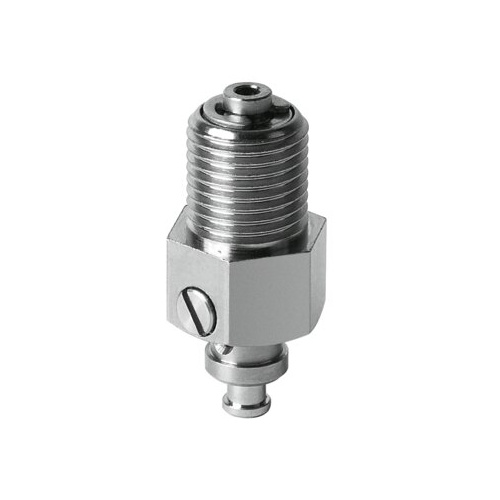

Holder for suction cup with connection ESH-HF-3-M14X1

189262

GTIN: 4052568078591

Technical Data Holder for suction cup with connection ESH-HF-3-M14X1

  • Height compensator for suction-cup holder6 mm
  • Nominal size3.3 mm
  • Volume0.4 cm³
  • Mounting positionVertical
  • DesignVacuum port on top With height compensator
  • Correlation to suction-cup holderSize 3
  • Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-A1-L
  • Ambient temperature-10 °C ... 60 °C
  • Product weight54 g
  • Type of mountingWith male thread Via vacuum port
  • Suction cup mountingM4
  • Vacuum connectionM14x1
  • Note on materialsRoHS compliant
  • Material sealsNBR POM
  • Material retaining bracketTempered steel







SKU 189262
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
