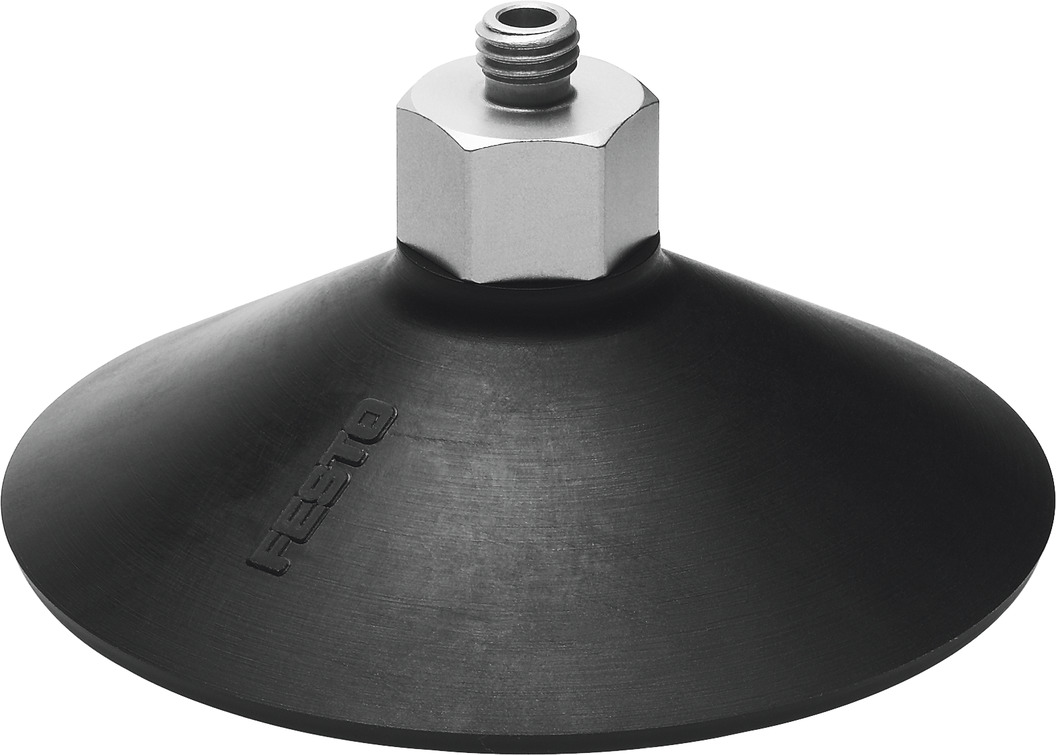

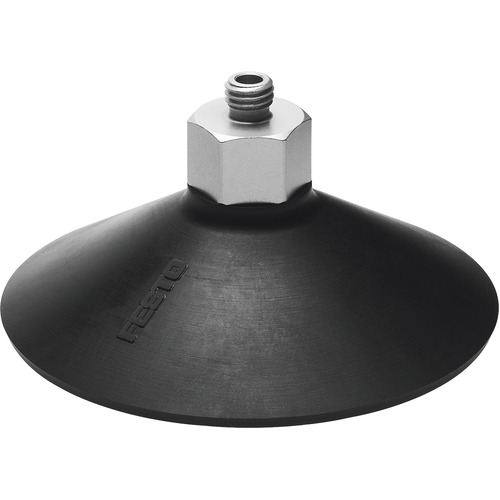

Suction cup complete (x10 pack)

ESS-100-GT-G1/4

525988

Suction cup diameter
100 mm
Suction cup shape
Round deep
Design
Round, bell-shaped
Material suction cup
Vulkollan

GTIN: 4052568083199

Technical Data

  • Height compensator for suction-cup holder9 mm
  • Min. workpiece radius135 mm
  • Nominal size5.5 mm
  • Suction cup diameter100 mm
  • Suction cup volume53.9 cm³
  • Mounting positionoptional
  • DesignRound, bell-shaped

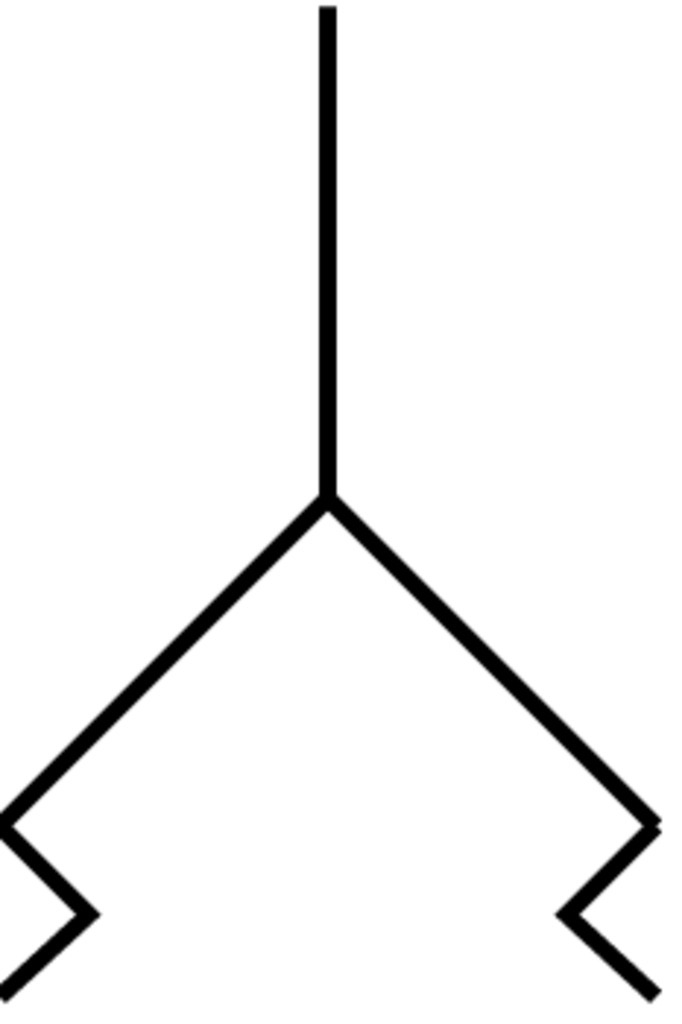

  • Symbol00991485
  • Suction cup shapeRound deep
  • Operating pressure-0.95 bar ... 0 bar
  • Nominal operating pressure-0.7 bar
  • Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-A1-L
  • Ambient temperature-10 °C ... 80 °C
  • Breakaway force at 70% vacuum297 N
  • Holding force at nominal operating pressure375 N
  • Max. tightening torque for mounting thread11 Nm
  • Lateral force at nominal operating pressure183 N
  • Product weight87.5 g
  • Type of mountingVia vacuum port
  • Vacuum connectionG1/4
  • ColourRed-brown
  • Shore hardness72 +/- 5
  • Material screwed plugWrought aluminium alloy
  • Note on materialsRoHS-compliant
  • Material suction cupVulkollan

Downloads

ESS-ESV_EN.PDF

Technical data

Links

Spare parts



Suction cup diameter 100 mm

Suction cup shape Round deep

Design Round, bell-shaped

Material suction cup Vulkollan

Suction cup complete

SKU 525988
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
