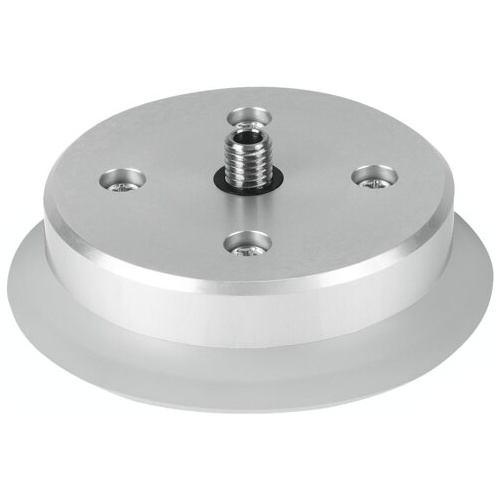

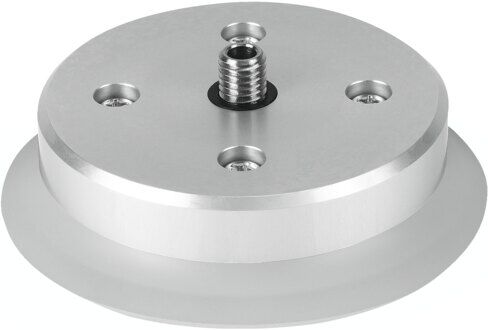

Suction cup with connectionESS-150-SS

189328

GTIN: 4052568149857

Suction cup diameter
150 mm
Suction cup shape
Round, flat
Material suction cup
VMQ (silicone)



Technical Data Suction cup with connection ESS-150-SS

  • Min. workpiece radius480 mm
  • Nominal size10 mm
  • Suction cup diameter150 mm
  • Suction cup volume173.826 cm³
  • Position of connectionOn top
  • Mounting positionAny
  • Symbol00991485
  • Correlation to suction-cup holderSize 6
  • Suction cup shapeRound, flat
  • Operating pressure-0.095 MPa ... 0 MPa
  • Operating pressure-0.95 bar ... 0 bar
  • Operating pressure-13.775 psi ... 0 psi
  • Nominal operating pressure-0.07 MPa
  • Nominal operating pressure-0.7 bar
  • Nominal operating pressure-10.15 psi
  • Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364 zone III
  • Suitable for use with foodSee supplementary material information
  • Ambient temperature-30 °C ... 180 °C
  • Holding force at nominal operating pressure900 N
  • Lateral force at nominal operating pressure400 N
  • Product weight719 g
  • Type of mountingVia vacuum port
  • Vacuum connectionM20x2
  • ColourTransparent
  • Shore hardness50 +/-5
  • Material screwed plugNBR Nickel-plated steel Steel, galvanised and chrome-plated
  • Note on materialsRoHS compliant
  • Material suction cupVMQ (silicone)
SKU 189328
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
