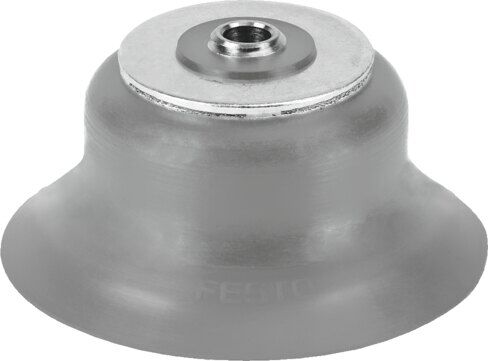

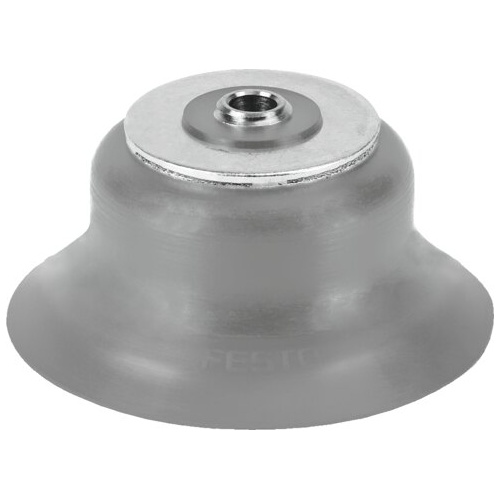

Suction cup with connectionESS-50-EF

189353

GTIN: 4052568078768

Suction cup diameter
50 mm
Suction cup shape
Round extra deep
Material suction cup
Fluoro rubber





Technical Data Suction cup with connection ESS-50-EF

  • Min. workpiece radius100 mm
  • Nominal size3 mm
  • Suction cup diameter50 mm
  • Suction cup volume7.9 cm³
  • Position of connectionOn top
  • Mounting positionAny
  • Symbol00991485
  • Correlation to suction-cup holderSize 4
  • Suction cup shapeRound extra deep
  • Operating pressure-0.095 MPa ... 0 MPa
  • Operating pressure-0.95 bar ... 0 bar
  • Operating pressure-13.775 psi ... 0 psi
  • Nominal operating pressure-0.07 MPa
  • Nominal operating pressure-0.7 bar
  • Nominal operating pressure-10.15 psi
  • Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-A1-L
  • Suitable for use with foodSee supplementary material information
  • Ambient temperature-10 °C ... 200 °C
  • Holding force at nominal operating pressure103.6 N
  • Lateral force at nominal operating pressure60 N
  • Product weight23.4 g
  • Type of mountingVia vacuum port
  • Vacuum connectionM6
  • ColourGrey
  • Shore hardness60 +/-5
  • Material screwed plugNickel-plated wrought aluminium alloy Nickel-plated brass Steel, galvanised and chrome-plated
  • Note on materialsRoHS compliant
  • Material suction cupFluoro rubber
SKU 189353
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
