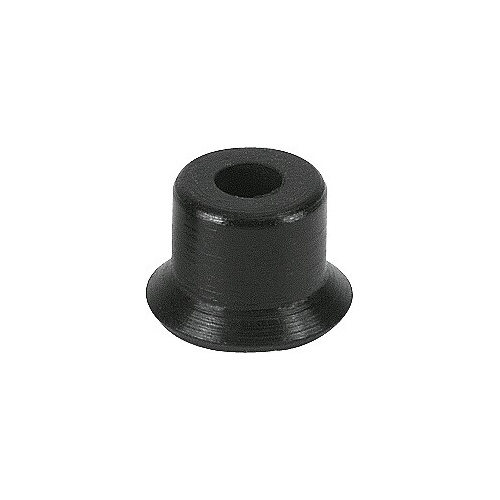

Suction cup with connection ESS-8-SN

189279

GTIN: 4052568041960

Suction cup diameter
8 mm
Suction cup shape
Round, flat
Material suction cup
NBR

Technical Data Suction cup with connection ESS-8-SN

  • Min. workpiece radius20 mm
  • Nominal size2 mm
  • Suction cup diameter8 mm
  • Suction cup volume0.03 cm³
  • Suitable for ejector pulse≤4 bar
  • Position of connectionOn top
  • Mounting positionAny
  • Symbol00991485
  • Correlation to suction-cup holderSize 2
  • Suction cup shapeRound, flat
  • Operating pressure-0.095 MPa ... 0 MPa
  • Operating pressure-0.95 bar ... 0 bar
  • Operating pressure-13.775 psi ... 0 psi
  • Nominal operating pressure-0.07 MPa
  • Nominal operating pressure-0.7 bar
  • Nominal operating pressure-10.15 psi
  • Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-A1-L
  • Suitable for use with foodSee supplementary material information
  • Ambient temperature-10 °C ... 70 °C
  • Holding force at nominal operating pressure2.3 N
  • Lateral force at nominal operating pressure9.5 N
  • Product weight0.2 g
  • Type of mountingVia vacuum port
  • Vacuum connectionI.D. 4 mm
  • ColourBlack
  • Shore hardness50 +/-5
  • Material screwed plugNickel-plated brass
  • Note on materialsRoHS compliant
  • Material suction cupNBR





SKU 189279
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
