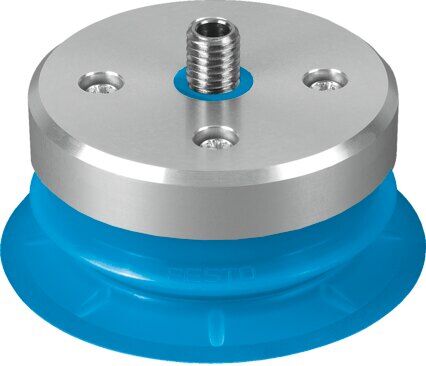

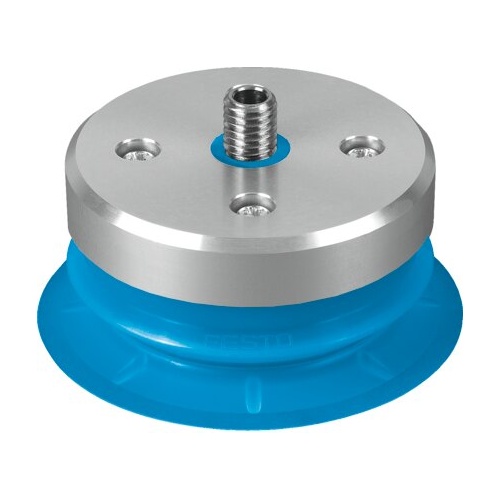

Suction cup with connectionESS-80-BU

189395

GTIN: 4052568078836

Suction cup diameter
80 mm
Suction cup shape
Round protective bellows 1.5-fold
Material suction cup
PUR



Technical Data Suction cup with connection ESS-80-BU

  • Height compensator for suction cup10 mm
  • Min. workpiece radius430 mm
  • Nominal size6 mm
  • Suction cup diameter80 mm
  • Suction cup volume63.9 cm³
  • Position of connectionOn top
  • Mounting positionAny
  • Symbol00991485
  • Correlation to suction-cup holderSize 5
  • Suction cup shapeRound protective bellows 1.5-fold
  • Operating pressure-0.095 MPa ... 0 MPa
  • Operating pressure-0.95 bar ... 0 bar
  • Operating pressure-13.775 psi ... 0 psi
  • Nominal operating pressure-0.07 MPa
  • Nominal operating pressure-0.7 bar
  • Nominal operating pressure-10.15 psi
  • Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364 zone III
  • Suitable for use with foodSee supplementary material information
  • Ambient temperature-20 °C ... 60 °C
  • Holding force at nominal operating pressure213.6 N
  • Lateral force at nominal operating pressure132.5 N
  • Product weight139 g
  • Type of mountingVia vacuum port
  • Vacuum connectionM10
  • ColourBlue
  • Shore hardness60 +/-5
  • Material screwed plugPOM Nickel-plated steel Steel, galvanised and chrome-plated
  • Note on materialsRoHS compliant
  • Material suction cupPUR



SKU 189395
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
