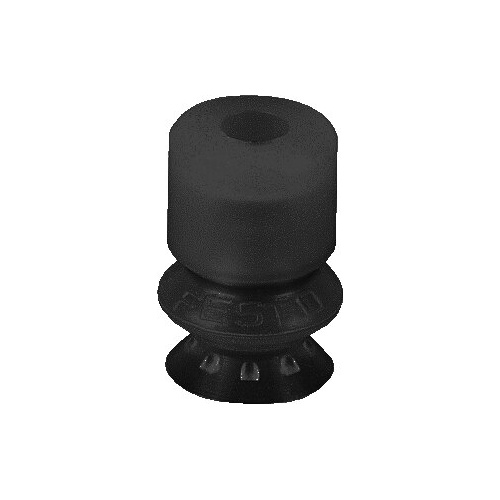

Suction cup without connectorESV-20-BN

191054

GTIN: 4052568043483

Suction cup diameter
20 mm
Suction cup shape
Round protective bellows 1.5-fold
Material suction cup
NBR



Technical Data Suction cup without connector ESV-20-BN

  • Height compensator for suction cup6 mm
  • Min. workpiece radius40 mm
  • Suction cup diameter20 mm
  • Suction cup volume1.6 cm³
  • Position of connectionOn top
  • Mounting positionAny
  • Symbol00991485
  • Suction cup shapeRound protective bellows 1.5-fold
  • Operating pressure-0.095 MPa ... 0 MPa
  • Operating pressure-0.95 bar ... 0 bar
  • Operating pressure-13.775 psi ... 0 psi
  • Nominal operating pressure-0.07 MPa
  • Nominal operating pressure-0.7 bar
  • Nominal operating pressure-10.15 psi
  • Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]
  • LABS (PWIS) conformityVDMA24364-A1-L
  • Suitable for use with foodSee supplementary material information
  • Ambient temperature-10 °C ... 70 °C
  • Holding force at nominal operating pressure12.9 N
  • Product weight1.9 g
  • ColourBlack
  • Shore hardness50 +/-5
  • Note on materialsRoHS compliant
  • Material suction cupNBR



SKU 191054
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
