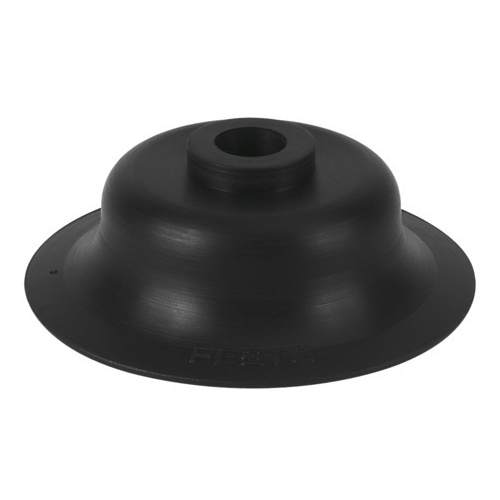

Suction cup without connectorESV-40-SNA

190993

GTIN: 4052568043216

Suction cup diameter
40 mm
Suction cup shape
Round, flat
Material suction cup
NBR



Technical Data Suction cup without connector ESV-40-SNA

  • Min. workpiece radius230 mm
  • Suction cup diameter40 mm
  • Suction cup volume1.566 cm³
  • Position of connectionOn top
  • Mounting positionAny
  • Special characteristicsAntistatic
  • Symbol00991485
  • Suction cup shapeRound, flat
  • Operating pressure-0.095 MPa ... 0 MPa
  • Operating pressure-0.95 bar ... 0 bar
  • Operating pressure-13.775 psi ... 0 psi
  • Nominal operating pressure-0.07 MPa
  • Nominal operating pressure-0.7 bar
  • Nominal operating pressure-10.15 psi
  • Surface resistance≤2.0E-4 MOhm
  • Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]
  • LABS (PWIS) conformityVDMA24364-A1-L
  • Suitable for use with foodSee supplementary material information
  • Ambient temperature-10 °C ... 70 °C
  • Holding force at nominal operating pressure69.6 N
  • Product weight7.4 g
  • ColourBlack/white dot
  • Shore hardness50 +/-5
  • Note on materialsRoHS compliant
  • Material suction cupNBR



SKU 190993
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
