Product Lifecycle Information



Product is planned to be discontinued. Do not use for new designs.




01/2027 - Product is being phased out. Do not use for new designs.




11/2028 - Product is discontinued. Products for replacement may be available while stocks permit.




12/2028 - Product is discontinued.

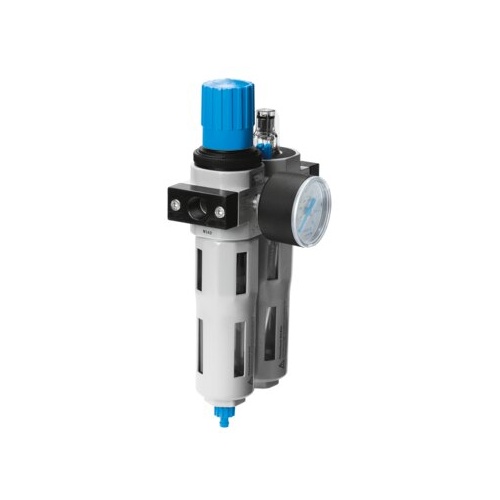

Service unit

FRC-3/4-D-7-MAXI

162760





GTIN: 4052568132729

Pneumatic connection, port 1
G3/4
Standard nominal flow rate (standardised to DIN 1343)
8500 l/min
Pressure regulation range
0.5 bar - 7 bar
Grade of filtration
40 µm

Technical Data

  • SizeMaxi
  • SeriesD
  • Actuator lockRotary knob with detent
  • Mounting positionVertical +/-5°
  • Condensate drainManual, rotating
  • DesignProportional standard mist lubricator
  • Max. condensate volume80 ml
  • Grade of filtration40 µm
  • Bowl guardMetal bowl guard
  • Symbol00991761
  • Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge
  • Operating pressure0.1 MPa ... 1.6 MPa
  • Operating pressure1 bar ... 16 bar
  • Pressure regulation range0.5 bar ... 7 bar
  • Max. pressure hysteresis0.04 MPa
  • Max. pressure hysteresis0.4 bar
  • Max. pressure hysteresis5.8 psi
  • Standard nominal flow rate (standardised to DIN 1343)8500 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [-:-:-]
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature-10 °C ... 60 °C
  • Ambient temperature-10 °C ... 60 °C
  • Product weight2390 g
  • Type of mountingWith accessories
  • Pneumatic connection, port 1G3/4
  • Pneumatic connection, port 2G3/4
  • Material housingDie-cast zinc
  • Material bowlMakrolon®
SKU 162760
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
