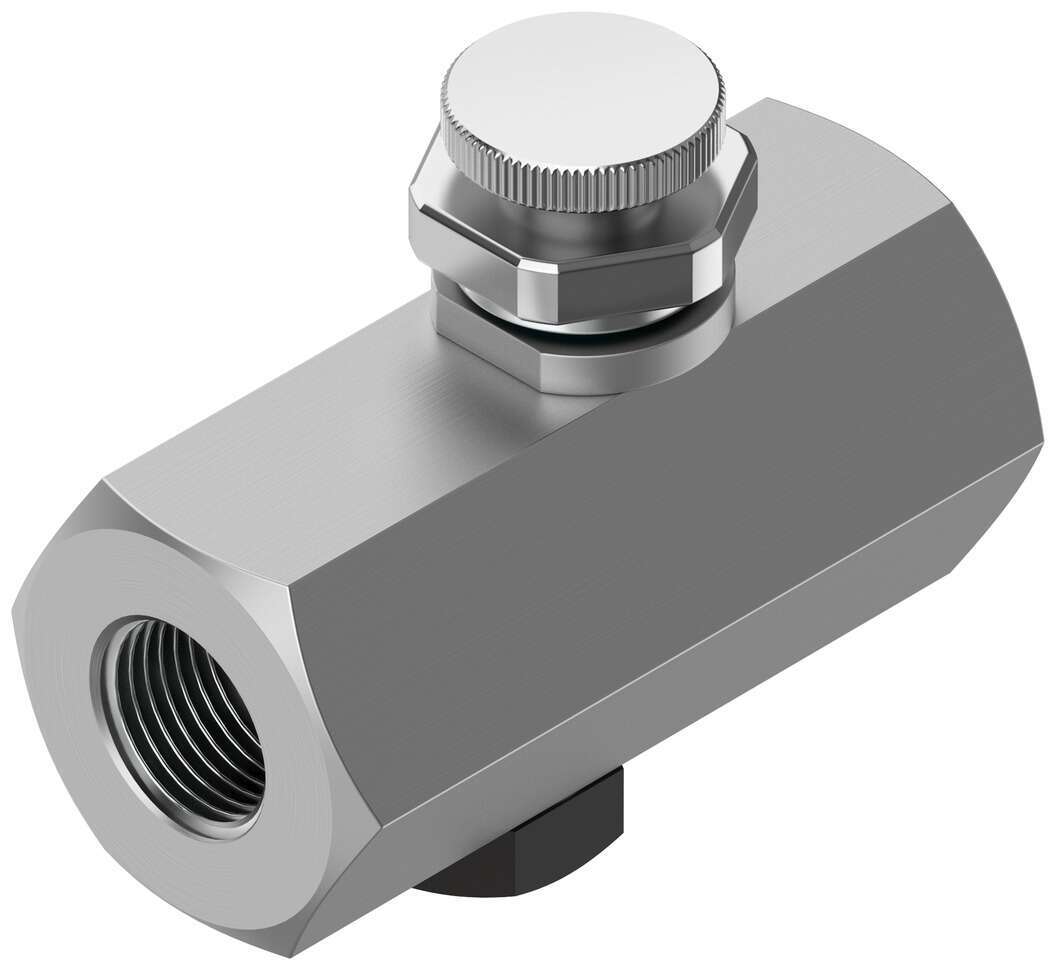

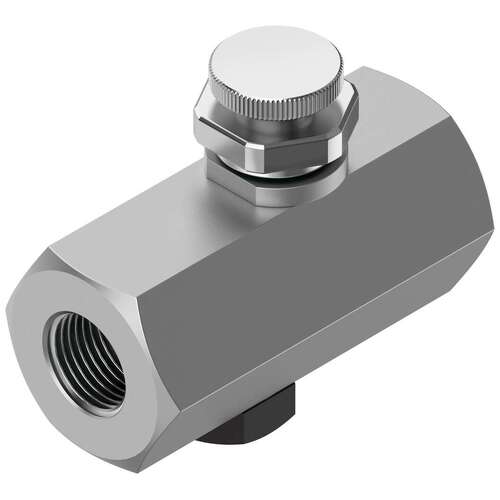

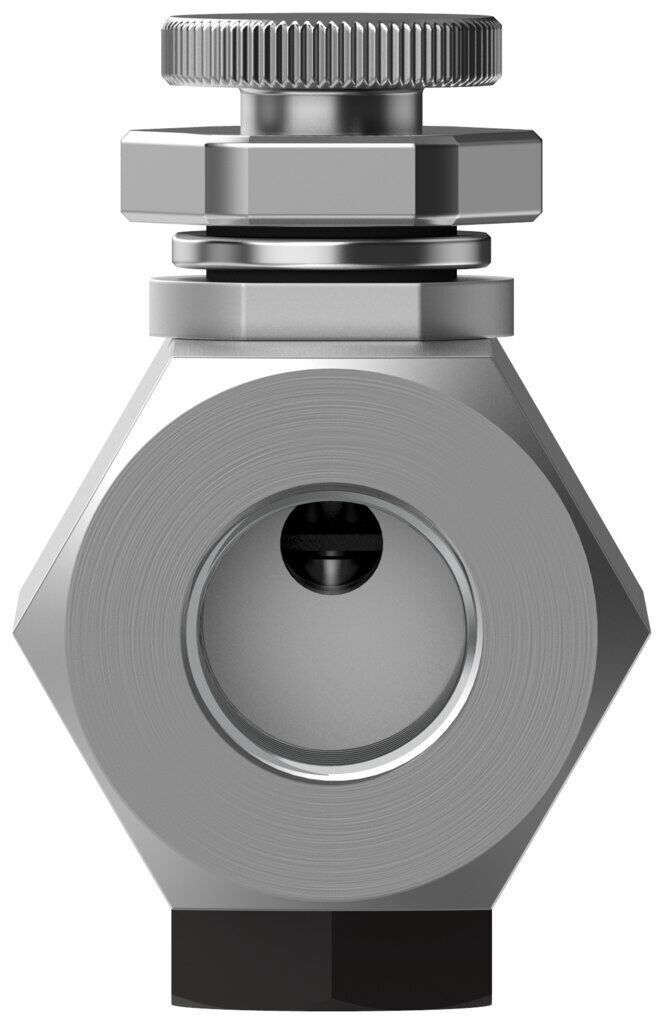

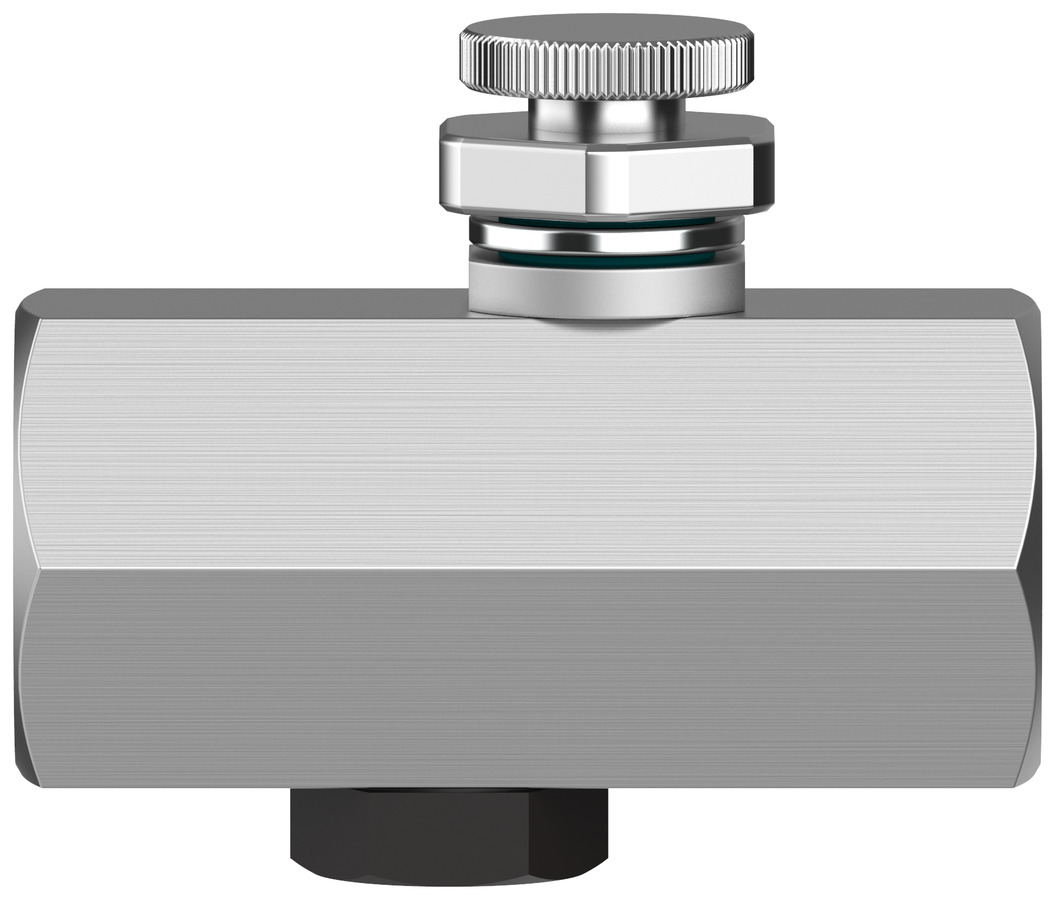

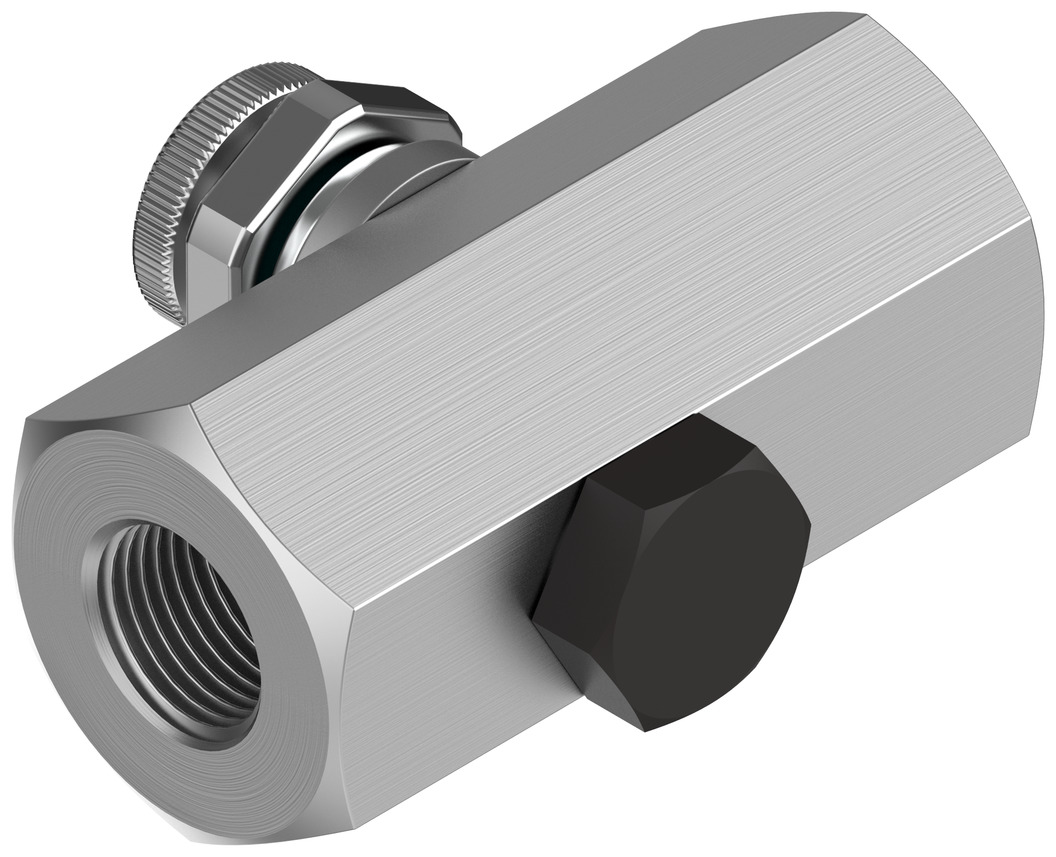

One-way flow control valve

GR-1/4

2101

Valve function
One-way flow control function
Standard nominal flow rate in flow control direction
370 l/min
Pneumatic connection, port 1
G1/4
Adjustment component
Knurled screw



GTIN: 4052568000073

Technical Data

  • Valve functionOne-way flow control function
  • Pneumatic connection, port 1G1/4
  • Pneumatic connection, port 2G1/4
  • Adjustment componentKnurled screw
  • Type of mountingIn-line installation
  • Standard nominal flow rate in flow control direction370 l/min
  • Standard nominal flow rate in blocked direction150 l/min
  • Operating pressure0.5 bar ... 10 bar
  • Ambient temperature-20 °C ... 75 °C
  • Material housingWrought aluminium alloy
  • Explosion protectionThe information in the certificate must be observed! Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
  • Mounting positionoptional
  • Symbol00991453
  • Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi)570 l/min
  • Standard flow rate in non-return direction 0.6->0 MPa (6->0 bar, 87->0 psi)340 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature-20 °C ... 75 °C
  • Product weight80 g
  • Note on materialsRoHS-compliant
  • Material sealsNBR
  • Material adjusting screwSteel Galvanised





One-way flow control valve

One-way flow control valve

One-way flow control valve

One-way flow control valve

One-way flow control valve







SKU 2101
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
