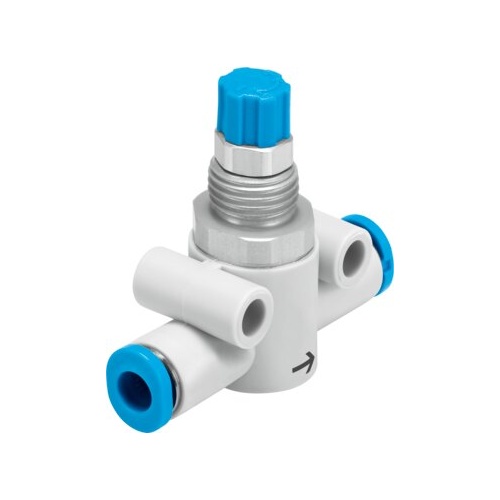

One-way flow control valveGR-QS-4

193967

GTIN: 4052568044169

Valve function
One-way flow control function
Standard nominal flow rate in flow control direction
110 l/min
Pneumatic connection, port 1
QS-4
Adjustment component
Knurled screw



Technical Data One-way flow control valve GR-QS-4

  • Valve functionOne-way flow control function
  • Pneumatic connection, port 1QS-4
  • Pneumatic connection, port 2QS-4
  • Adjustment componentKnurled screw
  • Type of mountingWith through-hole With accessories
  • Standard nominal flow rate in flow control direction110 l/min
  • Standard nominal flow rate in blocked direction165 l/min
  • Operating pressure0.2 bar ... 10 bar
  • Ambient temperature-10 °C ... 60 °C
  • Material housingReinforced PA
  • Explosion protectionThe information in the certificate must be observed! Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
  • Mounting positionAny
  • Symbol00991453
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature-10 °C ... 60 °C
  • Product weight12 g
  • Note on materialsRoHS compliant
  • Material sealsNBR
  • Material release ringPOM
  • Material knurled headReinforced PA
  • Material adjusting screwHigh-alloy steel





SKU 193967
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
