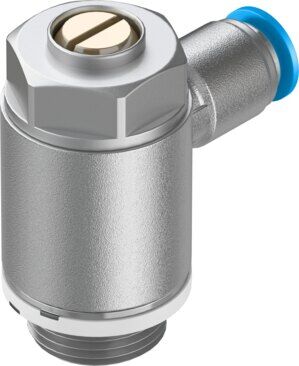

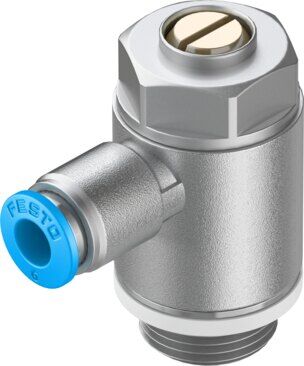

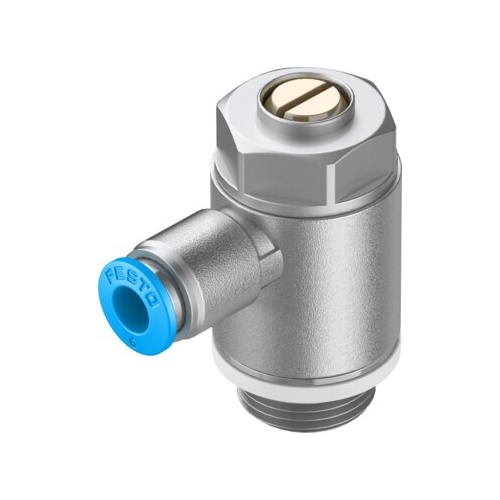

One-way flow control valveGRLA-3/8-QS-6-D

193149

GTIN: 4052568015084

Valve function
Exhaust air one-way flow control function
Standard nominal flow rate in flow control direction
495 l/min
Pneumatic connection, port 1
QS-6
Adjustment component
Slotted head screw



Technical Data One-way flow control valve GRLA-3/8-QS-6-D

  • Valve functionExhaust air one-way flow control function
  • Pneumatic connection, port 1QS-6
  • Pneumatic connection, port 2G3/8
  • Adjustment componentSlotted head screw
  • Type of mountingScrew-in
  • Standard nominal flow rate in flow control direction495 l/min
  • Standard nominal flow rate in blocked direction320 l/min ... 495 l/min
  • Ambient temperature-10 °C ... 60 °C
  • Maritime classificationSee certificate
  • Mounting positionAny
  • Symbol00991452
  • Operating pressure complete temperature range0.2 bar ... 10 bar
  • Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi)740 l/min
  • Standard flow rate in non-return direction 0.6->0 MPa (6->0 bar, 87->0 psi)840 l/min ... 890 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1
  • Media temperature-10 °C ... 60 °C
  • Nominal torque10 Nm
  • Tolerance for nominal tightening torque±10%
  • Product weight60 g
  • Material screwed plugWrought aluminium alloy
  • Note on materialsRoHS compliant
  • Material sealsNBR
  • Material release ringPOM
  • Material adjusting screwBrass
  • Material swivel fittingDie-cast zinc Chromated



SKU 193149
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
