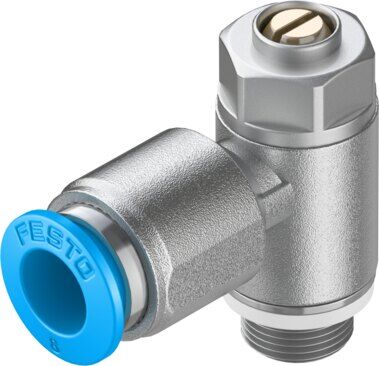

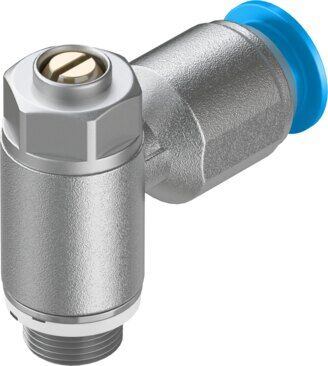

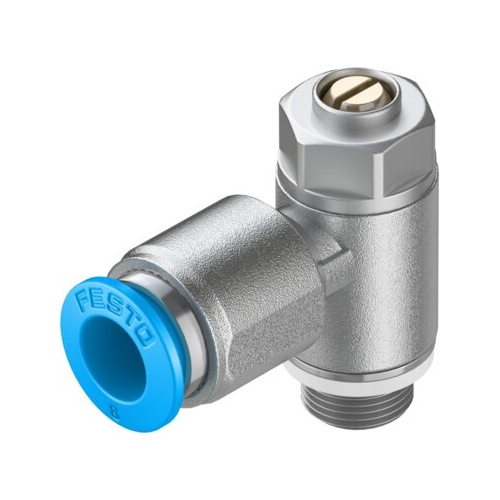

One-way flow control valveGRLZ-1/8-QS-8-D

193159

GTIN: 4052568043902

Valve function
Supply air one-way flow control function
Standard nominal flow rate in flow control direction
215 l/min
Pneumatic connection, port 1
QS-8
Adjustment component
Slotted head screw



Technical Data One-way flow control valve GRLZ-1/8-QS-8-D

  • Valve functionSupply air one-way flow control function
  • Pneumatic connection, port 1QS-8
  • Pneumatic connection, port 2G1/8
  • Adjustment componentSlotted head screw
  • Type of mountingScrew-in With male thread
  • Standard nominal flow rate in flow control direction215 l/min
  • Standard nominal flow rate in blocked direction175 l/min ... 250 l/min
  • Operating pressure0.02 MPa ... 1 MPa
  • Operating pressure0.2 bar ... 10 bar
  • Operating pressure2.9 psi ... 145 psi
  • Ambient temperature-10 °C ... 60 °C
  • Maritime classificationSee certificate
  • Mounting positionAny
  • Symbol00991453
  • Operating pressure complete temperature range0.2 bar ... 10 bar
  • Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi)370 l/min
  • Standard flow rate in non-return direction 0.6->0 MPa (6->0 bar, 87->0 psi)390 l/min ... 470 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1
  • Media temperature-10 °C ... 60 °C
  • Nominal torque6 Nm
  • Tolerance for nominal tightening torque±20%
  • Product weight22 g
  • Note on materialsRoHS compliant
  • Material sealsNBR
  • Material hollow boltWrought aluminium alloy anodised
  • Material release ringPOM
  • Material adjusting screwBrass
  • Material swivel fittingDie-cast zinc



SKU 193159
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
