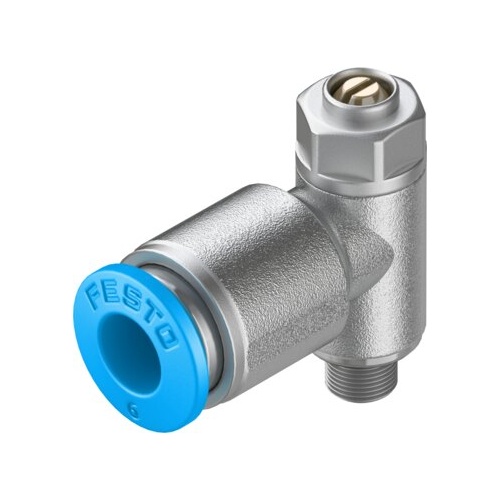

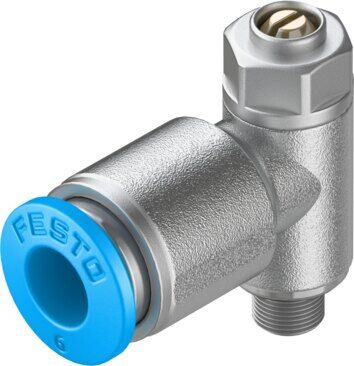

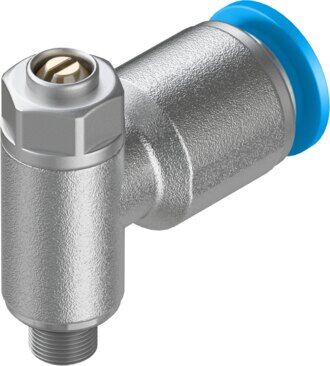

One-way flow control valve GRLZ-M5-QS-6-D

193155

GTIN: 4052568043865

Valve function
Supply air one-way flow control function
Standard nominal flow rate in flow control direction
115 l/min
Pneumatic connection, port 1
QS-6
Adjustment component
Slotted head screw





Technical Data One-way flow control valve GRLZ-M5-QS-6-D

  • Valve functionSupply air one-way flow control function
  • Pneumatic connection, port 1QS-6
  • Pneumatic connection, port 2M5
  • Adjustment componentSlotted head screw
  • Type of mountingScrew-in With male thread
  • Standard nominal flow rate in flow control direction115 l/min
  • Standard nominal flow rate in blocked direction70 l/min ... 110 l/min
  • Operating pressure0.02 MPa ... 1 MPa
  • Operating pressure0.2 bar ... 10 bar
  • Operating pressure2.9 psi ... 145 psi
  • Ambient temperature-10 °C ... 60 °C
  • Maritime classificationSee certificate
  • Mounting positionAny
  • Symbol00991453
  • Operating pressure complete temperature range0.2 bar ... 10 bar
  • Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi)170 l/min
  • Standard flow rate in non-return direction 0.6->0 MPa (6->0 bar, 87->0 psi)160 l/min ... 200 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1
  • Media temperature-10 °C ... 60 °C
  • Nominal torque1.3 Nm
  • Tolerance for nominal tightening torque±20%
  • Product weight13 g
  • Note on materialsRoHS compliant
  • Material sealsNBR
  • Material hollow boltBrass nickel-plated
  • Material release ringPOM
  • Material adjusting screwBrass
  • Material swivel fittingDie-cast zinc
SKU 193155
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
