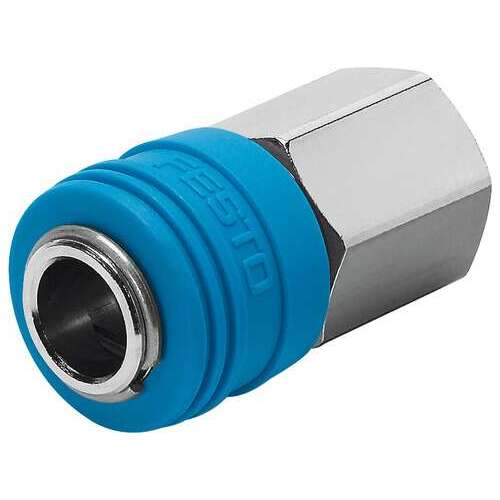

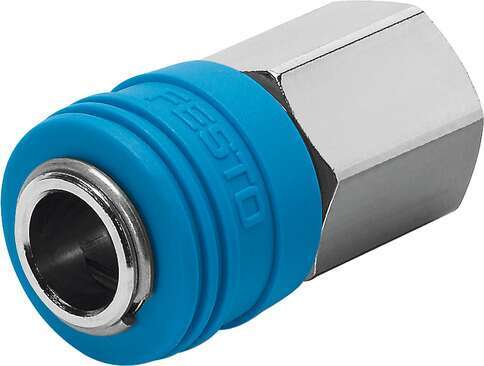

Quick coupling socket (x10 pack)

KD4-1/2-I

531638

Pneumatic connection, port 1
Female thread G1/2
Standard nominal flow rate (standardised to DIN 1343)
257 l/min - 1332 l/min

GTIN: 4052568047627

Technical Data

  • Nominal size7.2 mm
  • Operating pressure complete temperature range-0.095 MPa ... 1.2 MPa
  • Operating pressure complete temperature range-0.95 bar ... 12 bar
  • Operating pressure complete temperature range-13.775 psi ... 174 psi
  • Standard nominal flow rate (standardised to DIN 1343)257 l/min ... 1332 l/min
  • Nominal flow rate standardised according to ISO 8778278.6 l/min ... 1443.9 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-10 °C ... 60 °C
  • Nominal torque32.5 Nm
  • Tolerance for nominal tightening torque± 20%
  • Product weight86 g
  • Pneumatic connection, port 1Female thread G1/2
  • Note on materialsRoHS-compliant
  • Material sealsNBR
  • Material springHigh-alloy stainless steel
  • Material housingBrass, nickel-plated
  • Material thread pieceNickel-plated brass
  • Material of inner racewayBrass
  • Material snap ringHigh-alloy stainless steel
  • Material pinsHigh-alloy stainless steel
  • Valve body materialBrass
  • Material releasing sleevePP

QUICK-COUPLINGS_EN.PDF

SKU 531638
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
