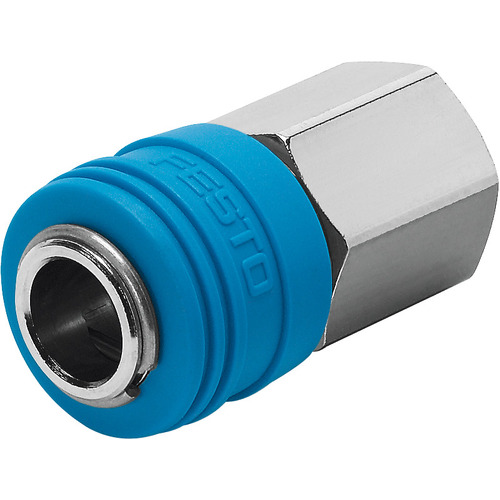

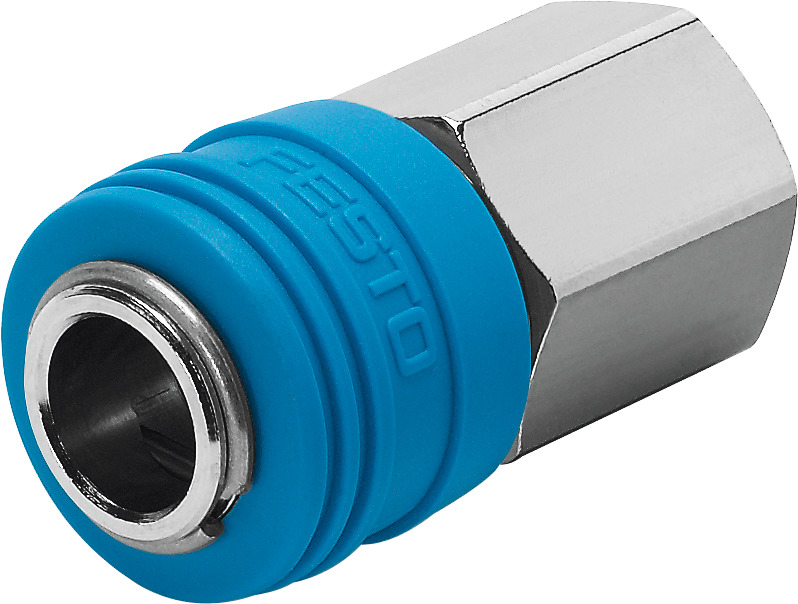

Quick coupling socket (x10 pack)

KD4-3/8-I

531637

GTIN: 4052568047610

Technical Data

• Nominal size7.2 mm
• Operating pressure complete temperature range-0.095 MPa ... 1.2 MPa
• Operating pressure complete temperature range-0.95 bar ... 12 bar
• Operating pressure complete temperature range-13.775 psi ... 174 psi
• Standard nominal flow rate (standardised to DIN 1343)261 l/min ... 1350 l/min
• Nominal flow rate standardised according to ISO 8778282.9 l/min ... 1463.4 l/min
• Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
• Note on operating and pilot mediumLubricated operation possible
• Corrosion resistance class CRC1 - Low corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Ambient temperature-10 °C ... 60 °C
• Nominal torque21.5 Nm
• Tolerance for nominal tightening torque± 15%
• Product weight82 g
• Pneumatic connection, port 1Female thread G3/8
• Note on materialsRoHS-compliant
• Material sealsNBR
• Material springHigh-alloy stainless steel
• Material housingBrass, nickel-plated
• Material thread pieceNickel-plated brass
• Material of inner racewayBrass
• Material snap ringHigh-alloy stainless steel
• Material pinsHigh-alloy stainless steel
• Valve body materialBrass
• Material releasing sleevePP

Downloads

Technical Data

• Nominal size7.2 mm
• Operating pressure complete temperature range-0.095 MPa ... 1.2 MPa
• Operating pressure complete temperature range-0.95 bar ... 12 bar
• Operating pressure complete temperature range-13.775 psi ... 174 psi
• Standard nominal flow rate (standardised to DIN 1343)261 l/min ... 1350 l/min
• Nominal flow rate standardised according to ISO 8778282.9 l/min ... 1463.4 l/min
• Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
• Note on operating and pilot mediumLubricated operation possible
• Corrosion resistance class CRC1 - Low corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Ambient temperature-10 °C ... 60 °C
• Nominal torque21.5 Nm
• Tolerance for nominal tightening torque± 15%
• Product weight82 g
• Pneumatic connection, port 1Female thread G3/8
• Note on materialsRoHS-compliant
• Material sealsNBR
• Material springHigh-alloy stainless steel
• Material housingBrass, nickel-plated
• Material thread pieceNickel-plated brass
• Material of inner racewayBrass
• Material snap ringHigh-alloy stainless steel
• Material pinsHigh-alloy stainless steel
• Valve body materialBrass
• Material releasing sleevePP

QUICK-COUPLINGS_EN.PDF

Technical data

CAD data

Links

Spare parts

Pieces

Pneumatic connection, port 1

Female thread G3/8

Standard nominal flow rate (standardised to DIN 1343)  261 l/min - 1350 l/min

Technical Data

• Nominal size7.2 mm
• Operating pressure complete temperature range -0.095 MPa ... 1.2 MPa
• Operating pressure complete temperature range -0.95 bar ... 12 bar
• Operating pressure complete temperature range -13.775 psi ... 174 psi
• Standard nominal flow rate (standardised to DIN 1343)261 l/min ... 1350 l/min
• Nominal flow rate standardised according to ISO 8778282.9 l/min ... 1463.4 l/min
• Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
• Note on operating and pilot medium Lubricated operation possible
• Corrosion resistance class CRC1 - Low corrosion stress
• LABS (PWIS) conformity VDMA24364-B1/B2-L
• Ambient temperature -10 °C ... 60 °C
• Nominal torque 21.5 Nm
• Tolerance for nominal tightening torque ± 15%
• Product weight 82 g
• Pneumatic connection, port 1Female thread G3/8
• Note on materials RoHS-compliant
• Material seals NBR
• Material spring High-alloy stainless steel
• Material housing Brass, nickel-plated
• Material thread piece Nickel-plated brass
• Material of inner raceway Brass
• Material snap ring High-alloy stainless steel
• Material pins High-alloy stainless steel
• Valve body materialBrass
• Material releasing sleeve PP
