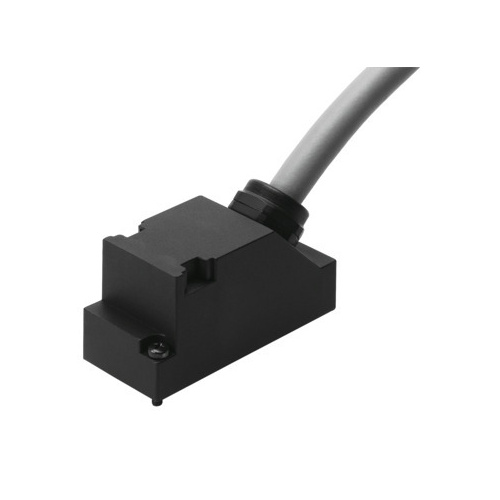

Connecting cableKMP4-25P-5-PVC

Technical Data Connecting cable KMP4-25P-5-PVC

• Based on standardDIN 41652
• Cable designationWith accessories
• Frequency of connection50
• Product weight854 g
• Electrical connection 1, functionField device side
• Electrical connection 1, designSquare
• Electrical connection 1, connection typeSocket
• Electrical connection 1, cable outletAngled
• Electrical connection 1, connector systemSub-D
• Electrical connection 1, number of connections/cores25
• Electrical connection 1, used connections/cores25
• Electrical connection 1, type of mounting2x screw M3
• Electrical connection 1, connection pattern00995642
• Electrical connection 2, functionControl side
• Electrical connection 2, connection typeCable
• Electrical connection 2, connector systemOpen end
• Electrical connection 2, number of connections/cores25
• Electrical connection 2, used connections/cores25
• Operational voltage range DC0 V ... 30 V
• Nominal operating voltage DC24 V
• Current rating at 40° C3 A
• Immunity to surge1 kV
• Cable length5 m
• Cable characteristicSuitable for energy chains
• Test conditions cableTest conditions on request
• Bending radius, fixed cable≥33 mm
• Bending radius, moving cable≥55 mm
• Cable diameter10.4 mm
• Cable diameter tolerance±0.5 mm
• Cable structure25 x 0.25 mm²
• Nominal cross section conductor0.25 mm²
• Wire endsCut off bluntly
• Degree of protectionIP65
• Note on degree of protectionIn mounted state
• Ambient temperature-40 °C ... 70 °C
• Ambient temperature with moving cable-5 °C ... 70 °C
• Storage temperature-25 °C ... 75 °C
• CE mark (see declaration of conformity)In accordance with EU RoHS Directive
• UKCA marking (see declaration of conformity)To UK RoHS instructions
• LABS (PWIS) conformityVDMA24364-B2-L
• Note on materialsRoHS compliant
• Pollution degree3
• Material cable sheathPVC
• Cable sheath colourGrey
• Material housingPA
• Housing colourBlack
• Material sealsNBR
• Material electrical contactGold-plated copper alloy
