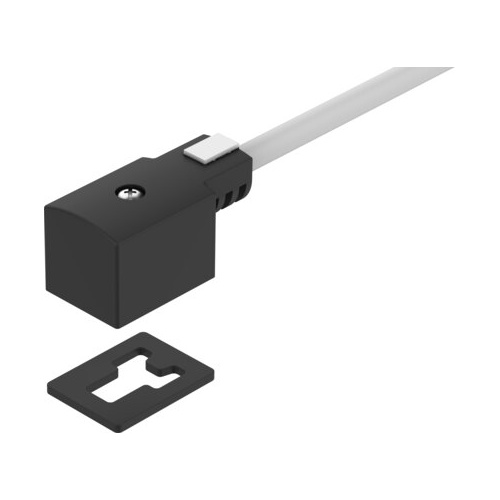

Plug socket with cableKMV-1-24-10-LED

193456

GTIN: 4052568079796

Electrical connection
Socket - Type B
Cable length
10 m



Technical Data Plug socket with cable KMV-1-24-10-LED

  • Switching status indicationLED
  • Type of mountingOn solenoid valve via M3 central screw
  • Mounting positionAny
  • Product weight620 g
  • Electrical connectionSocket Type B
  • Nominal operating voltage DC24 V
  • Reverse polarity protectionFor all electrical connections
  • Protective conductor connectionAvailable
  • Cable length10 m
  • Cable diameter6 mm
  • Cable structure3 x 0.75 mm²
  • Degree of protectionIP67 To IEC 60529
  • Ambient temperature-20 °C ... 80 °C
  • CE mark (see declaration of conformity)In accordance with EU RoHS Directive
  • UKCA marking (see declaration of conformity)To UK RoHS instructions
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Corrosion resistance class CRC1 - Low corrosion stress
  • Material cable sheathPVC
  • Material housingMakrolon®
  • Material electrical contactBronze
SKU 193456
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
