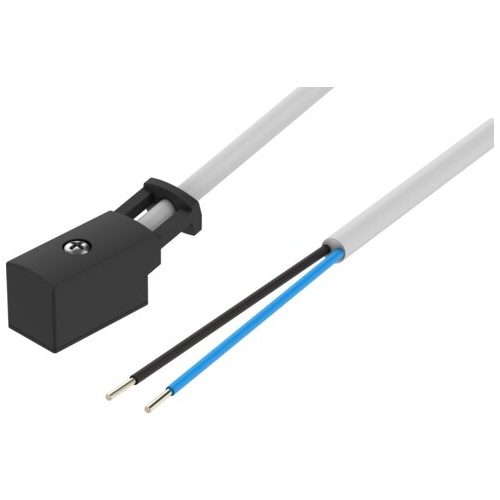

Connecting cableKMYZ-2-24-10-LED

193443

GTIN: 4052568079772

Electrical connection
2-pole / 2-core - Angled socket/cable - Square design/open end
Cable length
10 m



Technical Data Connecting cable KMYZ-2-24-10-LED

  • Switching position indicatorLED
  • Type of mountingOn solenoid valve via self-tapping screw
  • Mounting positionAny
  • Product weight170 g
  • Electrical connection2-pole / 2-core Angled socket/cable Square design/open end
  • Nominal operating voltage DC24 V
  • Current rating at 40° C1 A
  • Protective conductor connectionNot provided
  • Cable length10 m
  • Cable characteristicStandard
  • Cable diameter3.4 mm
  • Cable structure2 x 0.25 mm²
  • Degree of protectionIP65
  • Ambient temperature-10 °C ... 50 °C
  • CE mark (see declaration of conformity)In accordance with EU RoHS Directive
  • UKCA marking (see declaration of conformity)To UK RoHS instructions
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Note on materialsRoHS compliant
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • Material cable sheathTPE-U(PUR)
  • Material housingPA
  • Material electrical contactBronze



SKU 193443
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
