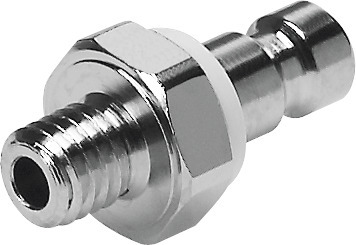

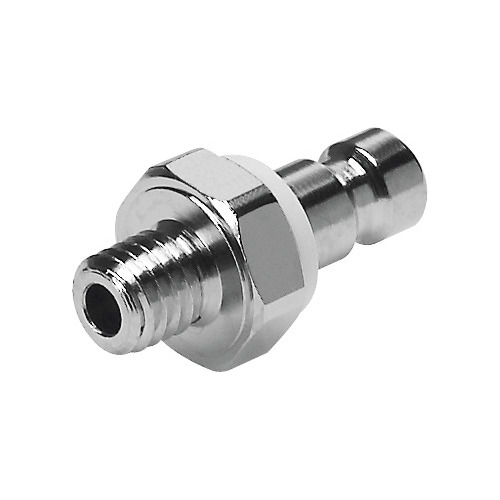

KS2-M5-A Quick coupling plug

KS2-M5-A

$7.79
RRP $8.70
SAVE $0.91 (10%)


Quick coupling plug

KS2-M5-A

531658

GTIN: 4052568047764

Downloads

QUICK-COUPLINGS_EN.PDF

Technical data

Links

Spare parts



Pneumatic connection, port 1

Male thread M5

Standard nominal flow rate (standardised to DIN 1343) 85 l/min - 136 l/min



Quick coupling plug

Technical Data

  • Nominal size2.4 mm
  • Operating pressure complete temperature range -0.095 MPa ... 1.2 MPa
  • Operating pressure complete temperature range -0.95 bar ... 12 bar
  • Operating pressure complete temperature range -13.775 psi ... 174 psi
  • Standard nominal flow rate (standardised to DIN 1343) 85 l/min ... 136 l/min
  • Nominal flow rate standardised according to ISO 877892.1 l/min ... 147.4 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot medium Lubricated operation possible
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformity VDMA24364-B1/B2-L
  • Ambient temperature- 10 °C ... 60 °C
  • Nominal torque 0.85 Nm
  • Tolerance for nominal tightening torque ± 15%
  • Product weight 5 g
  • Pneumatic connection, port 1 Male thread M5
  • Note on materials RoHS-compliant
  • Material thread seal NBR High-alloy stainless steel
  • Information on materials Brass, nickel plated

(531658)

SKU 531658
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
