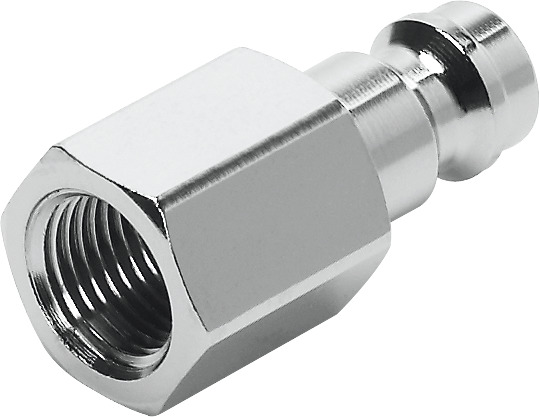

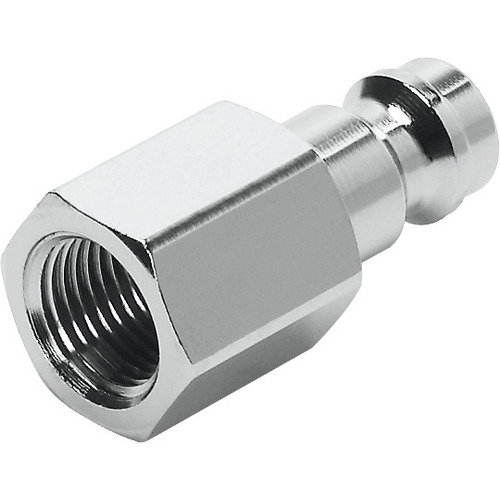

Quick coupling plug (x10 pack)

KS3-1/4-I

531669

GTIN: 4052568047849

Technical Data

• Nominal size4.95 mm
• Operating pressure complete temperature range-0.095 MPa ... 1.2 MPa
• Operating pressure complete temperature range-0.95 bar ... 12 bar
• Operating pressure complete temperature range-13.775 psi ... 174 psi
• Standard nominal flow rate (standardised to DIN 1343)225 l/min ... 666 l/min
• Nominal flow rate standardised according to ISO 8778243.9 l/min ... 721.9 l/min
• Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
• Note on operating and pilot mediumLubricated operation possible
• Corrosion resistance class CRC1 - Low corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Ambient temperature-10 °C ... 60 °C
• Nominal torque9.5 Nm
• Tolerance for nominal tightening torque± 15%
• Product weight27 g
• Pneumatic connection, port 1Female thread G1/4
• Note on materialsRoHS-compliant
• Information on materialsBrass, nickel plated

Downloads

QUICK-COUPLINGS_EN.PDF

Technical data

CAD data

Links

Spare parts

Pieces

Calculate delivery dateAdd to CartCompare

Pneumatic connection, port 1

Female thread G1/4

Standard nominal flow rate (standardised to DIN 1343) 225 l/min - 666 l/mi

Technical Data

• Nominal size4.95 mm
• Operating pressure complete temperature range -0.095 MPa ... 1.2 MPa
• Operating pressure complete temperature range -0.95 bar ... 12 bar
• Operating pressure complete temperature range- 13.775 psi ... 174 psi
• Standard nominal flow rate (standardised to DIN 1343) 225 l/min ... 666 l/min
• Nominal flow rate standardised according to ISO 8778243.9 l/min ... 721.9 l/min
• Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
• Note on operating and pilot medium Lubricated operation possible
• Corrosion resistance class CRC1 - Low corrosion stress
• LABS (PWIS) conformity VDMA24364-B1/B2-L
• Ambient temperature -10 °C ... 60 °C
• Nominal torque 9.5 Nm
• Tolerance for nominal tightening torque ± 15%
• Product weight 27 g
• Pneumatic connection, port 1Female thread G1/4
• Note on materials RoHS-compliant
• Information on materialsBrass, nickel plated
