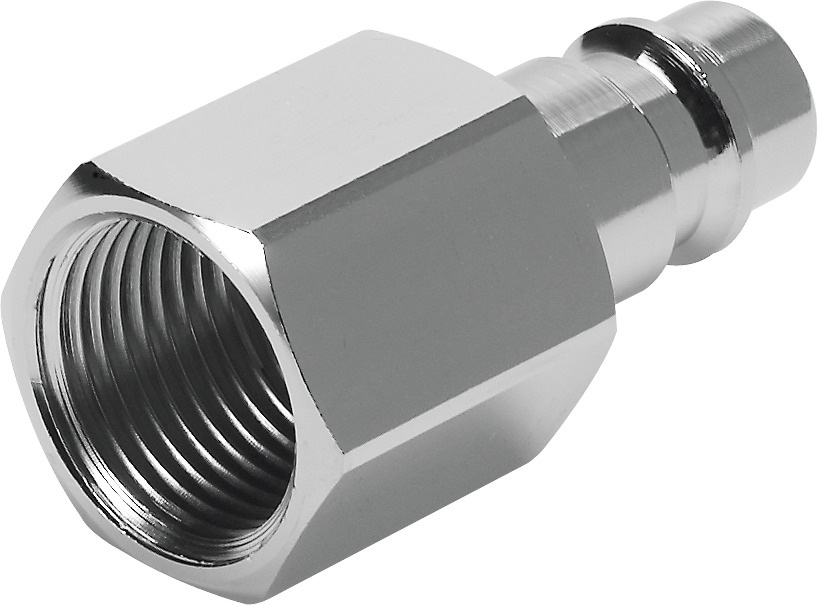

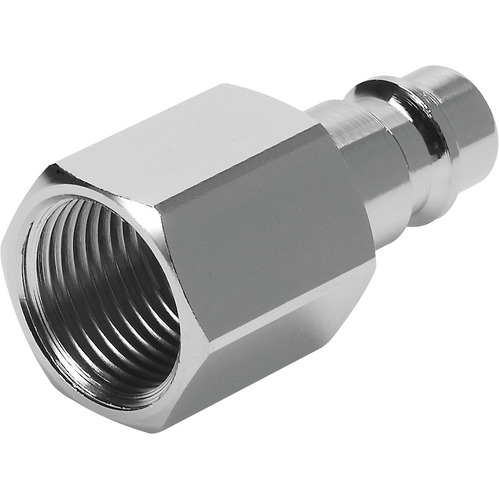

Quick coupling plug

KS4-1/2-I

531680

GTIN: 4052568047917

Technical Data

• Nominal size7.85 mm
• Operating pressure complete temperature range-0.095 MPa ... 1.2 MPa
• Operating pressure complete temperature range-0.95 bar ... 12 bar
• Operating pressure complete temperature range-13.775 psi ... 174 psi
• Standard nominal flow rate (standardised to DIN 1343)756 l/min ... 1314 l/min
• Nominal flow rate standardised according to ISO 8778819.5 l/min ... 1424.4 l/min
• Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
• Note on operating and pilot mediumLubricated operation possible
• Corrosion resistance class CRC1 - Low corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Ambient temperature-10 °C ... 60 °C
• Nominal torque32.5 Nm
• Tolerance for nominal tightening torque± 20%
• Product weight57 g
• Pneumatic connection, port 1Female thread G1/2
• Note on materialsRoHS-compliant
• Information on materialsBrass, nickel plated
