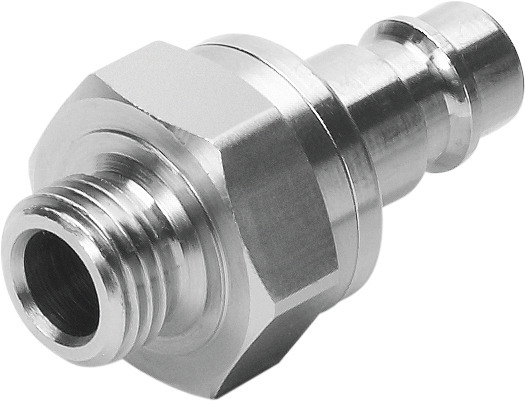

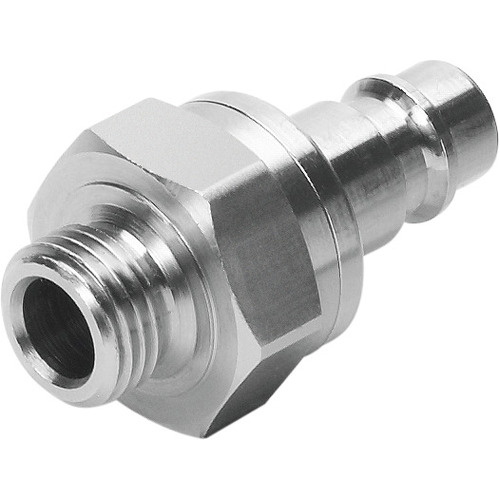

Quick coupling plug (x10 pack)

KS4-1/4-A-R

531677

GTIN: 4052568047887

Technical Data

• Nominal size8 mm
• Operating pressure complete temperature range-0.095 MPa ... 1.2 MPa
• Operating pressure complete temperature range-0.95 bar ... 12 bar
• Operating pressure complete temperature range-13.775 psi ... 174 psi
• Standard nominal flow rate (standardised to DIN 1343)765 l/min
• Nominal flow rate standardised according to ISO 8778829.3 l/min
• Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
• Note on operating and pilot mediumLubricated operation possible
• Corrosion resistance class CRC1 - Low corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Ambient temperature-10 °C ... 60 °C
• Nominal torque9.5 Nm
• Tolerance for nominal tightening torque± 15%
• Product weight46 g
• Pneumatic connection, port 1Male thread G1/4
• Note on materialsRoHS-compliant
• Material sealsNBR
• Material springHigh-alloy stainless steel
• Material thread sealPA66-GF30/TPE-U
• Information on materialsBrass
• Valve body materialBrass

Downloads

QUICK-COUPLINGS_EN.PDF

Technical data

CAD data

Links

Spare parts

Pieces

Calculate delivery dateAdd to CartCompare

Pneumatic connection, port 1

Male thread G1/4

Standard nominal flow rate (standardised to DIN 1343)

765 l/min

Suits 531638

Technical Data

• Nominal size8 mm
• Operating pressure complete temperature range -0.095 MPa ... 1.2 MPa
• Operating pressure complete temperature range -0.95 bar ... 12 bar
• Operating pressure complete temperature range -13.775 psi ... 174 psi
• Standard nominal flow rate (standardised to DIN 1343) 765 l/min
• Nominal flow rate standardised according to ISO 8778 829.3 l/min
• Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
• Note on operating and pilot mediumLubricated operation possible
• Corrosion resistance class CRC1 - Low corrosion stress
• LABS (PWIS) conformity VDMA24364-B1/B2-L
• Ambient temperature -10 °C ... 60 °C
• Nominal torque 9.5 Nm
• Tolerance for nominal tightening torque ± 15%
• Product weight 46 g
• Pneumatic connection, port 1Male thread G1/4
• Note on materials RoHS-compliant
• Material seals NBR
• Material spring High-alloy stainless steel
• Material thread seal PA66-GF30/TPE-U
• Information on materials Brass
• Valve body material Brass
