Product Lifecycle Information



Product is planned to be discontinued. Do not use for new designs.




01/2027 - Product is being phased out. Do not use for new designs.




11/2028 - Product is discontinued. Products for replacement may be available while stocks permit.




12/2028 - Product is discontinued.

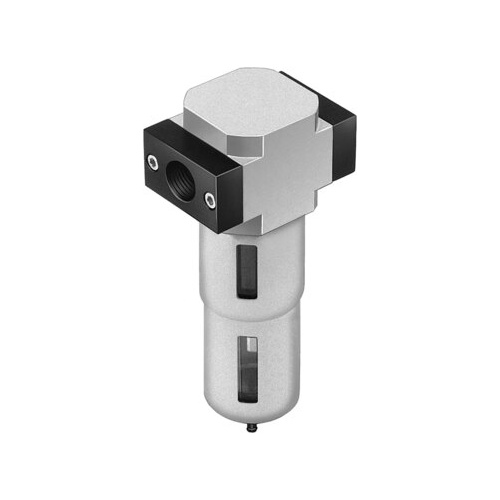

Fine filter

LFMB-3/4-D-MIDI-A

162639





GTIN: 4052568131821


Pneumatic connection, port 1
G3/4
Max. standard flow rate for clean air class
1980 l/min
Condensate drain
Fully automatic
Operating pressure
2 bar - 12 bar
Grade of filtration
1 µm

Technical Data

  • SeriesD
  • SizeMidi
  • DesignFibre filter
  • Grade of filtration1 µm
  • Condensate drainFully automatic
  • Symbol00991520
  • Operating pressure2 bar ... 12 bar
  • Operating mediumCompressed air to ISO 8573-1:2010 [6:8:4] Inert gas
  • Air purity class at outputCompressed air to ISO 8573-1:2010 [5:7:3] Inert gas
  • Max. standard flow rate for clean air class1980 l/min
  • Min. standard flow rate for clean air class600 l/min
  • Filter efficiency99.99 %
  • Max. condensate volume43 ml
  • Bowl guardMetal bowl guard
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature1.5 °C ... 60 °C
  • Ambient temperature-10 °C ... 60 °C
  • Storage temperature-10 °C ... 60 °C
  • Residual oil content0.5 mg/m³
  • Type of mountingWith accessories
  • Mounting positionVertical +/-5°
  • Pneumatic connection, port 1G3/4
  • Pneumatic connection, port 2G3/4
  • Material housingDie-cast zinc
  • Material filterBorosilicate fibre
  • Material bowlMakrolon®
  • Note on materialsRoHS compliant
  • Product weight650 g
SKU 162639
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
