Product Lifecycle Information




Product is planned to be discontinued. Do not use for new designs.



04/2026 - Product is being phased out. Do not use for new designs.




11/2028 - Product is discontinued. Products for replacement may be available while stocks permit.




12/2028 - Product is discontinued.

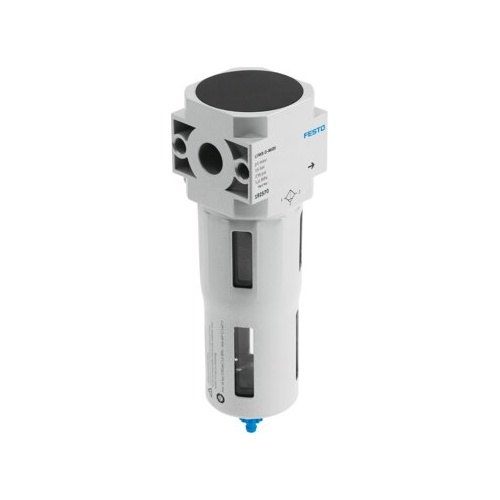

Fine filterLFMB-D-MINI

192569

GTIN: 4052568079536

Pneumatic connection, port 1
Sub-base
Condensate drain
Manual, rotating
Operating pressure
1 bar - 16 bar
Grade of filtration
1 µm



Technical Data Fine filter LFMB-D-MINI

  • SeriesD
  • SizeMini
  • DesignFibre filter
  • Grade of filtration1 µm
  • Condensate drainManual, rotating
  • Symbol00991519
  • Operating pressure1 bar ... 16 bar
  • Operating mediumCompressed air to ISO 8573-1:2010 [6:8:4] Inert gas
  • Air purity class at outputCompressed air to ISO 8573-1:2010 [5:7:3] Inert gas
  • Filter efficiency99.99 %
  • Max. condensate volume22 ml
  • Bowl guardMetal bowl guard
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature1.5 °C ... 60 °C
  • Ambient temperature-10 °C ... 60 °C
  • Storage temperature-10 °C ... 60 °C
  • Residual oil content0.5 mg/m³
  • Type of mountingWith accessories
  • Mounting positionVertical +/-5°
  • Pneumatic connection, port 1Sub-base
  • Pneumatic connection, port 2Sub-base
  • Material housingDie-cast zinc
  • Material filterBorosilicate fibre
  • Material bowlMakrolon®
  • Note on materialsRoHS compliant





SKU 192569
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
