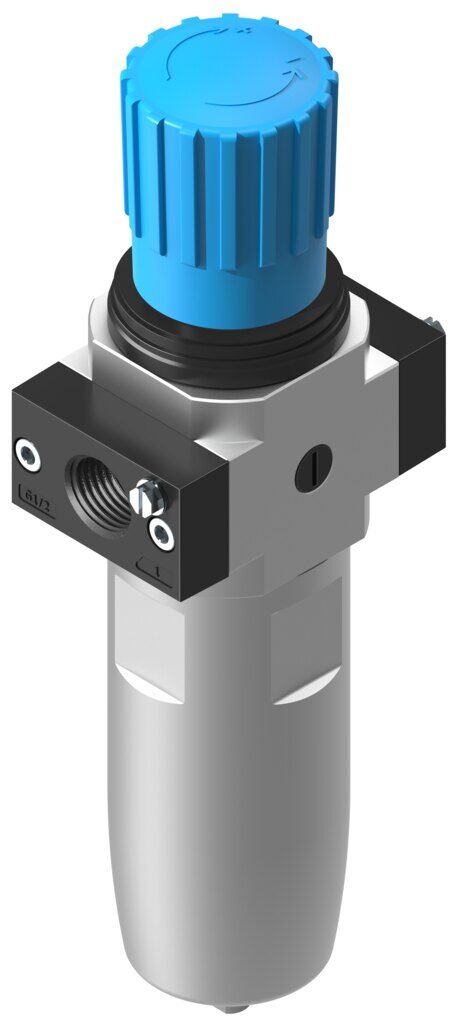

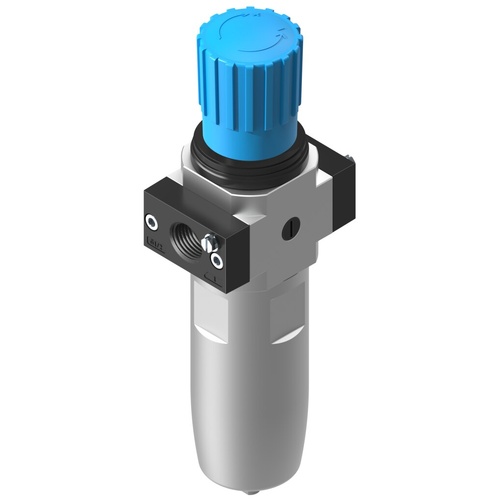

Filter regulator

Technical Data

• SizeMidi
• SeriesD
• Actuator lockRotary knob with detent
• Mounting positionVertical +/-5°
• Grade of filtration40 µm
• Condensate drainManually rotating
• DesignFilter regulator without pressure gauge
• Max. condensate volume42 ml
• Bowl guardIntegrated as metal bowl

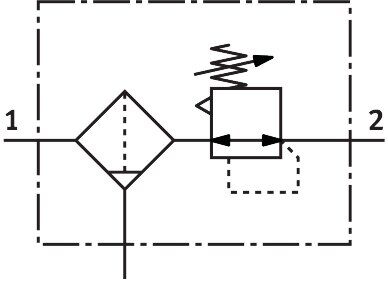

• Symbol00991586
• Pressure gauge (ANALOG) or Pressure display (DIGITAL)Prepared for G1/4
• Operating pressure0.1 MPa ... 2 MPa
• Operating pressure1 bar ... 20 bar
• Pressure regulation range0.5 bar ... 16 bar
• Max. pressure hysteresis0.02 MPa
• Max. pressure hysteresis2.9 psi
• Standard nominal flow rate (standardised to DIN 1343)1970 l/min
• CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)
• UKCA marking (see declaration of conformity)To UK EX instructions
• Explosion protection certification outside the EUEPL Db (GB) EPL Gb (GB)
• Explosion protectionZone 1 (ATEX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (UKEX) Zone 22 (ATEX)
• ATEX category gasII 2G
• ATEX category dustII 2D
• Explosion ignition protection type for gasEx h IIC T6 Gb X
• Explosion ignition protection type for dustEx h IIIC T85°C Db X
• Explosion ambient temperature-20 °C <= Ta <= +80 °C
• Operating mediumInert gases
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Corrosion resistance class CRC3 - high corrosion stress
• LABS (PWIS) conformityVDMA24364 zone III
• Storage temperature-20 °C ... 80 °C
• Air purity class at outputCompressed air to ISO 8573-1:2010 [7:8:4] Inert gases
• Media temperature-20 °C ... 80 °C
• Ambient temperature-20 °C ... 80 °C
• Product weight1400 g
• Type of mountingWith accessories
• Pneumatic connection, port 1G1/2
• Pneumatic connection, port 2G1/2
• Note on materialsRoHS-compliant
• Material housingDie-cast zinc
• Material bowlWrought aluminium alloy
