Product Lifecycle Information



Product is planned to be discontinued. Do not use for new designs.




01/2027 - Product is being phased out. Do not use for new designs.




11/2028 - Product is discontinued. Products for replacement may be available while stocks permit.




12/2028 - Product is discontinued.

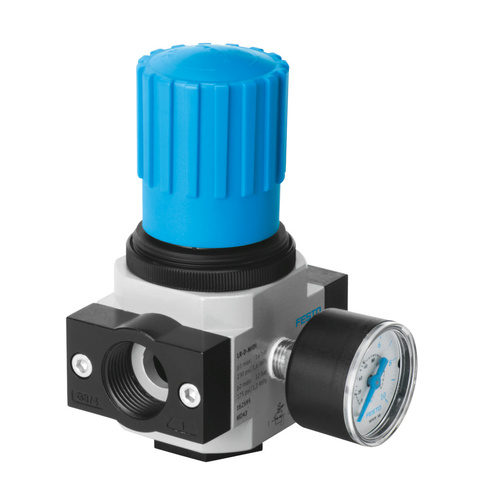

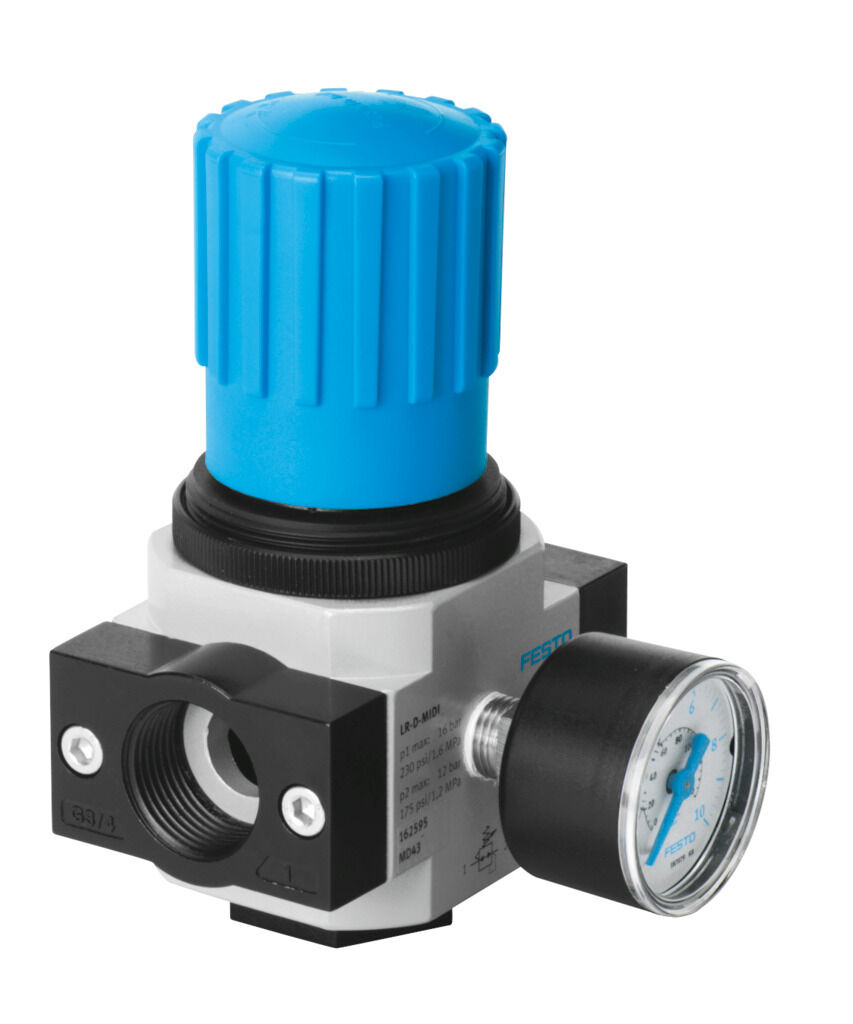

Pressure regulator

LR-3/4-D-7-I-MIDI

192317





GTIN: 4052568150914

Pneumatic connection, port 1
G3/4
Standard nominal flow rate (standardised to DIN 1343)
4500 l/min
Pressure regulation range
0.5 bar - 7 bar
Max. pressure hysteresis
0.2 bar

Technical Data

  • SizeMidi
  • SeriesD
  • Actuator lockRotary knob with detent
  • Mounting positionoptional
  • DesignDirectly actuated diaphragm regulator
  • Controller functionOutput pressure constant Via primary pressure compensation With secondary venting With return flow function
  • Symbol00991558
  • Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge
  • Operating pressure0 MPa ... 1.6 MPa
  • Operating pressure0 bar ... 16 bar
  • Pressure regulation range0.5 bar ... 7 bar
  • Max. pressure hysteresis0.02 MPa
  • Max. pressure hysteresis0.2 bar
  • Max. pressure hysteresis2.9 psi
  • Standard nominal flow rate (standardised to DIN 1343)4500 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gases
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Air purity class at outputCompressed air to ISO 8573-1:2010 [7:4:4] Inert gases
  • Media temperature-10 °C ... 60 °C
  • Ambient temperature-10 °C ... 60 °C
  • Product weight720 g
  • Type of mountingWith accessories
  • Pneumatic connection, port 1G3/4
  • Pneumatic connection, port 2G3/4
  • Note on materialsRoHS-compliant
  • Material sub-baseDie-cast zinc
  • Material sealsNBR
  • Material housingDie-cast zinc

    Technical Data

  • SizeMidi
  • SeriesD
  • Actuator lockRotary knob with detent
  • Mounting positionoptional
  • DesignDirectly actuated diaphragm regulator
  • Controller functionOutput pressure constant Via primary pressure compensation With secondary venting With return flow function
  • Symbol00991558
  • Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge
  • Operating pressure0 MPa ... 1.6 MPa
  • Operating pressure0 bar ... 16 bar
  • Pressure regulation range0.5 bar ... 7 bar
  • Max. pressure hysteresis0.02 MPa
  • Max. pressure hysteresis0.2 bar
  • Max. pressure hysteresis2.9 psi
  • Standard nominal flow rate (standardised to DIN 1343)4500 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gases
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Air purity class at outputCompressed air to ISO 8573-1:2010 [7:4:4] Inert gases
  • Media temperature-10 °C ... 60 °C
  • Ambient temperature-10 °C ... 60 °C
  • Product weight720 g
  • Type of mountingWith accessories
  • Pneumatic connection, port 1G3/4
  • Pneumatic connection, port 2G3/4
  • Note on materialsRoHS-compliant
  • Material sub-baseDie-cast zinc
  • Material sealsNBR
  • Material housingDie-cast zinc
SKU 192317
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
