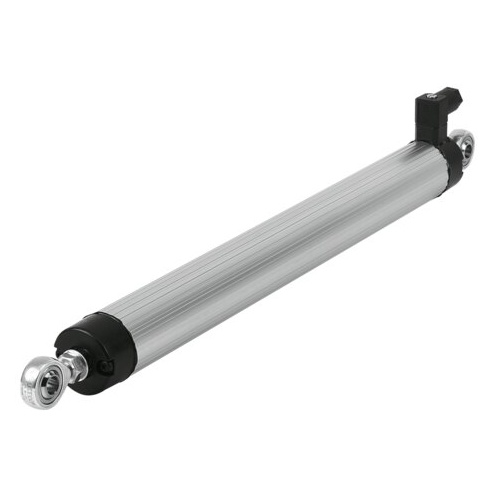

Displacement encoderMLO-POT-150-LWG

192214

GTIN: 4052568150846

Stroke
150 mm
Functional principle of measuring system
Analogue
Output signal
Analogue
Displacement resolution
0.01 mm
Electrical connection
Plug - Square design



Technical Data Displacement encoder MLO-POT-150-LWG

  • CE mark (see declaration of conformity)To EU EMC Directive
  • Functional principle of measuring systemAnalogue
  • Ambient temperature-30 °C ... 100 °C
  • Recommended wiper current<1 µA
  • Max. wiper current, short-time10000 µA
  • Max. travel speed5 m/s
  • Max. travel acceleration200 m/s²
  • Displacement resolution0.01 mm
  • Non-dependent linearity0.08 %
  • Temperature coefficient5 ppm/K
  • Stroke150 mm
  • Output signalAnalogue
  • Connection resistance5 kOhm
  • Connection resistance tolerance20 %
  • Nominal operating voltage DC10 V
  • Max. operating voltage DC42 V
  • Permissible voltage fluctuations<1%
  • Max. current consumption4 mA
  • Electrical connectionPlug Square design
  • DesignRound profile With operating rod
  • Angle offset of driver±12.5°
  • Mounting positionAny
  • Product weight600 g
  • Material housinganodised
  • Material coverReinforced PBT
  • Material connecting rodHigh-alloy stainless steel
  • Material bearing sealNBR
  • Material rod sealPTFE
  • Degree of protectionIP65 To IEC 60529
  • Vibration resistance to DIN/IEC 68 Part 2-6Tested to severity level 2
  • Continuous shock resistance to DIN/IEC 68 Part 2-82Tested to severity level 2
  • LABS (PWIS) conformityVDMA24364-B2-L



SKU 192214
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
