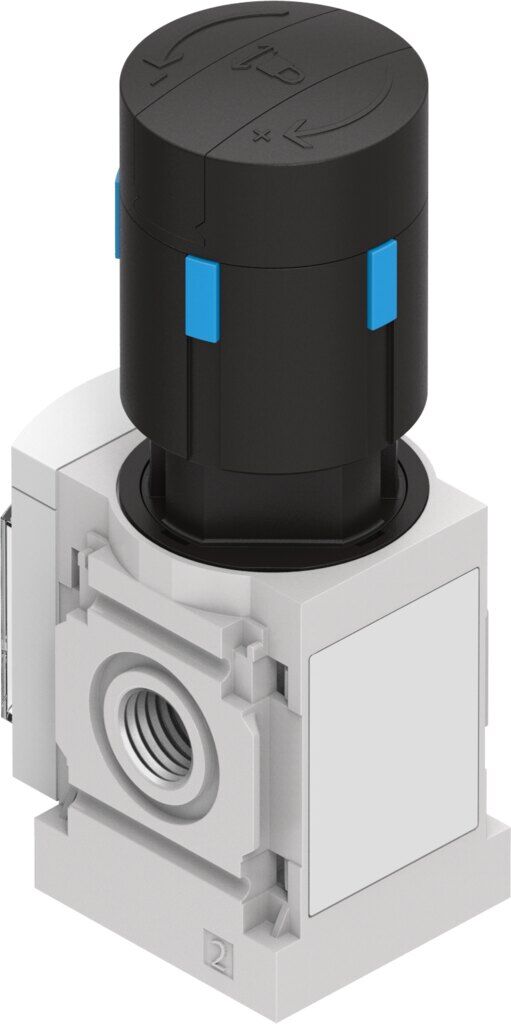

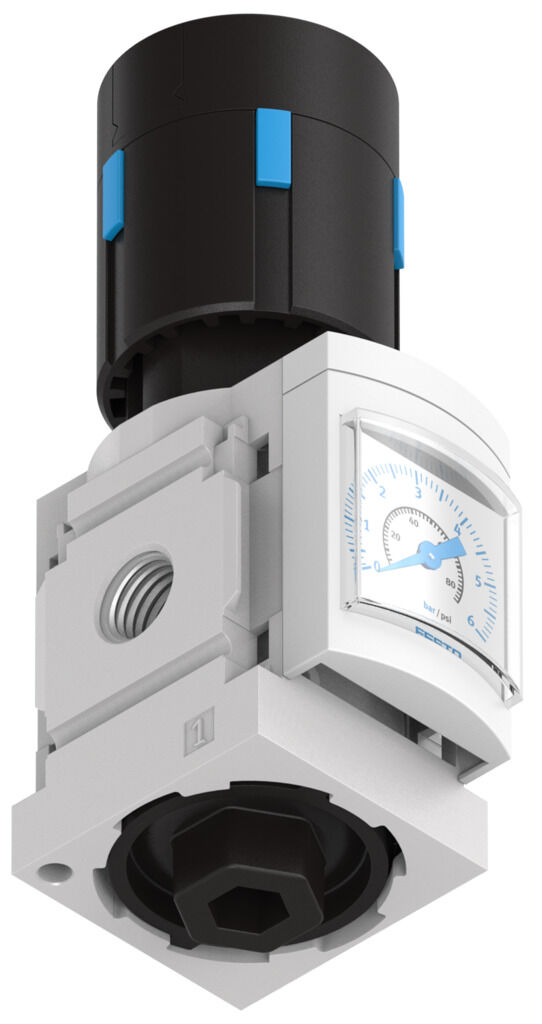

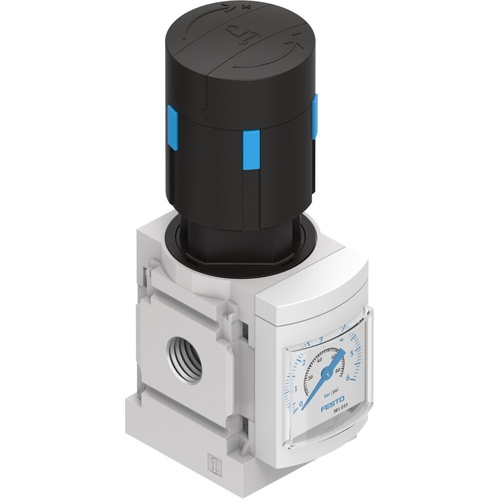

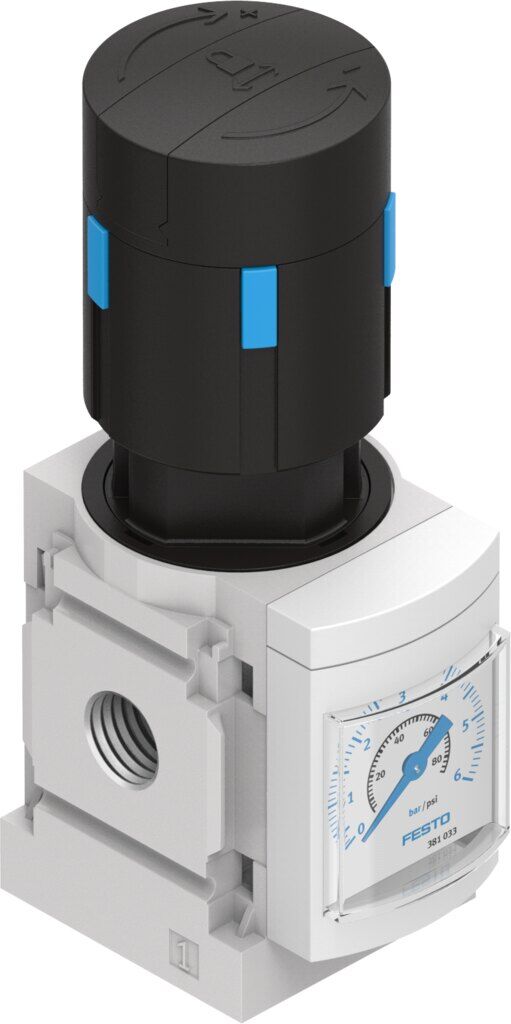

Pressure regulator

MS4-LR-1/8-D5-AS-Z

529422





GTIN: 4052568085100

Pneumatic connection, port 1
G1/8
Standard nominal flow rate (standardised to DIN 1343)
1200 l/min
Pressure regulation range
0.3 bar - 4 bar
Max. pressure hysteresis
0.25 bar



Technical Data

  • Size4
  • SeriesMS
  • Actuator lockRotary knob with detent can be closed with accessories
  • Mounting positionoptional
  • DesignDirectly actuated diaphragm regulator
  • Controller functionOutput pressure constant With secondary venting With return flow function
  • Symbol00991558
  • Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge
  • Operating pressure0.08 MPa ... 1.4 MPa
  • Operating pressure0.8 bar ... 14 bar
  • Pressure regulation range0.3 bar ... 4 bar
  • Max. pressure hysteresis0.025 MPa
  • Max. pressure hysteresis0.25 bar
  • Max. pressure hysteresis3.625 psi
  • Standard nominal flow rate (standardised to DIN 1343)1200 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gases
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Storage temperature-10 °C ... 60 °C
  • Suitable for use with foodSee supplementary material information
  • Media temperature-10 °C ... 60 °C
  • Ambient temperature-10 °C ... 60 °C
  • Product weight225 g
  • Type of mountingWith accessories
  • Pneumatic connection, port 1G1/8
  • Pneumatic connection, port 2G1/8
  • Note on materialsRoHS-compliant
  • Material sub-baseDie-cast aluminium
  • Material control panelPA POM
  • Material sealsNBR
  • Material housingDie-cast aluminium
  • Material membraneNBR
SKU 529422
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
