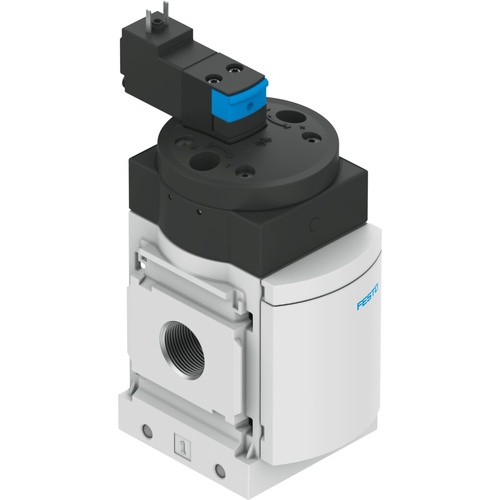

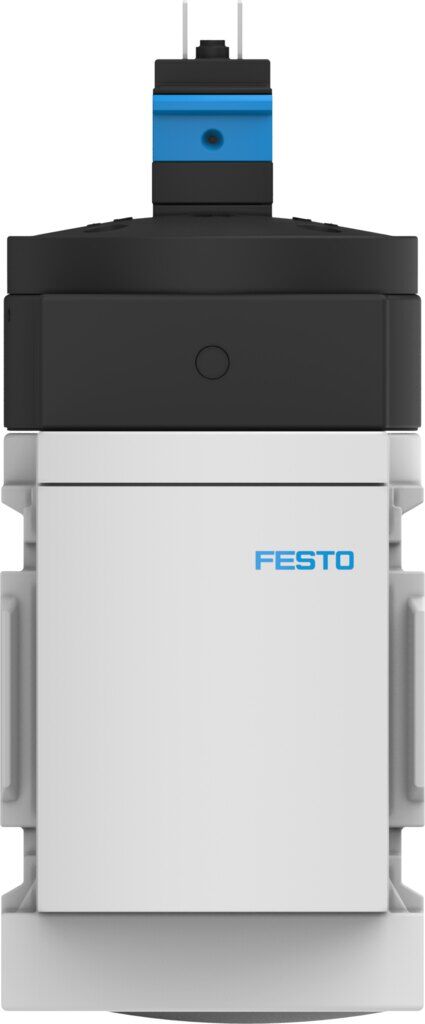

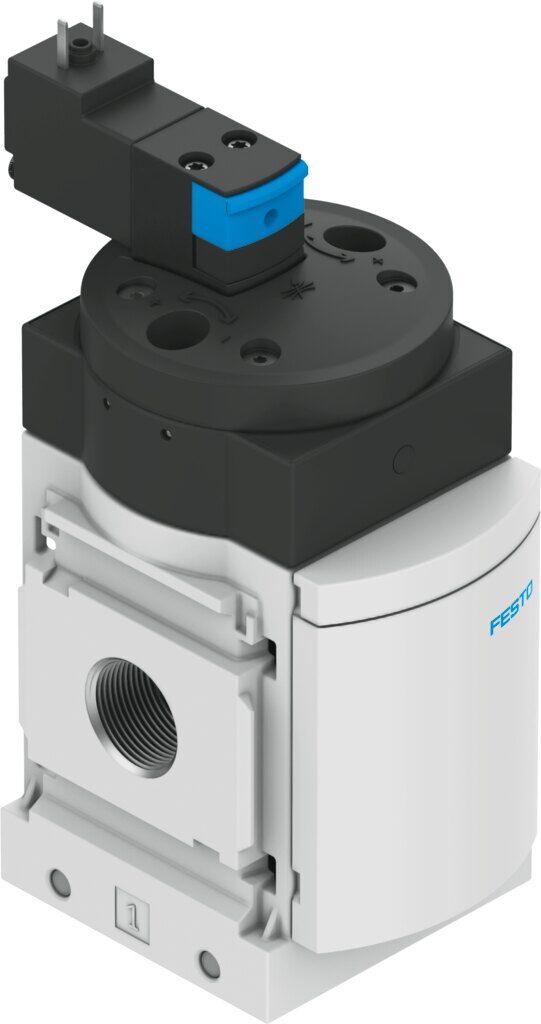

Soft start valve

MS6-DE-1/2-V230

529801





GTIN: 4052568164317

Pneumatic connection, port 1
G1/2
Standard nominal flow rate (standardised to DIN 1343)
6450 l/min
Operating pressure
4 bar - 18 bar
Type of actuation
Electric

Technical Data

  • Type of actuationElectric
  • Mounting positionoptional
  • Manual overrideDetenting Non-detenting
  • DesignPiston seat
  • Type of resetMechanical spring
  • Type of pilotingPilot actuated
  • Pilot air supplyInternal
  • Flow directionNon-reversible

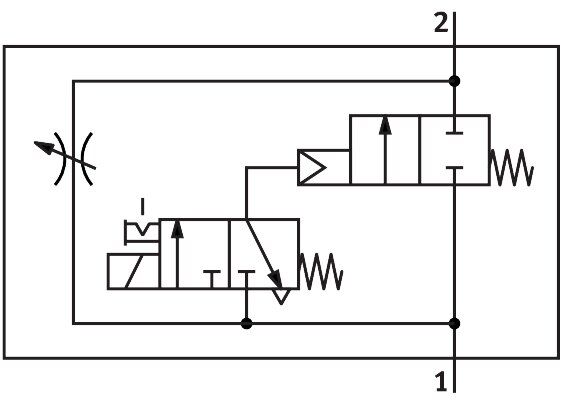

  • Symbol00991501
  • Valve function2/2
  • Switching position indicatorWith accessories
  • Operating pressure4 bar ... 18 bar
  • b value0.39
  • C value28.97 l/sbar
  • Standard nominal flow rate (standardised to DIN 1343)6450 l/min
  • Duty cycle100%
  • Characteristic coil data230 V AC: 50/60 Hz, pick-up power 3.0 VA, holding power 2.4 VA
  • Approvalc UL - Recognized (OL)
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gas
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Suitable for use with foodSee supplementary material information
  • Media temperature-10 °C ... 60 °C
  • Degree of protectionIP65
  • Ambient temperature-10 °C ... 60 °C
  • Product weight680 g
  • Electrical connectionType C Plugs To DIN EN 175301-803 Square design
  • Signal status displayWith accessories
  • Type of mountingWith accessories
  • Pneumatic connection, port 1G1/2
  • Pneumatic connection, port 2G1/2
  • Note on materialsRoHS-compliant
  • Material sealsNBR
  • Material housingDie-cast aluminium



SKU 529801
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
