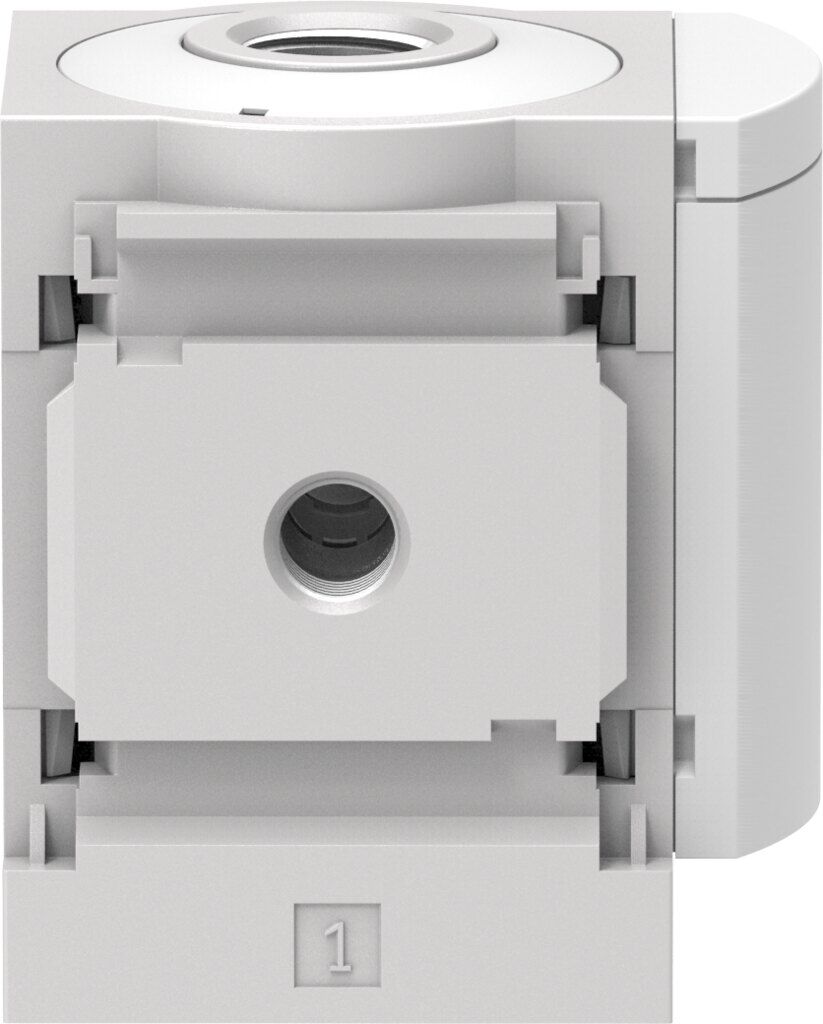

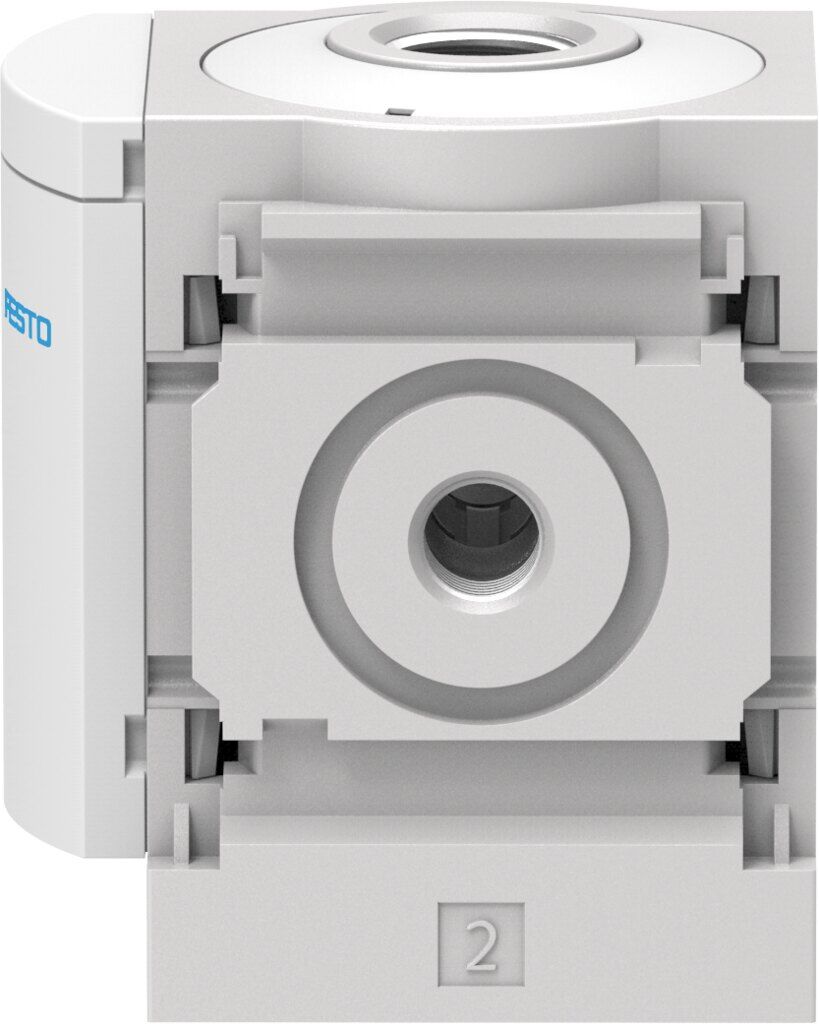

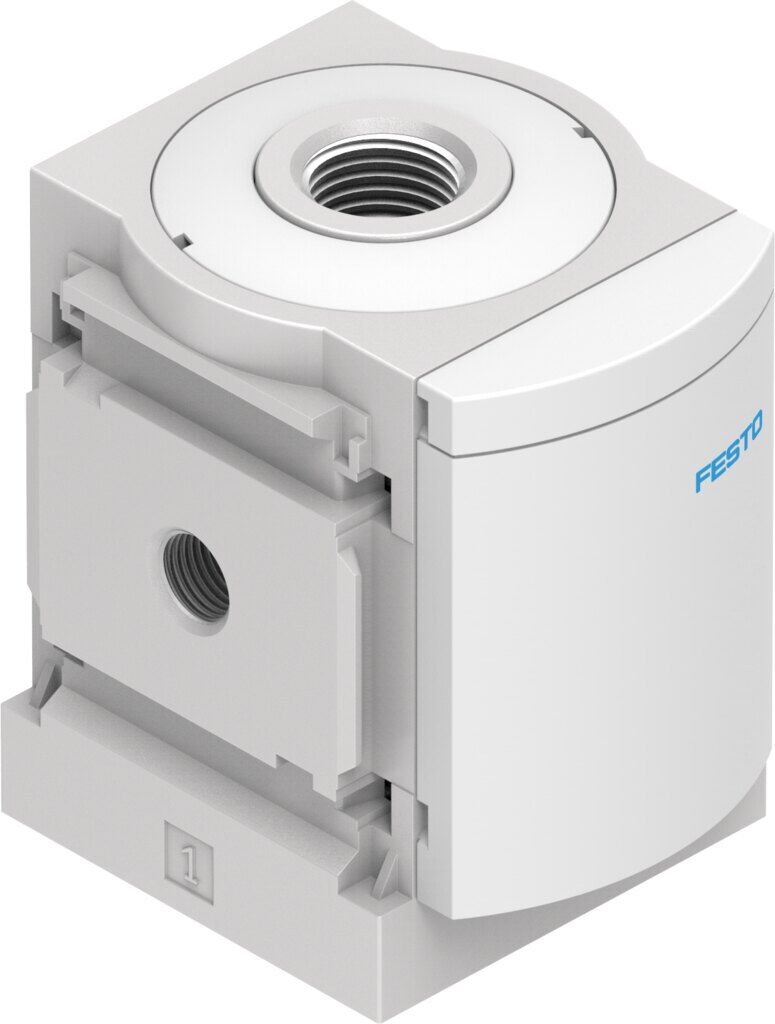

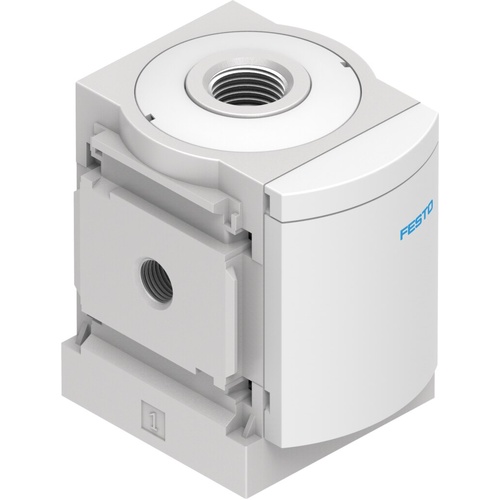

Branching module

MS6-FRM-1/4

529857





GTIN: 4052568085452

Pneumatic connection, port 1
G1/4
Standard nominal flow rate in main flow direction 1->2
4200 l/min
Operating pressure
0 bar - 20 bar

Technical Data

  • Mounting positionoptional
  • DesignBranching module
  • Symbol00991510
  • Operating pressure0 bar ... 20 bar
  • Standard nominal flow rate in main flow direction 1->24200 l/min
  • Standard nominal flow rate, outlet upwards6000 l/min
  • Standard nominal flow rate, outlet downwards6400 l/min
  • Operational voltage range AC0 V ... 250 V
  • Operational voltage range DC0 V ... 125 V
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gas
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Storage temperature-10 °C ... 60 °C
  • Suitable for use with foodSee supplementary material information
  • Media temperature-10 °C ... 60 °C
  • Ambient temperature-10 °C ... 60 °C
  • Product weight458 g
  • Pneumatic connection, port 1G1/4
  • Pneumatic connection, port 2G1/4
  • Pneumatic connection, port 3G1/2
  • Pneumatic connection, port 4G1/2
  • Note on materialsRoHS-compliant
  • Material housingDie-cast aluminium





SKU 529857
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
