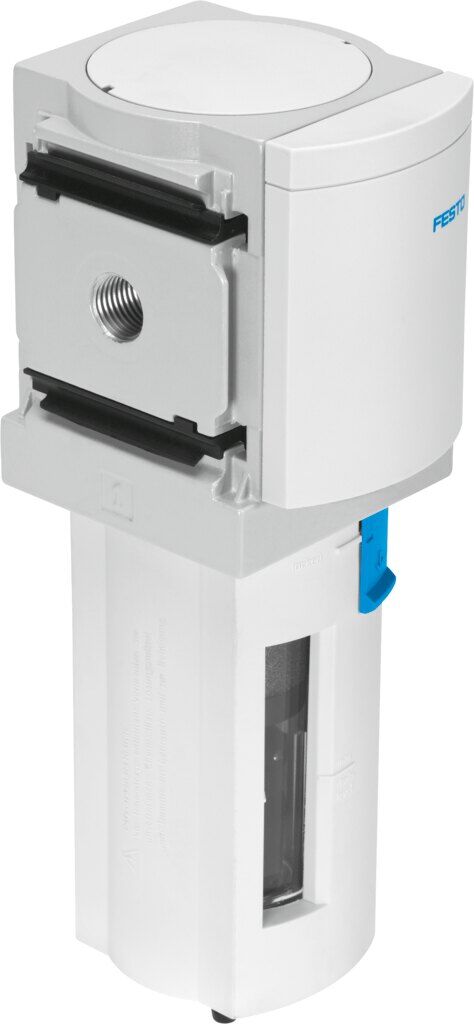

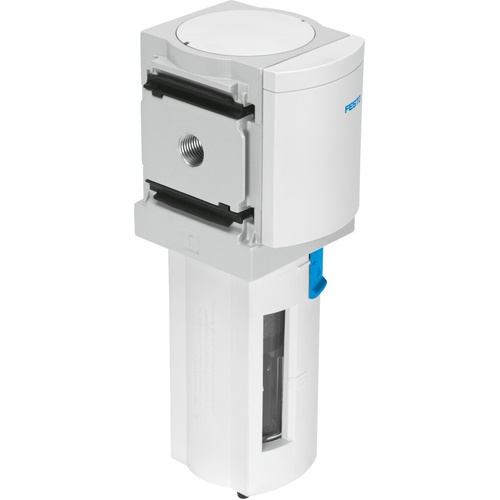

Fine filter

MS6-LFM-1/2-BRV

530506





GTIN: 4052568164973

Pneumatic connection, port 1
G1/2
Operating pressure
2 bar - 12 bar
Ambient temperature
-10 °C - 60 °C
Grade of filtration
1 µm

Technical Data

  • SeriesMS
  • Size6
  • DesignFibre filter
  • Grade of filtration1 µm
  • Condensate drainManual, non-detenting
  • Symbol00991520
  • Operating pressure0.2 MPa ... 1.2 MPa
  • Operating pressure2 bar ... 12 bar
  • Operating pressure29 psi ... 174 psi
  • Operating mediumCompressed air to ISO 8573-1:2010 [6:-:4] Inert gas
  • Air purity class at outputCompressed air to ISO 8573-1:2010:[5:-:3]
  • Max. standard flow rate for clean air class950 l/min
  • Min. standard flow rate for clean air class140 l/min
  • Filter efficiency99.99 %
  • Max. condensate volume38 ml
  • Bowl guardPlastic bowl guard
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Suitable for use with foodSee supplementary material information
  • Media temperature-10 °C ... 60 °C
  • Ambient temperature-10 °C ... 60 °C
  • Storage temperature-10 °C ... 60 °C
  • Filter efficiency, fine particles99 %
  • Residual oil content0.5 mg/m³
  • Filter efficiency, oil aerosol90 %
  • Type of mountingWith accessories
  • Mounting positionVertical +/-5°
  • Pneumatic connection, port 1G1/2
  • Pneumatic connection, port 2G1/2
  • Material housingDie-cast aluminium
  • Material filterBorosilicate fibre
  • Material bowlPC
  • Material sealsNBR
  • Note on materialsRoHS-compliant
  • Product weight600 g



SKU 530506
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
