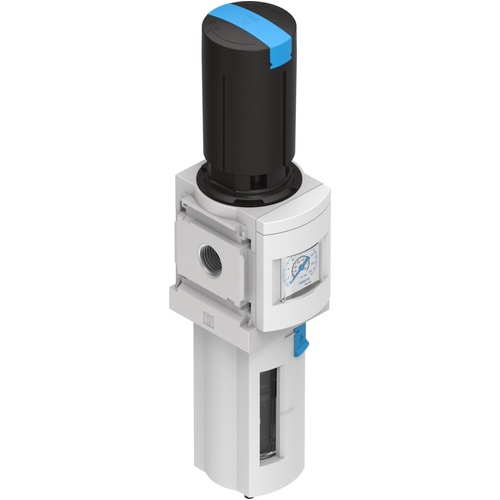

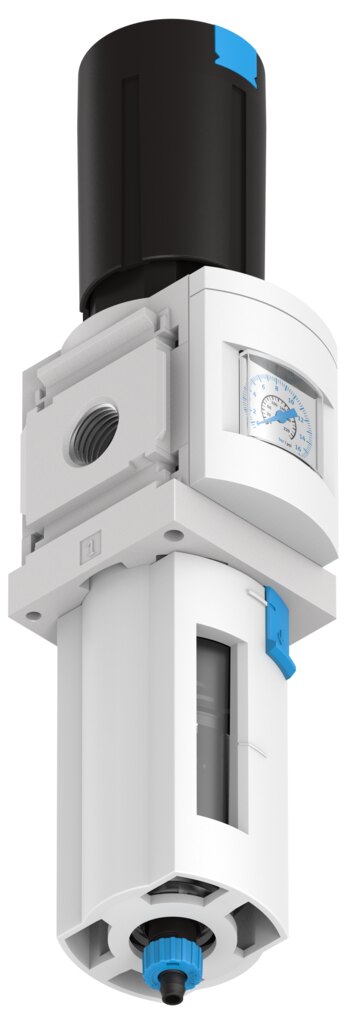

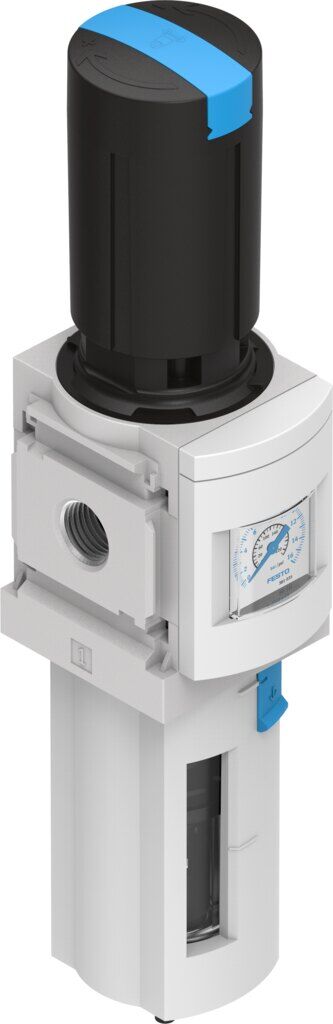

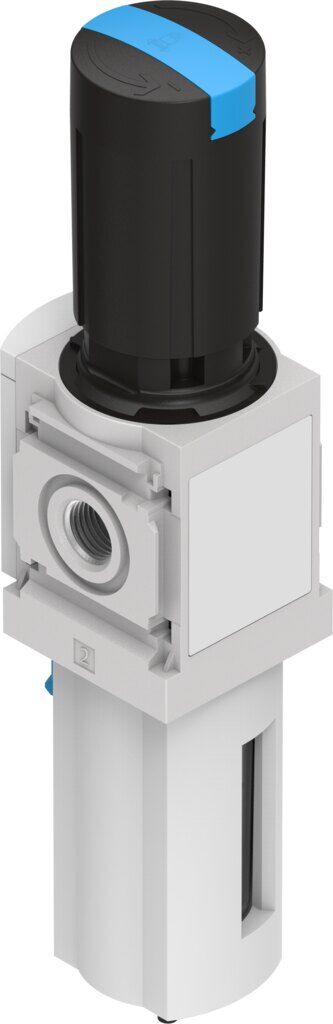

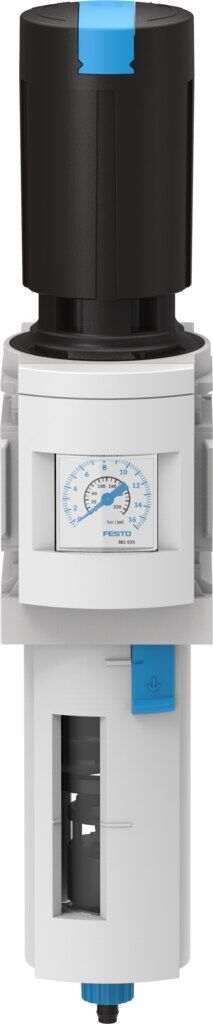

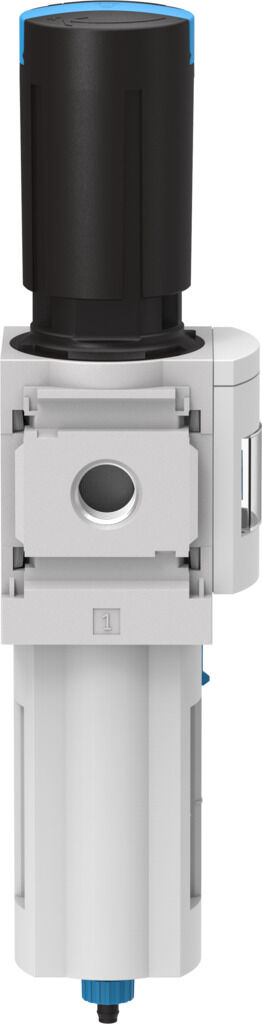

Filter regulator

MS6-LFR-1/2-D7-ERV-AS

Pneumatic connection, port 1
G1/2
Standard nominal flow rate (standardised to DIN 1343)
4500 l/min
Pressure regulation range
0.5 bar - 12 bar
Grade of filtration
40 µm

529190

Technical Data

  • Size6
  • SeriesMS
  • Actuator lockRotary knob with detent can be closed with accessories
  • Mounting positionVertical +/-5°
  • Grade of filtration40 µm
  • Condensate drainFully automatic Manual, non-detenting
  • DesignFilter regulator with pressure gauge
  • Max. condensate volume38 ml
  • Controller functionOutput pressure constant With secondary venting
  • Bowl guardPlastic bowl guard
  • Degree of condensate separation>75 %

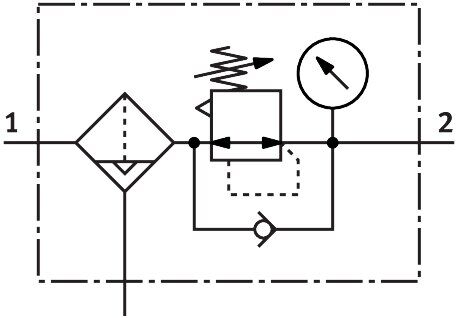

  • Symbol00991587
  • Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge
  • Operating pressure0.2 MPa ... 1.2 MPa
  • Operating pressure2 bar ... 12 bar
  • Pressure regulation range0.5 bar ... 12 bar
  • Max. pressure hysteresis0.025 MPa
  • Max. pressure hysteresis0.25 bar
  • Max. pressure hysteresis3.625 psi
  • Standard nominal flow rate (standardised to DIN 1343)4500 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:-] Inert gases
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Storage temperature-10 °C ... 60 °C
  • Suitable for use with foodSee supplementary material information
  • Air purity class at outputCompressed air to ISO 8573-1:2010 [7:4:4]
  • Media temperature-10 °C ... 60 °C
  • Ambient temperature-10 °C ... 60 °C
  • Pore size<40 µm
  • Product weight875 g
  • Type of mountingWith accessories
  • Pneumatic connection, port 1G1/2
  • Pneumatic connection, port 2G1/2
  • Note on materialsRoHS-compliant
  • Material control panelPA POM
  • Material sealsNBR
  • Material filterPE
  • Material housingDie-cast aluminium
  • Material membraneNBR
  • Material bowlPC
  • Material separating platePOM

Filter regulator



GTIN: 4052568163716

Downloads



MS_LFR_EN.PDF

Technical data

Reliability datasheet

Links

Spare parts



Pneumatic connection, port 1 G1/2

Standard nominal flow rate (standardised to DIN 1343) 4500 l/min

Pressure regulation range 0.5 bar - 12 bar

Grade of filtration 40 µm

Filter regulator

Filter regulator

SKU 529190
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
