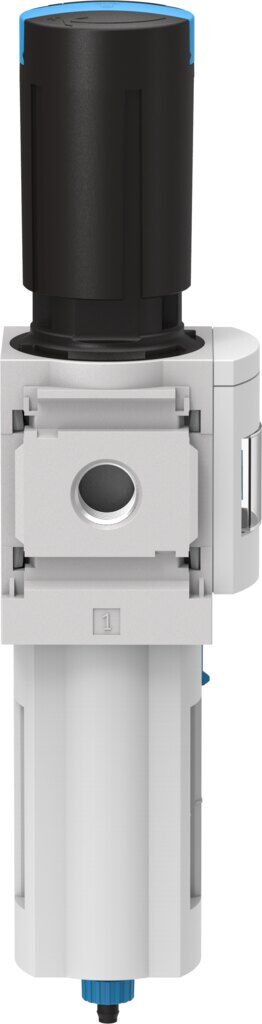

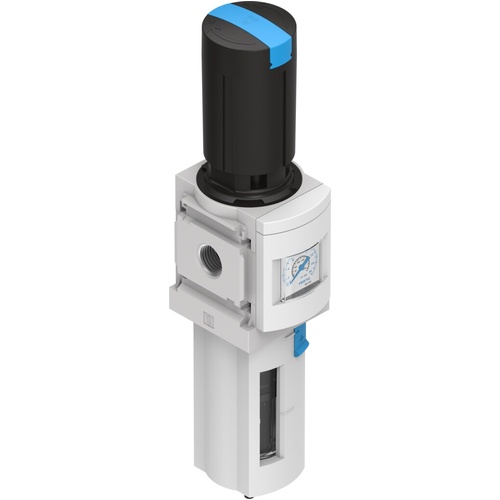

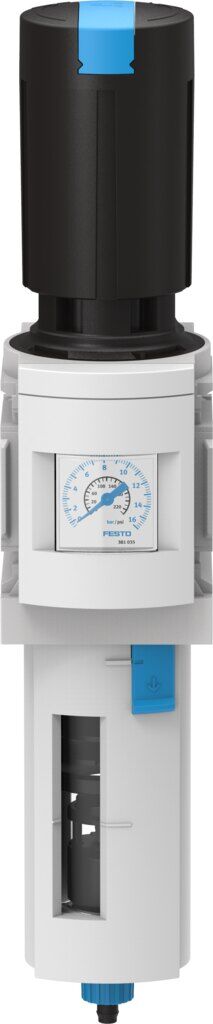

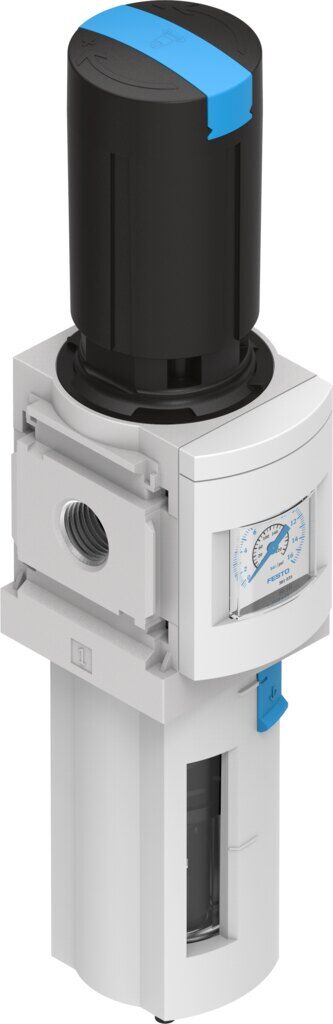

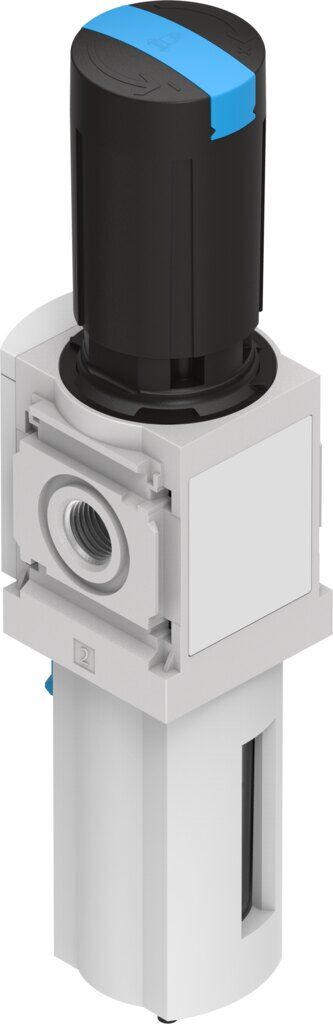

Filter regulator

Filter regulator

MS6-LFR-3/8-D7-ERV-AS

529230





GTIN: 4052568163914

Downloads



MS_LFR_EN.PDF

Technical data

Reliability datasheet

Links

Spare parts



Pneumatic connection, port 1 G3/8

Standard nominal flow rate (standardised to DIN 1343) 4000 l/min

Pressure regulation range 0.5 bar - 12 bar

Grade of filtration 40 µm



Technical Data

  • Size 6
  • Series MS
  • Actuator lock Rotary knob with detent can be closed with accessories
  • Mounting position Vertical +/-5°
  • Grade of filtration 40 µm
  • Condensate drain Fully automatic Manual, non-detenting
  • Design Filter regulator with pressure gauge
  • Max. condensate volume 38 ml
  • Controller function Output pressure constant With secondary venting
  • Bowl guard Plastic bowl guard
  • Degree of condensate separation >75 %

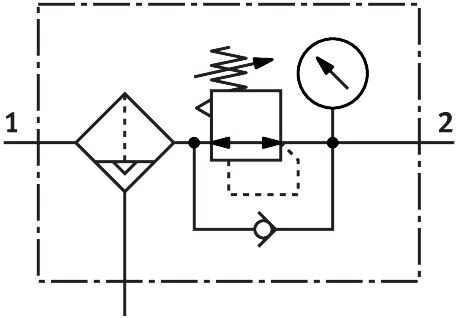

  • Symbol 00991587
  • Pressure gauge (ANALOG) or Pressure display (DIGITAL) With pressure gauge
  • Operating pressure 0.2 MPa ... 1.2 MPa
  • Operating pressure 2 bar ... 12 bar
  • Pressure regulation range 0.5 bar ... 12 bar
  • Max. pressure hysteresis 0.025 MPa
  • Max. pressure hysteresis 0.25 bar
  • Max. pressure hysteresis 3.625 psi
  • Standard nominal flow rate (standardised to DIN 1343) 4000 l/min
  • Operating medium Compressed air to ISO 8573-1:2010 [7:4:-] Inert gases
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformity VDMA24364-B1/B2-L
  • Storage temperature -10 °C ... 60 °C
  • Suitable for use with food See supplementary material information
  • Air purity class at output Compressed air to ISO 8573-1:2010 [7:4:4]
  • Media temperature -10 °C ... 60 °C
  • Ambient temperature -10 °C ... 60 °C
  • Pore size <40 µm
  • Product weight 875 g
  • Type of mounting With accessories
  • Pneumatic connection, port 1 G3/8
  • Pneumatic connection, port 2 G3/8
  • Note on materials RoHS-compliant
  • Material control panel PA POM
  • Material seals NBR
  • Material filter PE
  • Material housing Die-cast aluminium
  • Material membrane NBR
  • Material bow lPC
  • Material separating plate POM
SKU 529230
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
