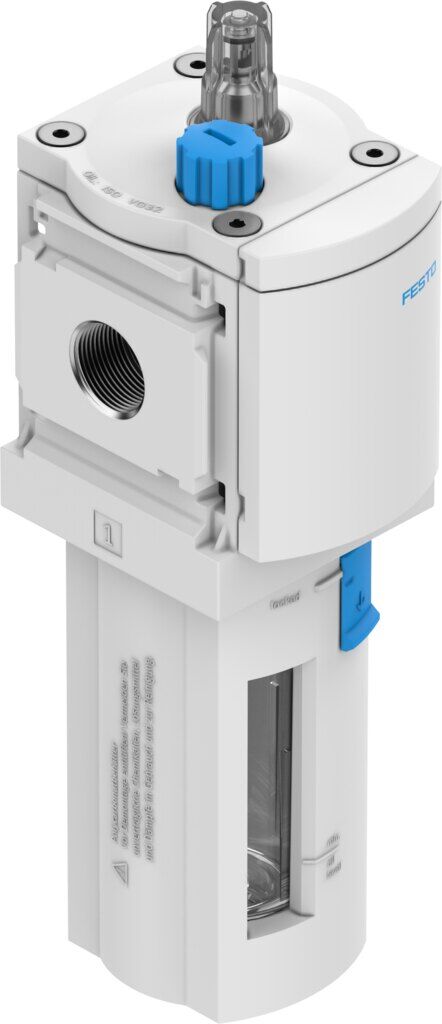

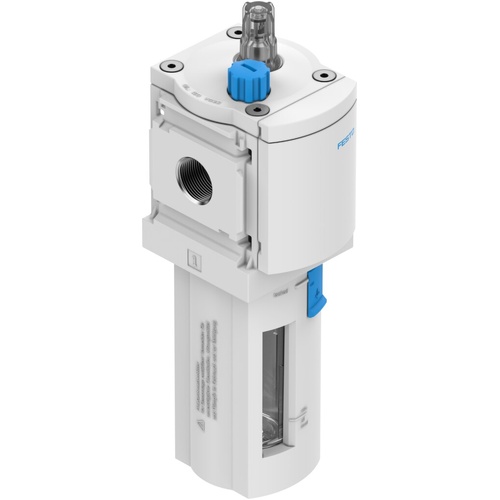

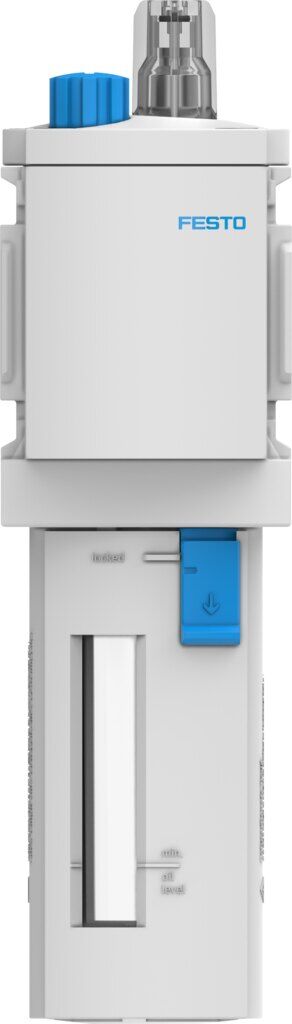

Lubricator

MS6-LOE-3/8-R

529783





GTIN: 4052568006792

Pneumatic connection, port 1
G3/8
Standard nominal flow rate (standardised to DIN 1343)
5300 l/min
Operating pressure
1 bar - 16 bar
Min. flow rate for lubricator function
50 l/min

Technical Data

  • Size6
  • SeriesMS
  • Mounting positionVertical +/-5°
  • DesignProportional standard mist lubricator
  • Max. oil capacity75 cm³
  • Bowl guardPlastic bowl guard
  • Symbol00991532
  • Operating pressure1 bar ... 16 bar
  • Min. flow rate for lubricator function50 l/min
  • Standard nominal flow rate (standardised to DIN 1343)5300 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gas
  • Note on operating and pilot mediumLubricated operation possible
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Storage temperature-10 °C ... 60 °C
  • Suitable for use with foodSee supplementary material information
  • Media temperature-10 °C ... 60 °C
  • Oil viscosityISO VG 32
  • Ambient temperature-10 °C ... 60 °C
  • Product weight600 g
  • Type of mountingWith accessories
  • Pneumatic connection, port 1G3/8
  • Pneumatic connection, port 2G3/8
  • Note on materialsRoHS-compliant
  • Material housingDie-cast aluminium
  • Material bowlPC



SKU 529783
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
