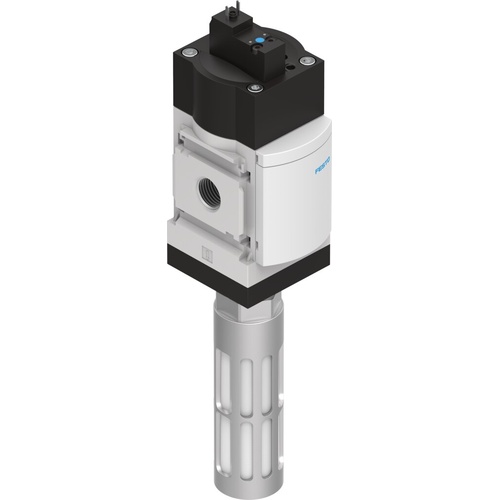

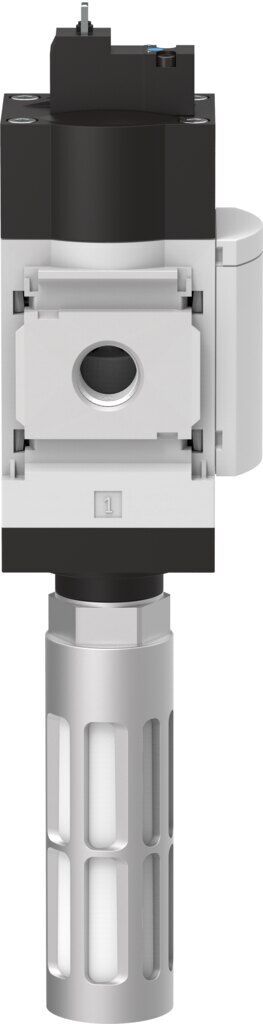

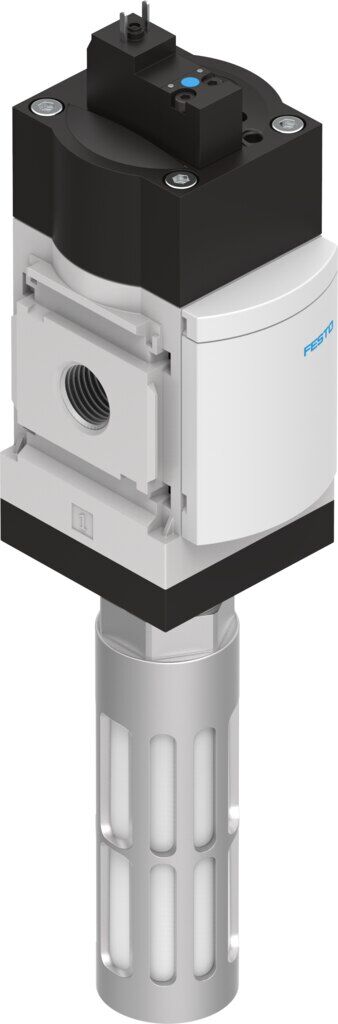

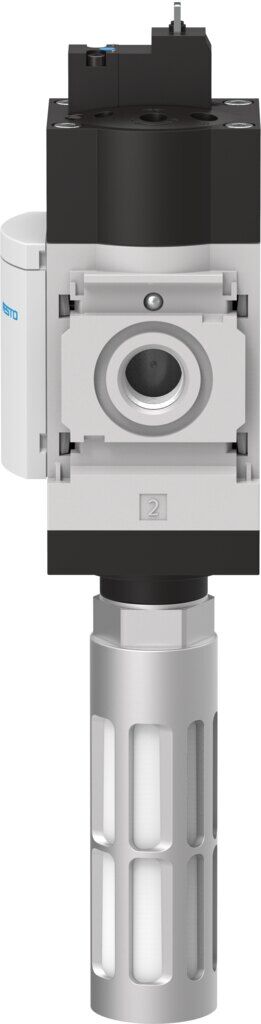

Soft start/quick exhaust valve

Technical Data

• SeriesMS
• Size6
• Grid dimension62 mm
• Safety functionExhaust Prevention of unexpected start-up (pressurisation)
• Performance Level (PL)Exhausting/category 1, performance level c Prevention of unexpected start-up (pressurisation)/category 1, performance level c
• Note on forced dynamizationSwitching frequency min. 1/month
• DesignPiston gate valve
• lapOverlap
• Type of actuationElectric
• Pilot air supplyInternal
• Sealing principleSoft
• Exhaust-air functionWithout flow control option
• Manual overrideOn pilot solenoid valves: non-detenting; on soft-start/quick exhaust valve: detenting, self-resetting
• Type of resetMechanical spring
• Type of pilotingPilot actuated

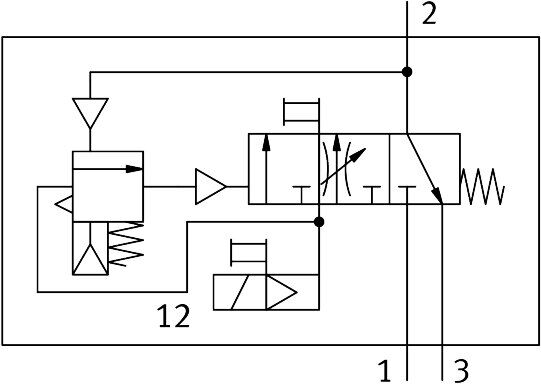

• Symbol00995813
• Valve function3/2-way, closed, monostable Soft-start function
• Operating pressure0.3 MPa ... 1 MPa
• Operating pressure3 bar ... 10 bar
• C value23.2 l/sbar
• b value0.4
• Standard nominal flow rate (standardised to DIN 1343)5700 l/min
• Standard nominal flow rate, exhaust 0.6->0 MPa (6->0 bar, 87->0 psi)7600 l/min
• Switching time off65 ms
• Switching time on370 ms
• Duty cycle100%
• Characteristic coil data24 V DC: 1.8 W
• Permissible voltage fluctuations+/- 10 %
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Corrosion resistance class CRC2 - Moderate corrosion stress
• Note on materialsRoHS-compliant
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Degree of protectionIP65 With plug socket
• Media temperature0 °C ... 60 °C
• Ambient temperature0 °C ... 60 °C
• Storage temperature-10 °C ... 60 °C
• Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
• Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
• CE mark (see declaration of conformity)To EU EMC Directive To EC Machinery Directive In accordance with EU RoHS Directive
• UKCA marking (see declaration of conformity)To UK regulations for machines To UK RoHS instructions
• Suitable for use with foodSee supplementary material information
• Type of mountingEither: In-line installation With accessories
• Mounting positionoptional
• Product weight1006 g
• Pneumatic connection, port 1G1/2
• Pneumatic connection, port 2G1/2
• Pneumatic connection, port 3G3/4
• Electrical connection2-pin Type C Plugs To EN 175301-803
• Material housingDie-cast aluminium
• Material sealsNBR
• Material piston rodHigh-alloy stainless steel
