The product you searched for is in phase-out

Product is planned to be discontinued. Do not use for new designs.

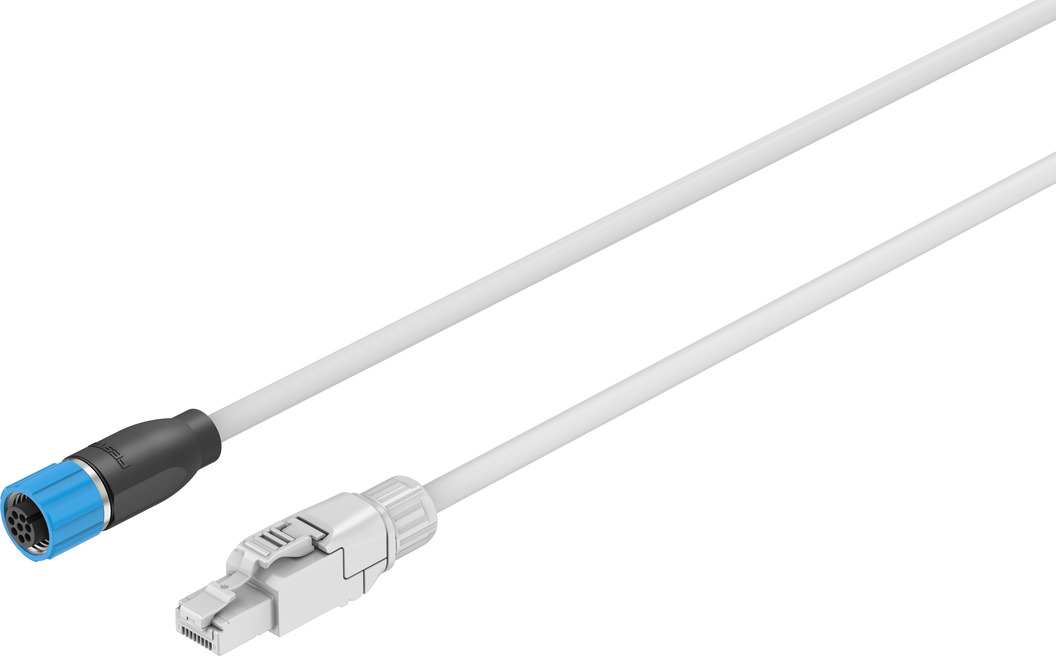

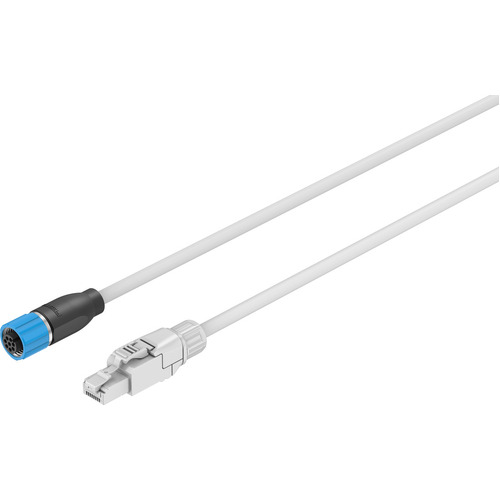

Encoder cable

NEBM-M12G8-E-15-N-R3G8

5212316

GTIN: 4052568420505

Downloads

Product information

Technical data

CAD data

Links

Spare parts

Pieces



Electrical connection 1, connection type Socket

Electrical connection 1, connector system M12x1, A-coded to EN 61076-2-101

Electrical connection 2, connection type Plugs

Electrical connection 2, connector system RJ45

Cable length 15 m

Technical Data

• Cable designationWithout inscription label holder
• Product weight810 g
• Electrical connection 1, functionField device side
• Electrical connection 1, designRound
• Electrical connection 1, connection typeSocket
• Electrical connection 1, cable outletStraight
• Electrical connection 1, connector systemM12x1, A-coded to EN 61076-2-101
• Electrical connection 1, number of connections/cores8
• Electrical connection 1, used connections/cores8
• Electrical connection 1, connection pattern00992265
• Electrical connection 2, functionController side
• Electrical connection 2, designAngular
• Electrical connection 2, connection typePlugs
• Electrical connection 2, cable outletStraight
• Electrical connection 2, connector systemRJ45
• Electrical connection 2, number of connections/cores8
• Electrical connection 2, used connections/cores8
• Electrical connection 2, connection pattern00995653
• Operational voltage range DC0 V ... 30 V
• Nominal operating voltage DC24 V
• Operational voltage range AC0 V ... 30 V
• Nominal operating voltage AC24 V
• Shieldingyes
• Cable length15 m
• Cable characteristicSuitable for energy chains
• Bending radius, moving cable≥48 mm
• Cable diameter5.8 mm
• Cable structure1 x 4 x 0.15 mm² + 4 x 1 x 0.34 mm²
• Nominal cross section conductor0.15 mm²
• Degree of protectionIP65
• Note on degree of protectionIP30 for Sub-D plug connector In assembled state
• Ambient temperature-40 °C ... 80 °C
• Ambient temperature with moving cable-5 °C ... 80 °C
• CE mark (see declaration of conformity)In accordance with EU RoHS Directive
• CE marking (see declaration of conformity)To UK RoHS instructions
• LABS (PWIS) conformityVDMA24364 zone III
• Note on materialsRoHS-compliant
• Corrosion resistance class CRC0 - No corrosion stress
• Material cable sheathTPE-U(PUR)
• Cable sheath colourBlack
