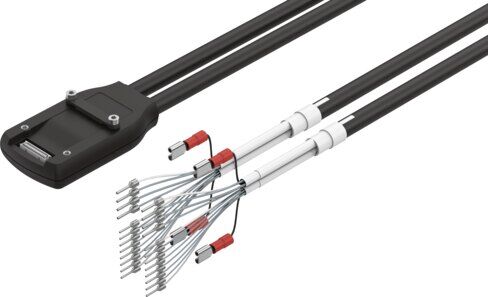

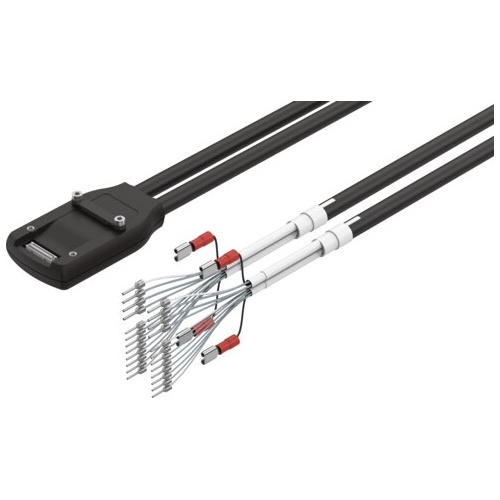

Motor cable

Technical Data

• Conforms to standardDIN 47100
• Cable designationWithout inscription label holder
• Frequency of connection30
• Product weight770 g
• Electrical connection 1, functionField device side
• Electrical connection 1, designAngular
• Electrical connection 1, connection typePlugs
• Electrical connection 1, cable outletAngled
• Electrical connection 1, note on cable outlet90°
• Electrical connection 1, connector systemConnection pattern F1
• Electrical connection 1, number of connections/cores31
• Electrical connection 1, used connections/cores31
• Electrical connection 1, type of mountingSnap-locking
• Electrical connection 1, connection pattern00995929
• Electrical connection 2, functionController side
• Electrical connection 2, connection typeCable
• Electrical connection 2, connector systemOpen end
• Electrical connection 2, number of connections/cores28
• Electrical connection 2, used connections/cores28
• Operational voltage range DC0 V ... 50 V
• Nominal operating voltage DC24 V
• Current rating at 40° C0.5 A
• Immunity to surge0.25 kV
• Cable length2.6 m
• Cable characteristicSuitable for energy chains
• Test conditions cableTest conditions on request
• Bending radius, fixed cable≥49.5 mm
• Bending radius, moving cable≥74.25 mm
• Cable diameter9.9 mm
• Cable diameter tolerance± 0.2 mm
• Cable structure1 x (6 x 0.35 mm²) + 2 x (4 x 0.15 mm²)
• Nominal cross section conductor0.35 mm²
• Wire endsWire ferrule
• Degree of protectionIP20
• Note on degree of protectionIn assembled state
• Ambient temperature-20 °C ... 75 °C
• Ambient temperature with moving cable-5 °C ... 70 °C
• Storage temperature-25 °C ... 55 °C
• CE mark (see declaration of conformity)In accordance with EU RoHS Directive
• UKCA marking (see declaration of conformity)To UK RoHS instructions
• LABS (PWIS) conformityVDMA24364 zone III
• Note on materialsRoHS-compliant
• Pollution degree1
• Corrosion resistance class CRC1 - Low corrosion stress
• Material cable sheathTPE-U(PUR)
• Cable sheath colourBlack
• Material housingPA
• Housing colourBlack
• Material electrical contactCopper alloy, tin-plated
