OIL COOLER-GA 160 COMPR.

Not usually held in stock. Price includes air freight from factory.

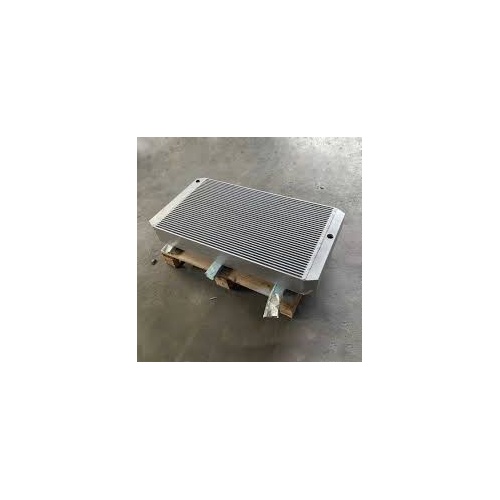

1614918900 Oil Cooler Suitable for Atlas Copco Air Compressor GA160 1614-9189-00

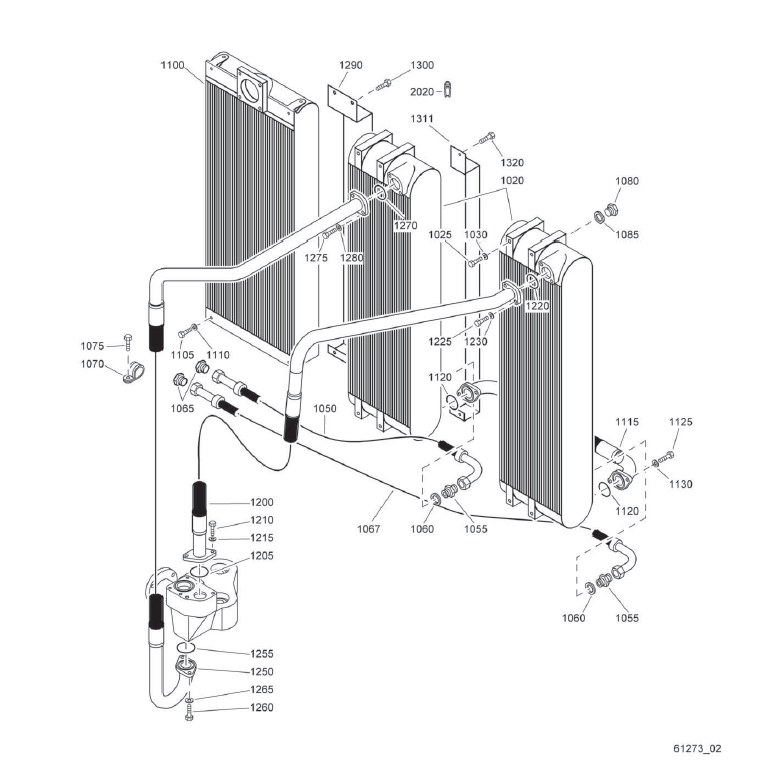

1020 2 Oil cooler
1614 9358 00 GA90
1614 9188 00 GA110
1614 9365 00 GA132
1614 9189 00 GA160
1025 0147 1323 03 8 Bolt
1030 0300 8019 00 8 Washer
1050 1 Hose assembly
0574 8235 32 GA90, GA110
0574 8235 37 GA132, GA160
1055 1079 5840 15 2 Nipple
1060 0661 1000 27 2 Seal washer
1065 1614 9252 00 2 Plug
1067 1 Hose assembly
0574 8235 42 GA90, GA110
0574 8235 45 GA132, GA160
1070 0346 1012 44 1 Pipe clamp
1075 1619 5337 01 1 Bolt
1080 0686 3716 02 2 Plug
1085 0661 1000 27 2 Seal washer
1100 1 Aftercooler
1614 9200 00 GA90, GA110
1614 9201 00 GA132, GA160
1105 0147 1323 03 4 Bolt
1110 0300 8019 00 4 Washer
1115 1 Hose assembly
1614 9220 00 GA90, GA110
1621 9138 00 GA132, GA160
1120 0663 2109 68 2 O-ring
1125 0147 1363 03 4 Bolt
1130 0301 2344 00 4 Washer
1200 1 Hose assembly
1614 8961 00 GA90, GA110
1621 9137 00 GA132, GA160
1205 0663 2109 68 1 O-ring
1210 2 Bolt
0147 1362 03 GA90, GA110,
GA132, GA160

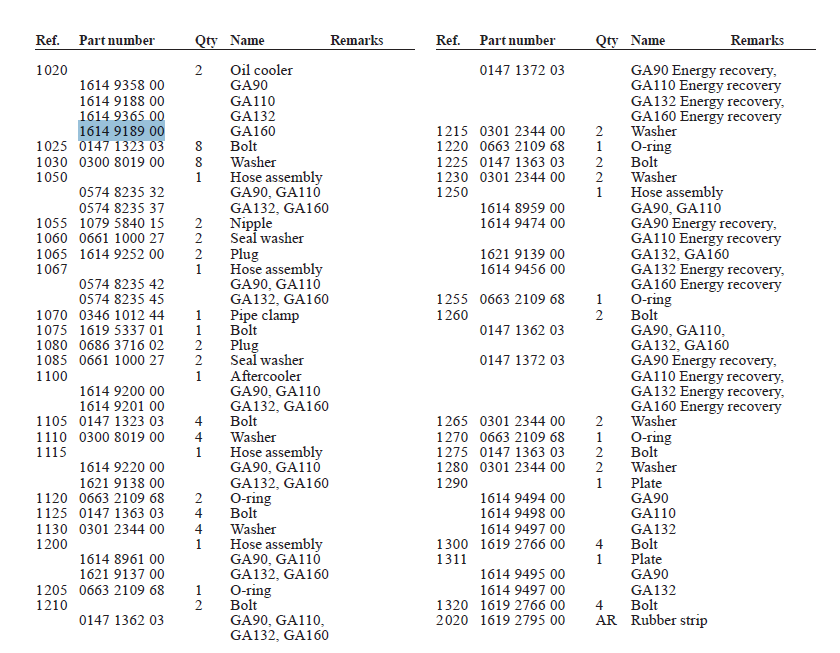

Ref. Part number Qty Name Remarks
0147 1372 03 GA90 Energy recovery,
GA110 Energy recovery
GA132 Energy recovery,
GA160 Energy recovery
1215 0301 2344 00 2 Washer
1220 0663 2109 68 1 O-ring
1225 0147 1363 03 2 Bolt
1230 0301 2344 00 2 Washer
1250 1 Hose assembly
1614 8959 00 GA90, GA110
1614 9474 00 GA90 Energy recovery,
GA110 Energy recovery
1621 9139 00 GA132, GA160
1614 9456 00 GA132 Energy recovery,
GA160 Energy recovery
1255 0663 2109 68 1 O-ring
1260 2 Bolt
0147 1362 03 GA90, GA110,
GA132, GA160
0147 1372 03 GA90 Energy recovery,
GA110 Energy recovery,
GA132 Energy recovery,
GA160 Energy recovery
1265 0301 2344 00 2 Washer
1270 0663 2109 68 1 O-ring
1275 0147 1363 03 2 Bolt
1280 0301 2344 00 2 Washer
1290 1 Plate
1614 9494 00 GA90
1614 9498 00 GA110
1614 9497 00 GA132
1300 1619 2766 00 4 Bolt
1311 1 Plate
1614 9495 00 GA90
1614 9497 00 GA132
1320 1619 2766 00 4 Bolt
2020 1619 2795 00 AR Rubber strip
