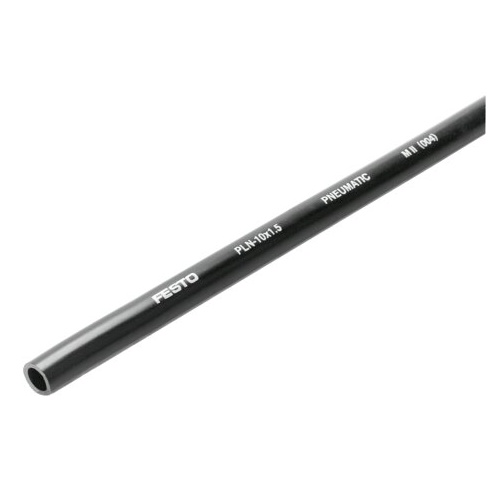

Plastic tubingPLN-12X1,75-SW

195284

GTIN: 4052568044589

Outside diameter
12 mm
Inside diameter
8.4 mm
Temperature-dependent operating pressure
-0.95 bar - 14 bar
Ambient temperature
-30 °C - 80 °C



Technical Data Plastic tubing PLN-12X1,75-SW

  • Outside diameter12 mm
  • Flow-relevant bending radius65 mm
  • Inside diameter8.4 mm
  • Min. bending radius23 mm
  • Temperature-dependent operating pressure-0.095 MPa ... 1.4 MPa
  • Temperature-dependent operating pressure-0.95 bar ... 14 bar
  • Temperature-dependent operating pressure-13.775 psi ... 203 psi
  • Note on operating pressureWater: max. 0.8 MPa at 0 - 50 °C
  • ApprovalGerman Technical Control Board (TÜV)
  • Certificate issuing authorityB 013277 0527 00
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Cleanroom suitability, measured according to ISO 14644-14Element installed statically, no meaningful evaluation possible according to ISO 14644-1
  • Suitable for use with foodSee supplementary material information
  • Ambient temperature-30 °C ... 80 °C
  • Product weight according to length0.054 kg/m
  • Pneumatic connectionFor push-in connector outside diameter of 12 mm
  • ColourBlack
  • Note on materialsRoHS compliant
  • Material tubingPackaging unit
SKU 195284
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
