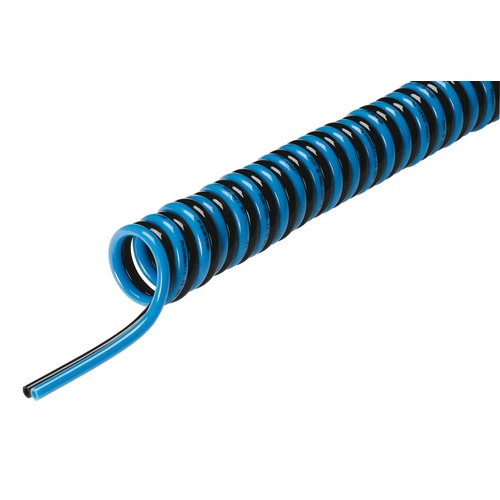

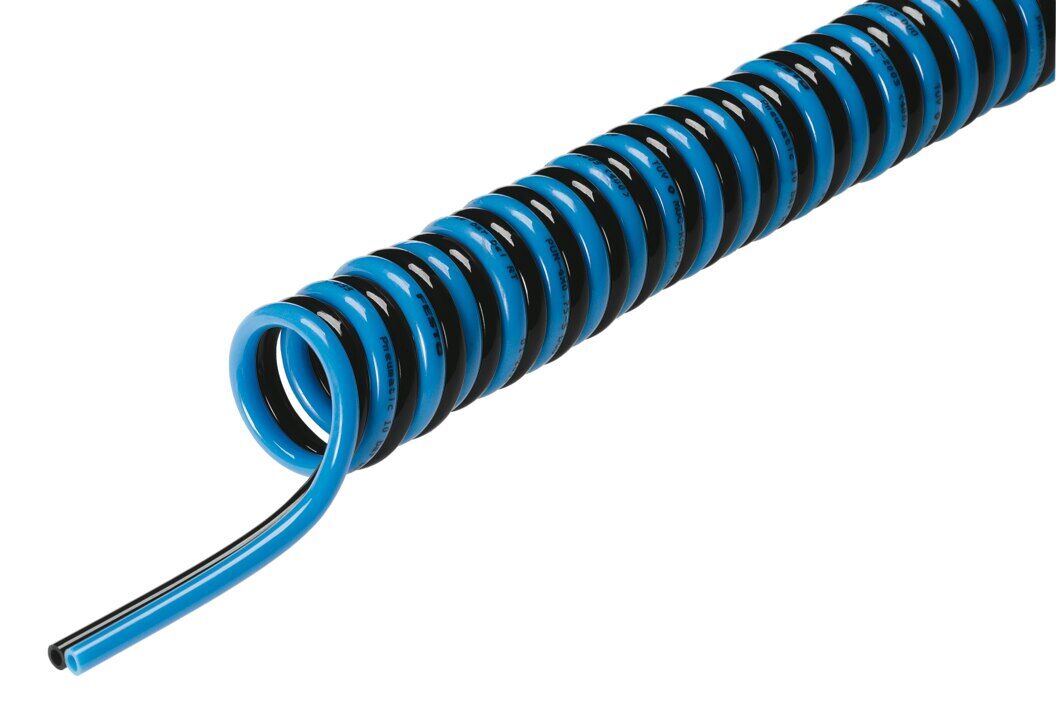

DUO spiral plastic tubing

PUN-4X0,75-S-1,5-DUO-BS

197619





GTIN: 4052568082574

Outside diameter
4 mm
Inside diameter
2.6 mm
Working length
1.5 m
Temperature-dependent operating pressure
-0.95 bar - 10 bar
Ambient temperature
-35 °C - 60 °C

Technical Data

  • Working length1.5 m
  • Outside diameter4 mm
  • Block length0.668 m
  • Inside diameter2.6 mm
  • Winding diameter25 mm
  • Number of turns70
  • Temperature-dependent operating pressure-0.095 MPa ... 1 MPa
  • Temperature-dependent operating pressure-0.95 bar ... 10 bar
  • Temperature-dependent operating pressure-13.775 psi ... 145 psi
  • ApprovalGerman Technical Control Board (TÜV)
  • Certificate issuing authorityB 013277 0527 00
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Ambient temperature-35 °C ... 60 °C
  • Product weight84 g
  • Pneumatic connectionFor push-in connector O.D. 4 mm For barbed fitting I.D. 3 mm with union nut For barbed fitting I.D. 3 mm
  • ColourBlue/black
  • Shore hardnessD 52 +/-3
  • Material tubingTPE-U(PU)



SKU 197619
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
