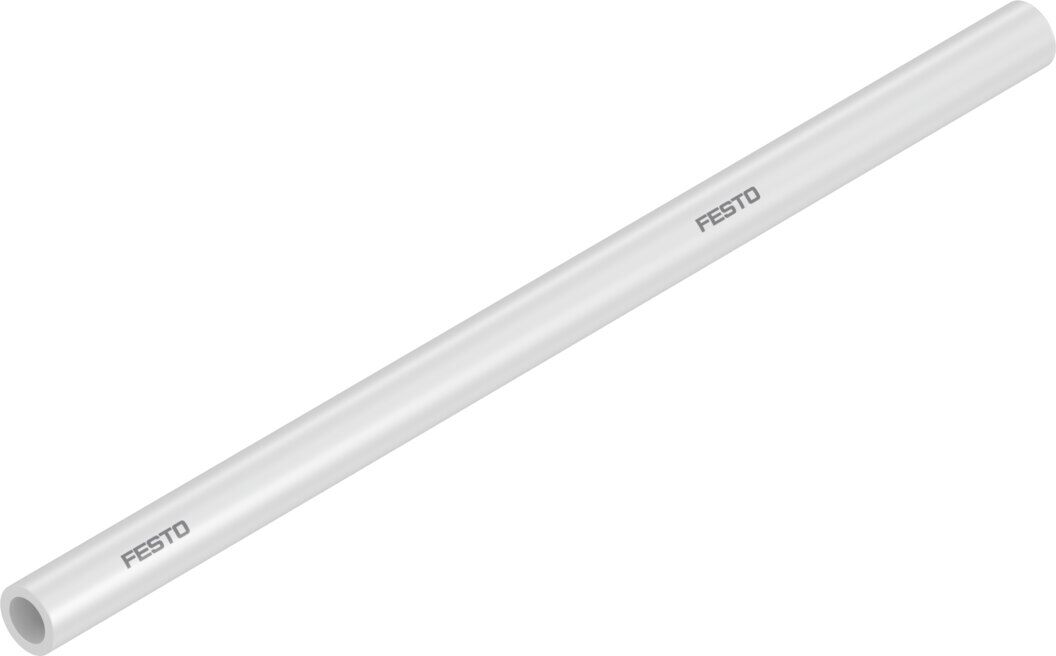

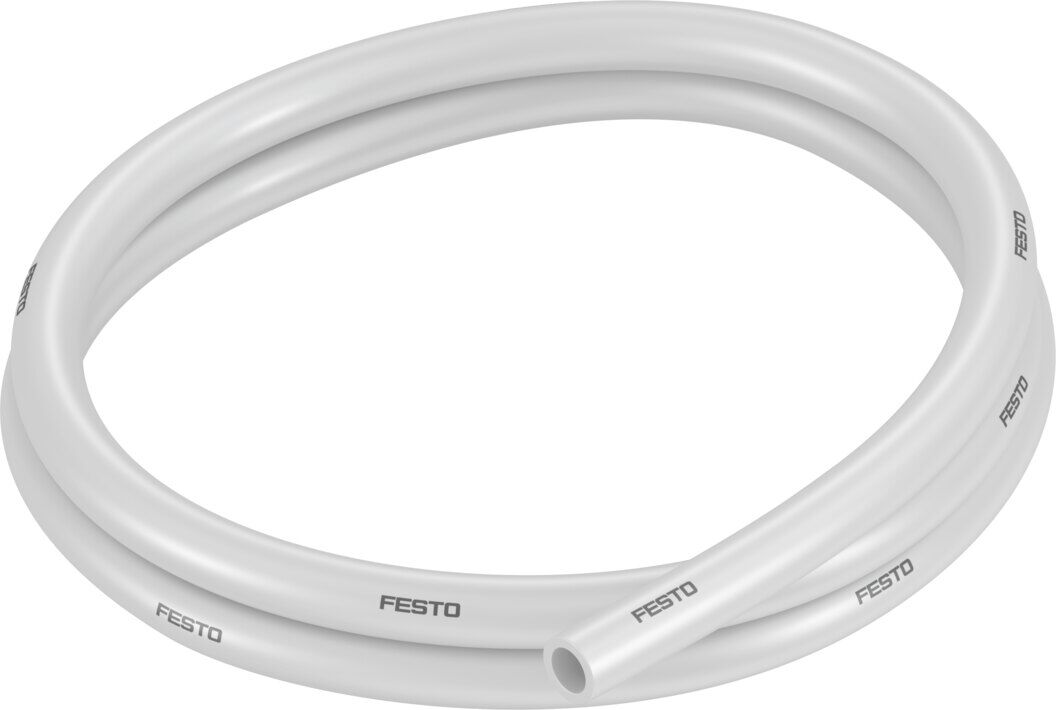

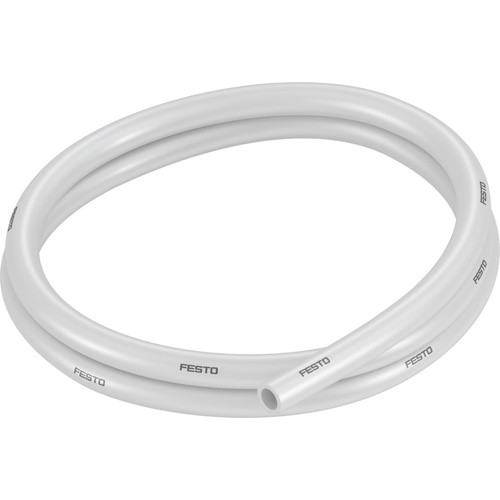

Plastic tubing (100 metre)

PUN-V0-6X1-WS

525454





GTIN: 4052568046118

Outside diameter
6 mm
Inside diameter
4 mm
Temperature-dependent operating pressure
-0.95 bar - 10 bar
Ambient temperature
-35 °C - 60 °C

Technical Data

  • Outside diameter6 mm
  • Flow-relevant bending radius26.5 mm
  • Inside diameter4 mm
  • Min. bending radius12 mm
  • Tubing characteristicsSuitable for energy chains
  • Operating pressure complete temperature range-0.095 MPa ... 0.7 MPa
  • Operating pressure complete temperature range-0.95 bar ... 7 bar
  • Operating pressure complete temperature range-13.775 psi ... 101.5 psi
  • Temperature-dependent operating pressure-0.095 MPa ... 1 MPa
  • Temperature-dependent operating pressure-0.95 bar ... 10 bar
  • Temperature-dependent operating pressure-13.775 psi ... 145 psi
  • Note on operating pressureWater: max. 0.6 MPa at max. 50°C
  • ApprovalGerman Technical Control Board (TÜV)
  • Certificate issuing authorityB 013277 0527 00
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
  • Fire test materialUL94 V-0 (3 mm) UL94 V-2 (0.75 mm)
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Ambient temperature-35 °C ... 60 °C
  • Note on ambient temperatureUnpressurised use up to 90 °C
  • Product weight according to length0.02 kg/m
  • Pneumatic connectionFor push-in connector O.D. 6 mm For barbed fitting I.D. 4 mm with union nut For barbed fitting I.D. 4 mm
  • ColourWhite
  • Note to colourDeviates from the standard colour due to flame protection
  • Shore hardnessD 54 +/-3
  • Note on materialsRoHS-compliant
  • Material tubingTPE-U(PU)






SKU 525454
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
