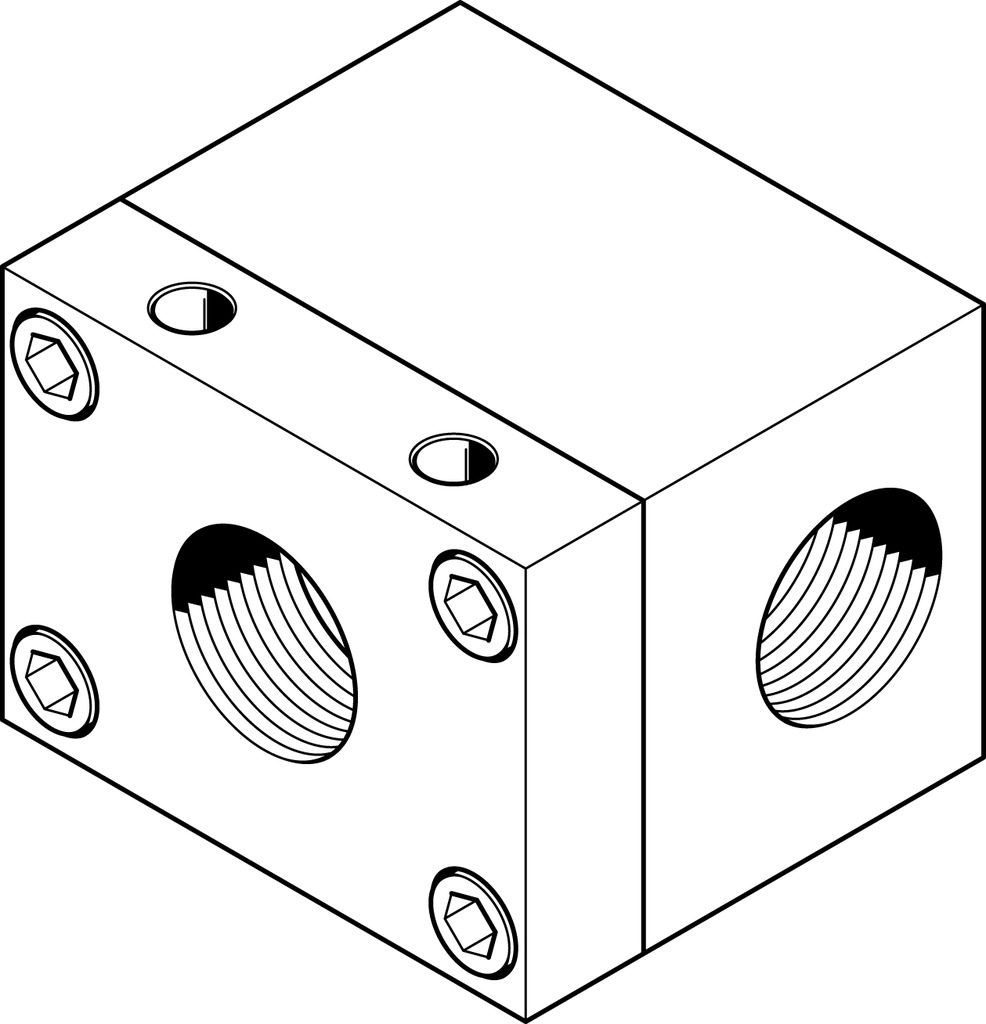

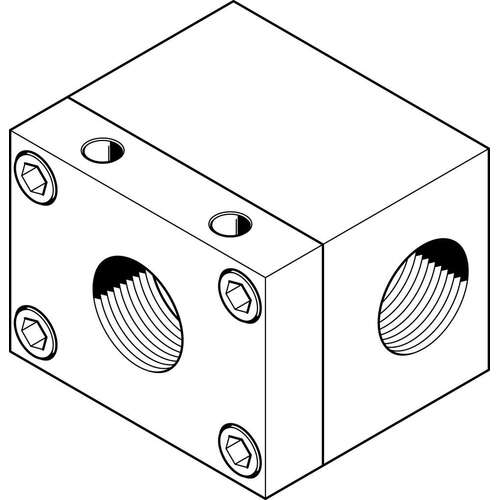

FESTO SE-3/4 Quick exhaust valve 2280

SE-3/4

$348.09
RRP $389.90
SAVE $41.81 (11%)


Quick exhaust valve

SE-3/4

2280

Technical Data

  • Valve functionQuick exhaust
  • Pneumatic connection, port 1G3/4
  • Pneumatic connection, port 2G3/4
  • Type of mountingWith through-hole
  • Standard nominal flow rate, exhaust 0.6->0.5 MPa (6->5 bar, 87->72.5 psi)7500 l/min
  • Standard nominal flow rate, air flow 0.6->0,5 MPa (6->5 bar, 87->72.5 psi)2500 l/min
  • Operating pressure0.5 bar ... 10 bar
  • Ambient temperature-20 °C ... 75 °C
  • Material housingAnodised
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Nominal size19 mm
  • Mounting positionoptional

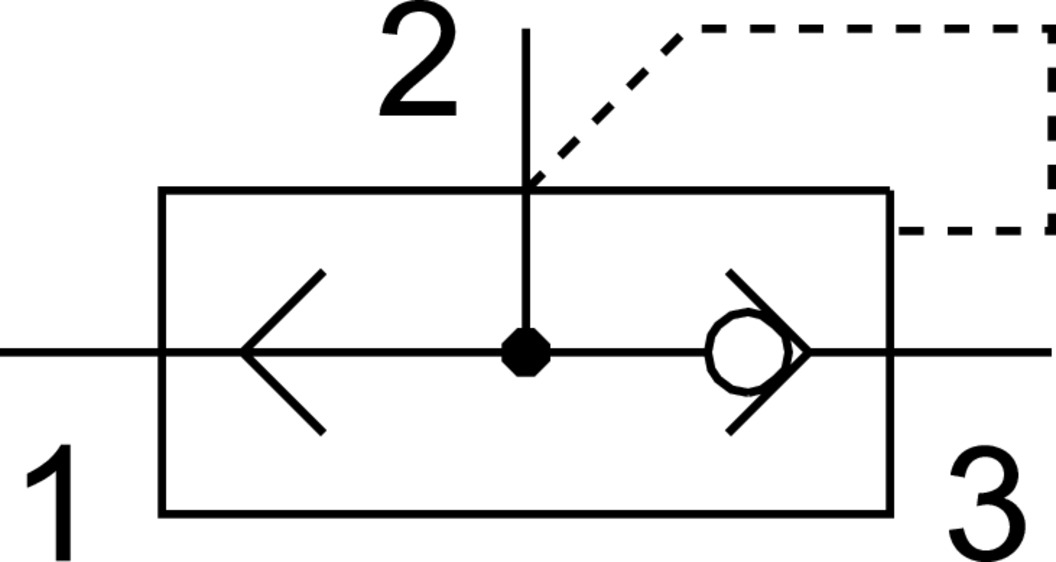

  • Symbol00991459
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature-20 °C ... 75 °C
  • Product weight710 g
  • Pneumatic connection, port 3G3/4
  • Note on materialsRoHS-compliant
  • Material sealsNBR

GTIN: 4052568000196

Valve function
Quick exhaust
Pneumatic connection, port 1
G3/4
Standard nominal flow rate, exhaust 0.6->0.5 MPa (6->5 bar, 87->72.5 psi)
7500 l/min
Operating pressure
0.5 bar - 10 bar

SEU_EN.PDF

Quick exhaust valve

Quick exhaust valve

(2280)

SKU 2280
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
