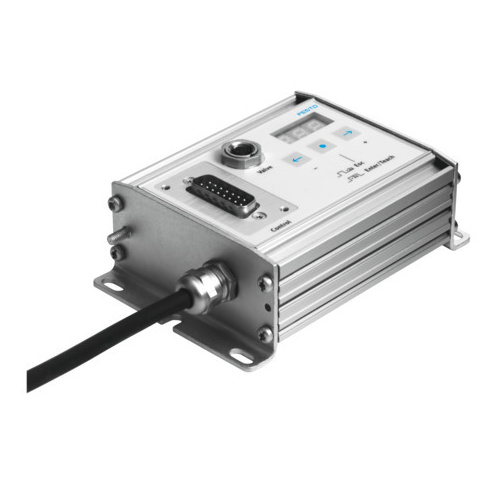

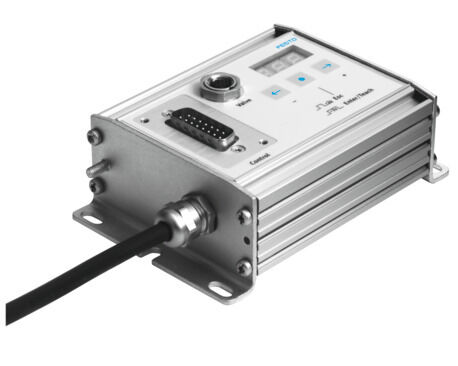

End position controllerSPC11-MTS-AIF

Technical Data End position controller SPC11-MTS-AIF

• Data backupFlash memory
• Control signalsRemote/teach input/left/right Input, position 1/2/3/4 Error-Ready output Output, position 1/2/3/4
• Display3 characters Red colour 7-segment display
• Operator controls3 keys Touch sensitive keyboard
• Fuse capacity of outputsElectronic Max. tripping current 500 mA All outputs
• Number of digital outputs5
• Number of digital inputs8
• Type of outputsTo IEC 61131-2 positive logic (PNP) No galvanic isolation
• Type of inputsTo IEC 61131-2 positive logic (PNP) No galvanic isolation
• Debounce time for inputs20 ms
• Max. current consumption with proportional valve1.1 A
• Max. current consumption without proportional valve70 mA
• Nominal operating voltage DC24 V
• Current consumption input4 mA
• Current rating per output100 mA
• Permissible voltage fluctuations+/-25%
• ApprovalRCM
• CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
• UKCA marking (see declaration of conformity)To UK RoHS instructions
• Continuous shock resistance to DIN/IEC 68 Part 2-82Tested to severity level 2
• LABS (PWIS) conformityVDMA24364-B2-L
• Relative air humidityNon-condensing
• Degree of protectionIP65 To IEC 60529
• Vibration resistance to DIN/IEC 68 Part 2-6Tested to severity level 1
• Ambient temperature0 °C ... 50 °C
• Product weight400 g
• Electrical connection operating voltage, inputs and outputs15-pin SUB-D Plug
• Electrical connection proportional valve7-pin
• Electrical connection encoder6-pin
• Cable length0.3 m
