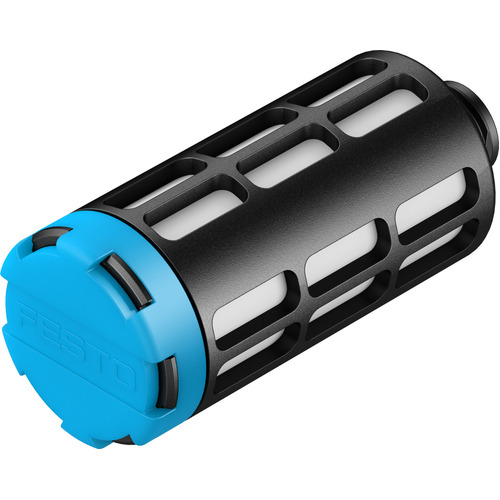

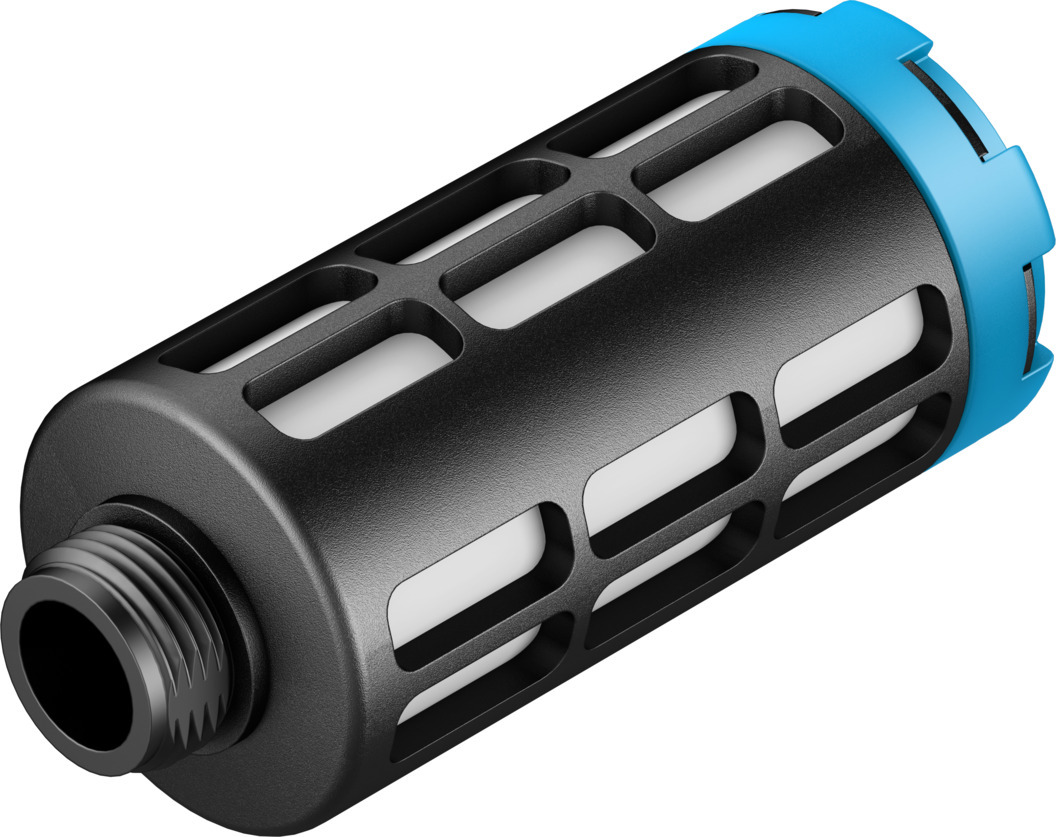

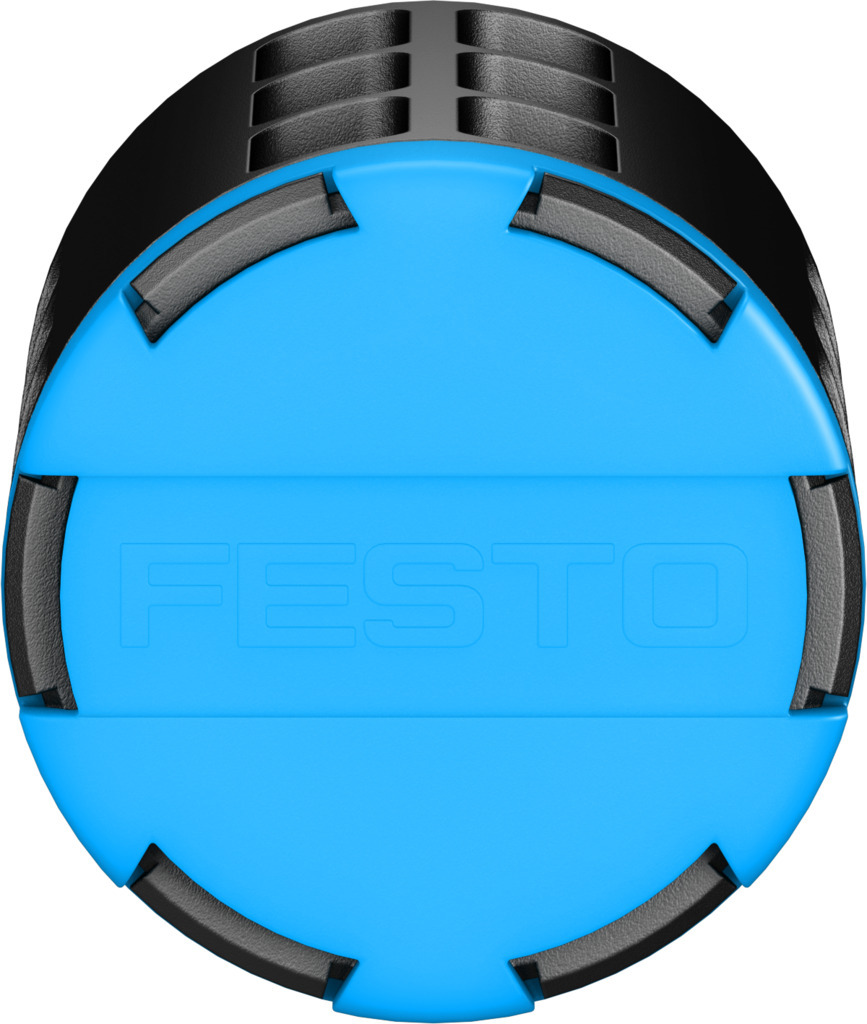

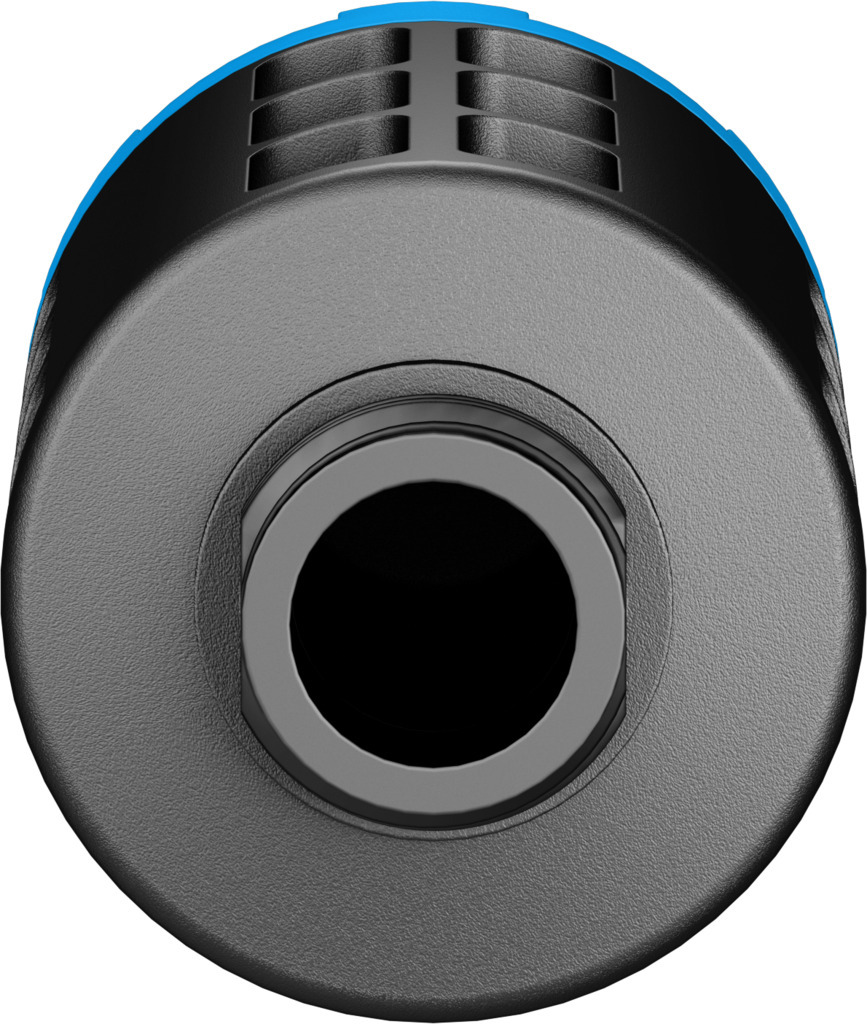

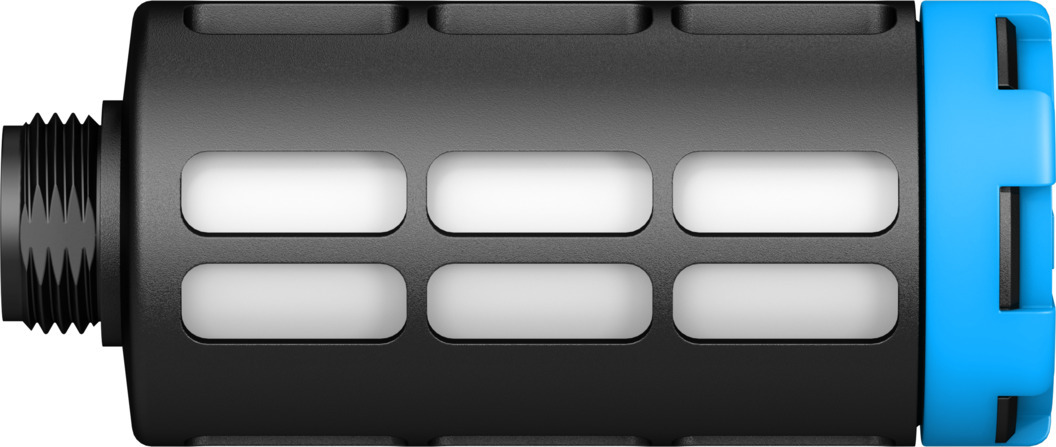

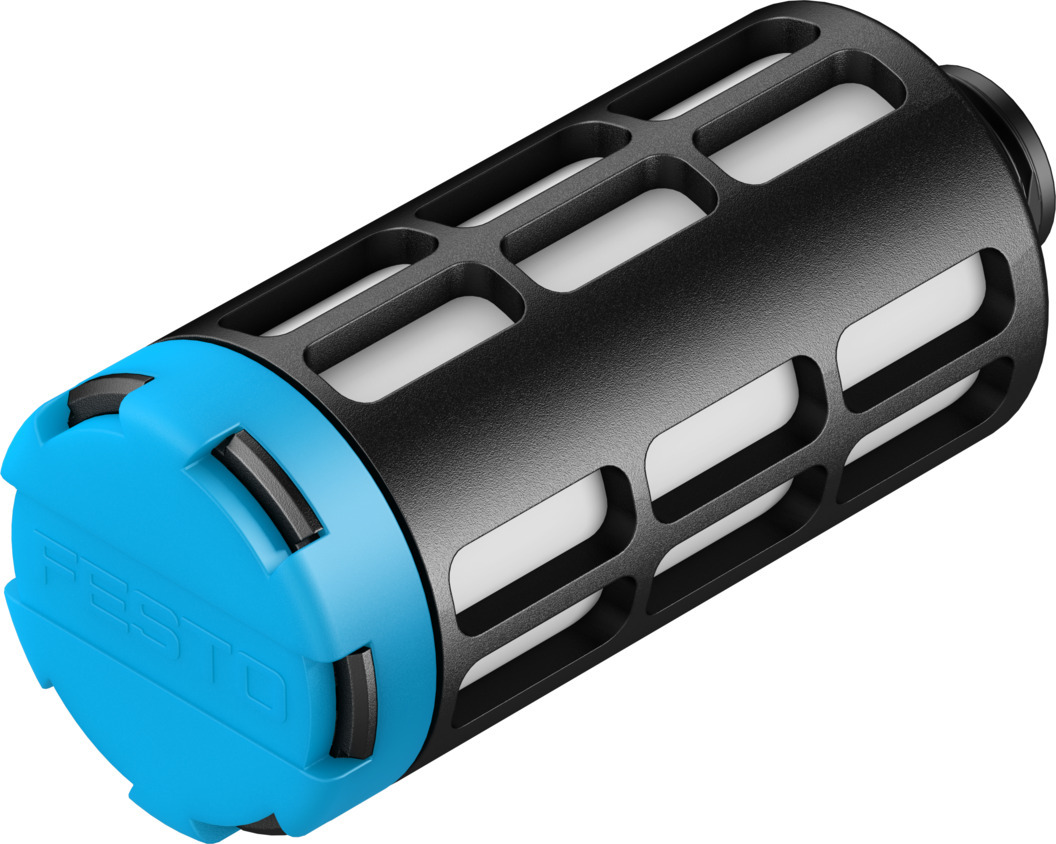

Silencer (x20 pack)

U-3/8-20

534224

Material shock absorber insert
PE
Pneumatic connection
G3/8
Sound pressure level
82 dB(A)

GTIN: 4052568048747

Technical Data

  • Mounting positionoptional
  • Size of pack20
  • Symbol00991473
  • Operating pressure0 MPa ... 1 MPa
  • Operating pressure0 bar ... 10 bar
  • Flow rate to atmosphere6000 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Sound pressure level82 dB(A)
  • Ambient temperature-10 °C ... 70 °C
  • Product weight29.6 g
  • Pneumatic connectionG3/8
  • Material shock absorber insertPE
  • Note on materialsRoHS-compliant

Downloads



U_EN.PDF

Technical data

Links

Spare parts



Material shock absorber insert PE

Pneumatic connection G3/8

Sound pressure level 82 dB(A)

Silencer

SKU 534224
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
