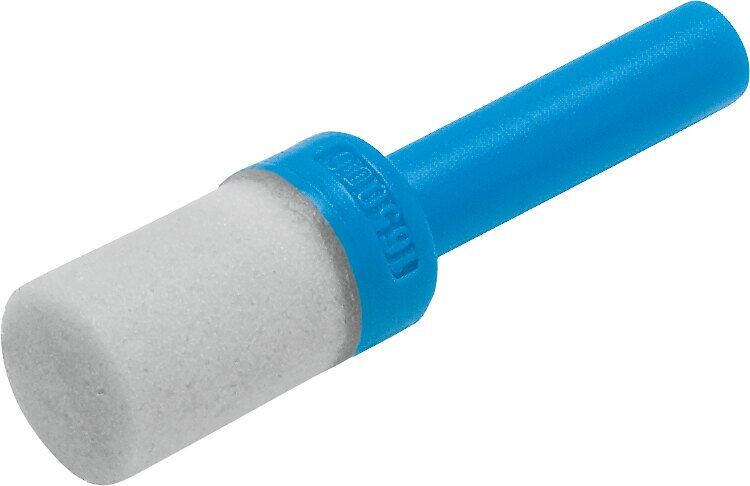

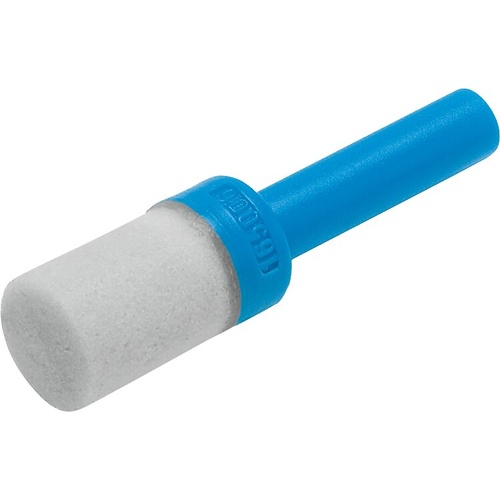

Silencer

UC-QS-4H

165006





GTIN: 4052568037093

Material shock absorber insert
Packaging unit
Pneumatic connection
QS-4
Sound pressure level
60 dB(A)



Technical Data

  • Mounting positionAny
  • Size of pack1
  • Symbol00991473
  • Operating pressure0 MPa ... 1 MPa
  • Operating pressure0 bar ... 10 bar
  • Flow rate to atmosphere350 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Sound pressure level60 dB(A)
  • Ambient temperature-10 °C ... 70 °C
  • Product weight0.5 g
  • Pneumatic connectionQS-4
  • Material shock absorber insertPackaging unit
  • Material screwed plugPackaging unit
  • Note on materialsRoHS compliant
SKU 165006
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
