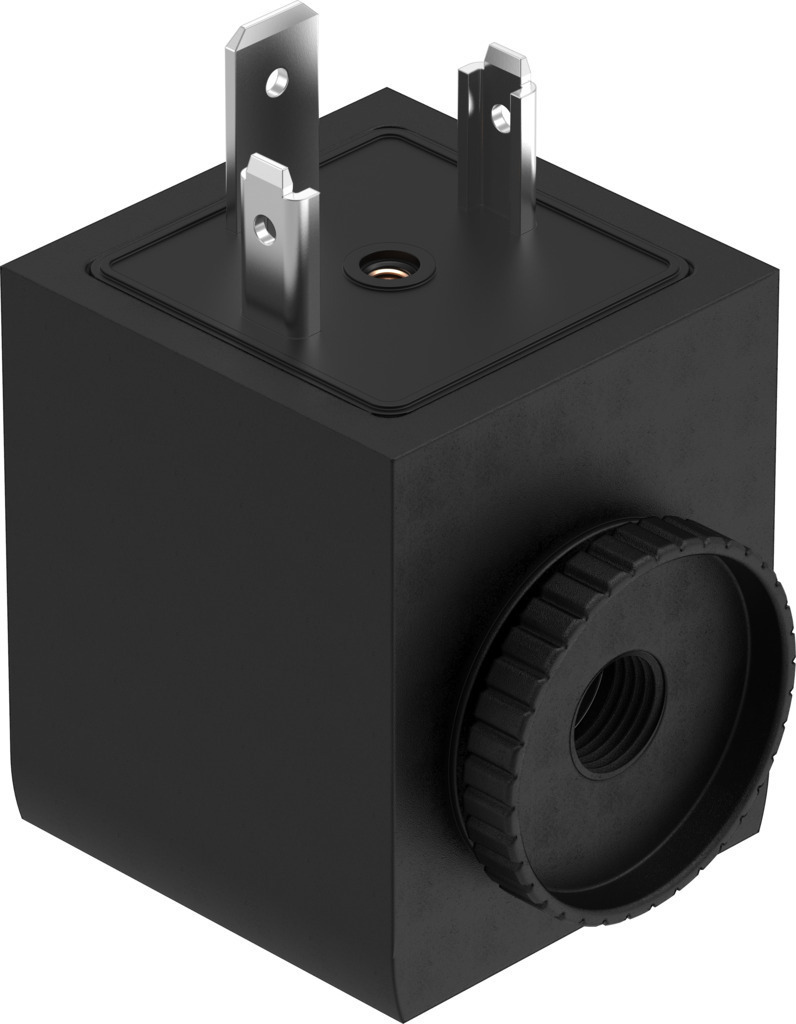

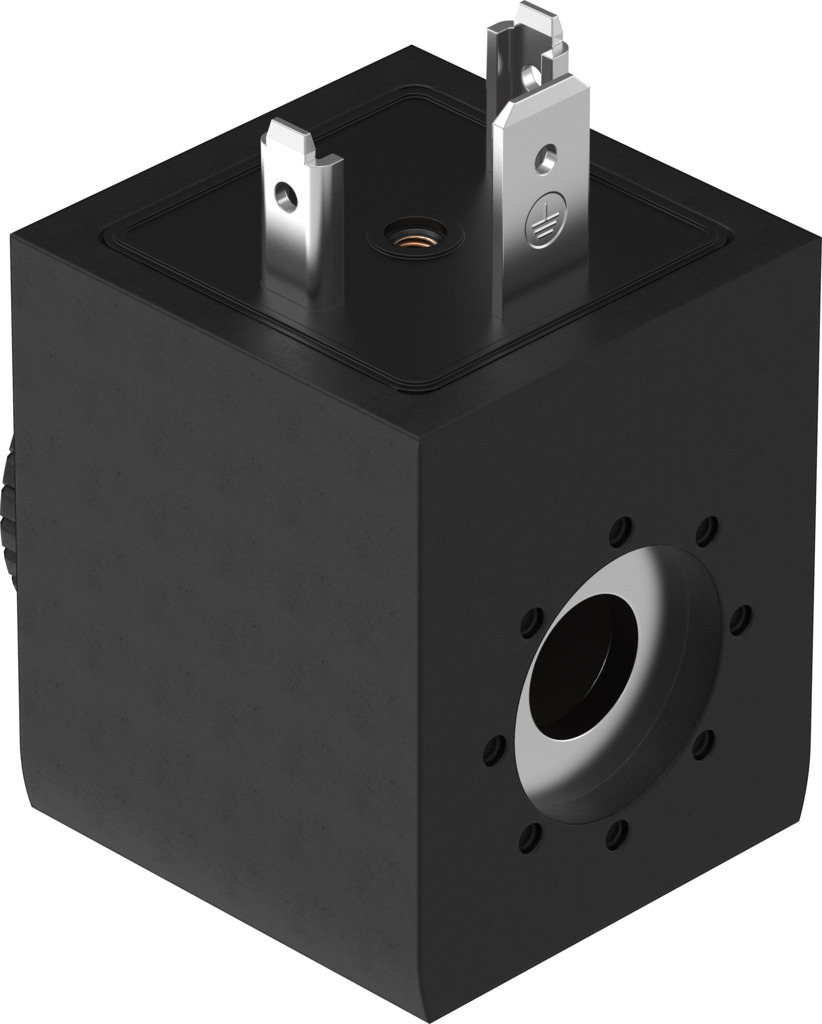

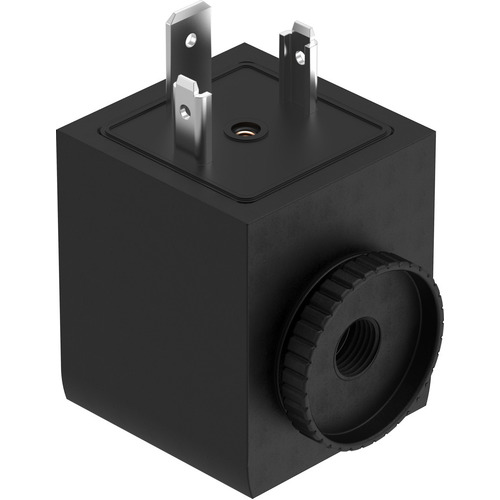

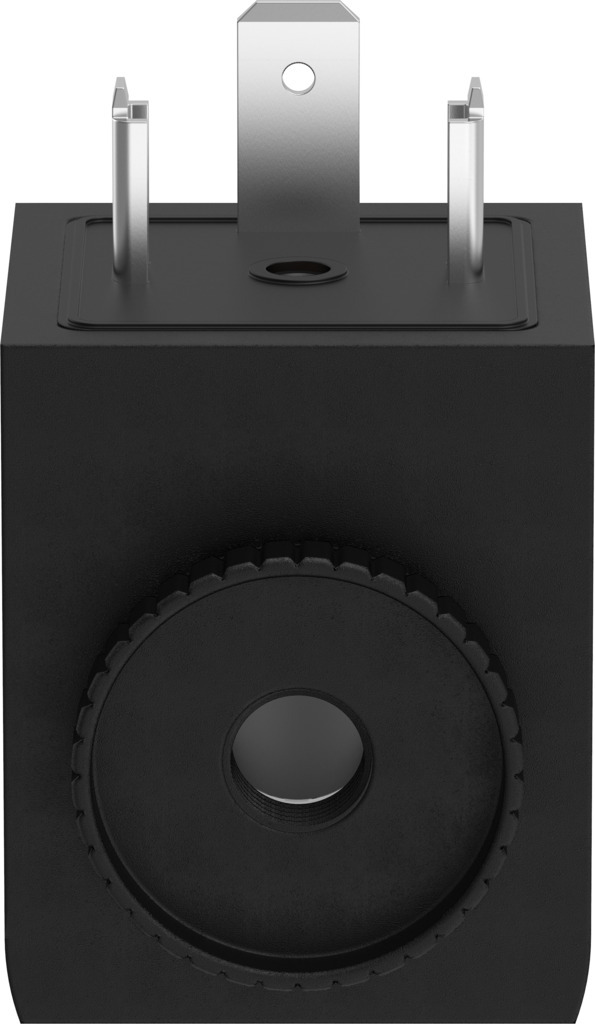

VACF-A-A1-16B Solenoid coil 110/120 V AC: 50/60 Hz, pick-up power 2.7 VA, holding power 1.9 VA

VACF-A-A1-16B

$29.88
RRP $33.50
SAVE $3.62 (11%)


Solenoid coil

Solenoid coil

VACF-A-A1-16B

8030826





GTIN: 4052568281045

Downloads



VACS_EN.PDF

Technical data

Links

Spare parts

Technical Data

  • Mounting positionoptional
  • Conforms to standardIEC 61010-1
  • Duty cycle100%
  • Insulation material classH
  • Characteristic coil data110/120 V AC: 50/60 Hz, pick-up power 2.7 VA, holding power 1.9 VA
  • Immunity to surge2.5 kV
  • Pollution degree3
  • Permissible voltage fluctuations+/- 10 %
  • Approvalc UL us - Recognized (OL)
  • Maritime classificationSee certificate
  • CE mark (see declaration of conformity)To EU Low Voltage Directive
  • CE marking (see declaration of conformity)To UK regulations for electrical equipment
  • Certificate issuing authorityDNVGL-TAA000011J UL MH18122
  • Restrictions for environmental and media temperature-20 - 50°C
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature-20 °C ... 50 °C
  • Degree of protectionIP65
  • Ambient temperature-20 °C ... 60 °C
  • Product weight82.4 g
  • Electrical connectionType A To EN 175301-803
  • Type of mountingVia knurled nut
  • Note on materialsRoHS-compliant
  • Material housingPA Steel
  • Material solenoid coilCopper Steel Thermoplastic
  • Material windingCopper

(8030826)

SKU 8030826
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
