FESTO

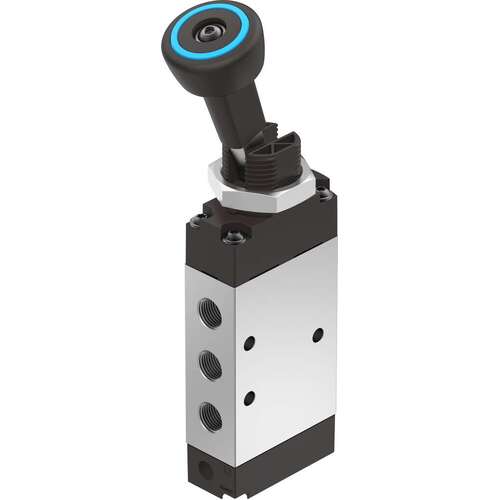

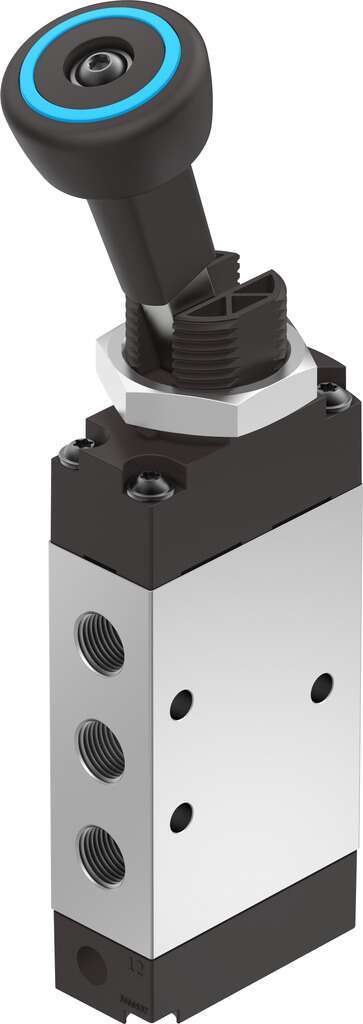

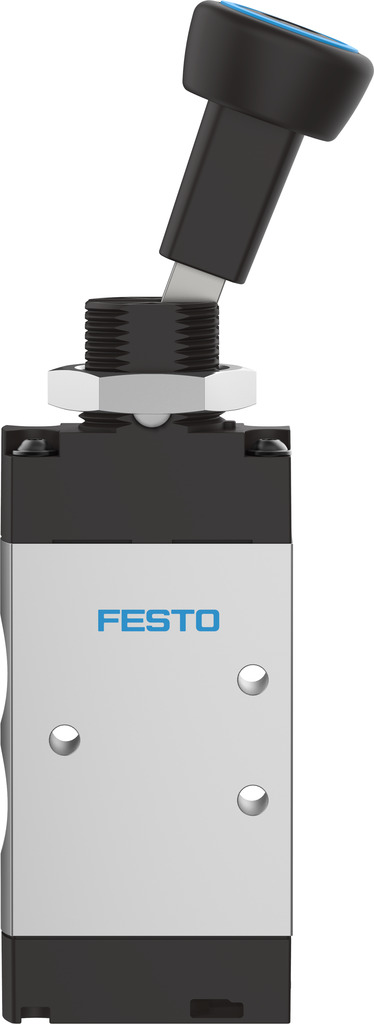

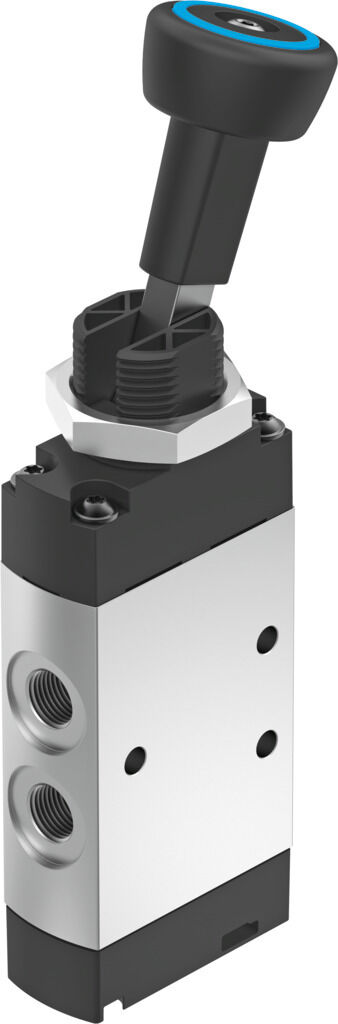

Toggle lever valve

VHEF-V-B52-G14

5300035

Valve function
5/2 bistable
Standard nominal flow rate (standardised to DIN 1343)
1200 l/min
Pneumatic connection, port 1
G1/4
Operating pressure
-0.95 bar - 10 bar
Construction width
20 mm

GTIN: 4052568422882

Technical Data

  • Valve function5/2 bistable
  • Type of actuationManual
  • Construction width20 mm
  • Standard nominal flow rate (standardised to DIN 1343)1200 l/min
  • pneumatic working portG1/4
  • Operating pressure-0.095 MPa ... 1 MPa
  • Operating pressure-0.95 bar ... 10 bar
  • DesignPiston gate valve
  • Nominal size7 mm
  • Exhaust-air functionWith flow control option
  • Instructions on useActuate manually only
  • Sealing principleSoft
  • Mounting positionoptional
  • Manual overrideDetenting
  • Type of pilotingDirect
  • Flow directionReversible

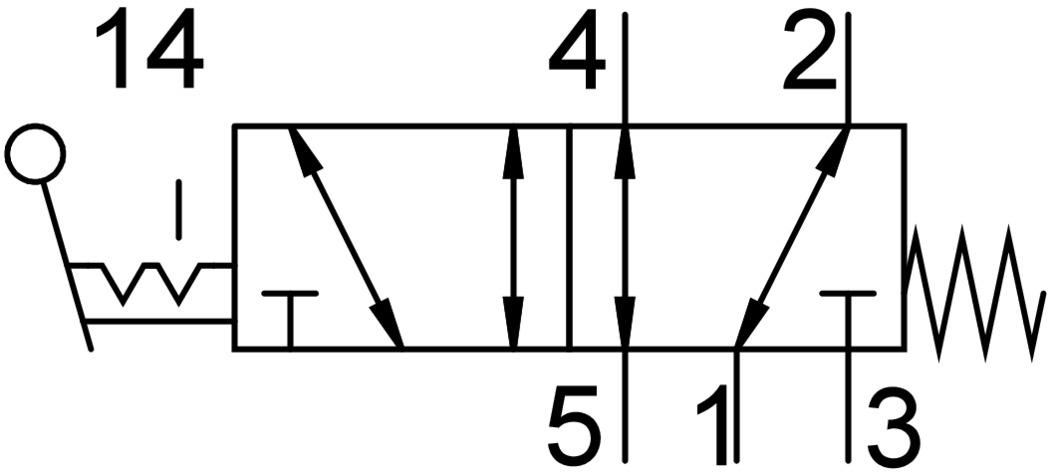

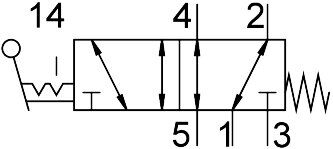

  • Symbol00995879
  • lapOverlap
  • Max. switching frequency0.5 Hz
  • Explosion protectionZone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature-10 °C ... 60 °C
  • Ambient temperature-10 °C ... 60 °C
  • Actuating torque1.1 Nm
  • Unlocking torque0.6 Nm
  • Max. force on actuation200 N
  • Max. lateral force on actuation140 N
  • Product weight240 g
  • Type of mountingWith through-hole
  • Pneumatic connection, port 1G1/4
  • Pneumatic connection, port 2G1/4
  • Pneumatic connection, port 3G1/4
  • Pneumatic connection, port 4G1/4
  • Pneumatic connection, port 5G1/4
  • Note on materialsRoHS-compliant
  • Material coverPA-reinforced
  • Material sealsNBR
  • Material housingAnodised wrought aluminium alloy
  • Material leverPA-reinforced
