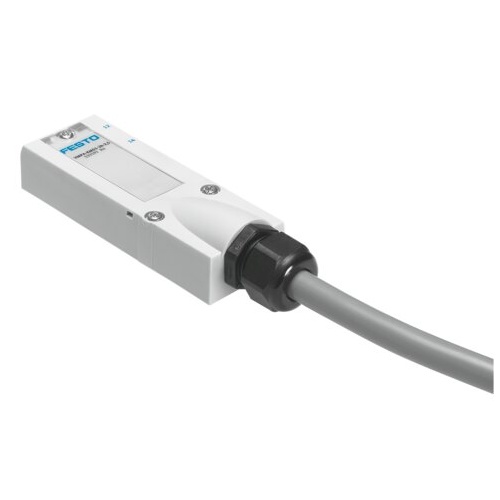

Connecting cable

Technical Data

• Based on standardDIN 41652
• Cable designationWithout inscription label holder
• Frequency of connection50
• Product weight1062 g
• Electrical connection 1, functionField device side
• Electrical connection 1, designAngular
• Electrical connection 1, connection typeSocket
• Electrical connection 1, cable outletAngled
• Electrical connection 1, connector systemSub-D
• Electrical connection 1, number of connections/cores25
• Electrical connection 1, used connections/cores25
• Electrical connection 1, type of mounting3x M3 screws
• Electrical connection 1, connection pattern00995643
• Electrical connection 2, functionController side
• Electrical connection 2, connection typeCable
• Electrical connection 2, connector systemOpen end
• Electrical connection 2, number of connections/cores25
• Electrical connection 2, used connections/cores25
• Operational voltage range DC0 V ... 30 V
• Nominal operating voltage DC24 V
• Permissible current load3 A
• Immunity to surge1 kV
• Cable length5 m
• Cable characteristicStandard
• Test conditions cableTest conditions on request
• Bending radius, fixed cable44.8 mm
• Bending radius, moving cable112 mm
• Cable fittingM20x1.5
• Cable diameter11.4 mm
• Cable diameter tolerance± 0.25 mm
• Cable structure25 x 0.34 mm²
• Nominal cross section conductor0.34 mm²
• Wire endsCut off bluntly
• Degree of protectionIP65 To IEC 60529
• Note on degree of protectionIn assembled state
• Ambient temperature-25 °C ... 80 °C
• Ambient temperature with moving cable-5 °C ... 70 °C
• CE mark (see declaration of conformity)In accordance with EU RoHS Directive
• UKCA marking (see declaration of conformity)To UK RoHS instructions
• LABS (PWIS) conformityVDMA24364-B2-L
• Note on materialsRoHS-compliant
• Pollution degree3
• Corrosion resistance class CRC2 - Moderate corrosion stress
• Material cable sheathPVC
• Cable sheath colourGrey
• Material housingPA
• Housing colourgrey
• Material union nutPA
• Material sealsCR NBR
• Material electrical contactGold-plated copper alloy
